Underground Water Mains Leak Detection in Chesterfield

Symptoms

A property in S41 was flagged by the local water authority after unusually high water consumption was detected on the supply. The mains stop cock is positioned to the front of the building, with the supply running into the cellar before feeding all outlets including the kitchen.

From the kitchen, a lead mains pipe runs across a courtyard to supply the gents toilet, with a suspected dead leg also running off that lead supply beneath the courtyard.

With the scale of underground pipework involved — including aged lead supply lines running beneath a tarmacked courtyard — a full water mains leak detection investigation was required to establish whether a leak existed, and if so, to pinpoint its location without unnecessary excavation.

The concern centred on the courtyard, where the lead supply and suspected dead leg ran beneath a tarmac surface, making any leak difficult to detect visually. The priority was to confirm unaccounted water loss and then trace the source precisely.

Methods Used

The investigation began at the meter, where flow monitoring confirmed significant unaccounted water loss with no demand active. Suspect leak noise was identified around the stop cock in the gents toilet serving the cold feed to the urinals and toilet.

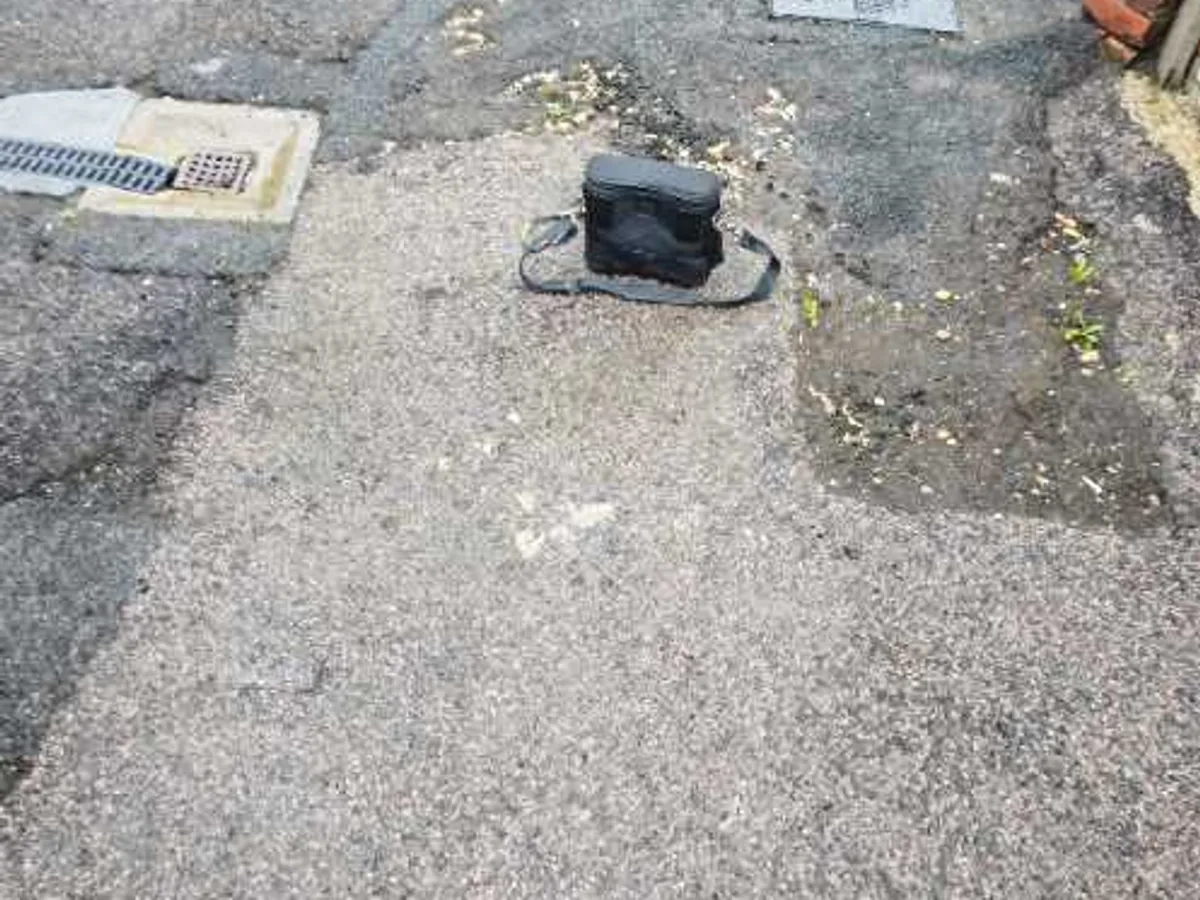

Tracer gas was then introduced into the supply and a full sweep of the site was carried out using specialist gas analysers. High concentrations of gas were detected emitting from the area of a tarmac patch in the middle of the courtyard.

Acoustic profiling was also used to profile the pipework, and results raised a further concern consistent with the same tarmac patch location.

Various techniques were applied to generate audible noise at the suspected leak point, allowing acoustic listening to corroborate the gas findings. With multiple methods converging on the same area, targeted excavation was carried out.

Water mains leak detection of this kind — involving buried lead pipework beneath a hard surface — requires this layered approach to avoid unnecessary excavation and to build confidence before breaking ground.

Investigation Process

1. 1
   High consumption flagged

   The local water authority detected unusually high water consumption and alerted the property. The mains stop cock and supply route into the cellar and across the courtyard were noted on arrival.

2. 2
   Flow metering at meter

   With no demand on the system, flow monitoring recorded an uncontrolled loss of 1 litre per 30 seconds, confirming an active leak was present.

3. 3
   Suspect noise at gents stop cock

   Acoustic listening identified suspect leak noise around the stop cock in the gents toilet serving the cold feed to the urinals and toilet.

4. 4
   Tracer gas introduced and site swept

   Tracer gas was purged into the supply and a full sweep of the site was performed using specialist gas analysers. High gas levels were detected emitting from a tarmac patch in the middle of the courtyard.

5. 5
   Acoustic profiling and noise generation

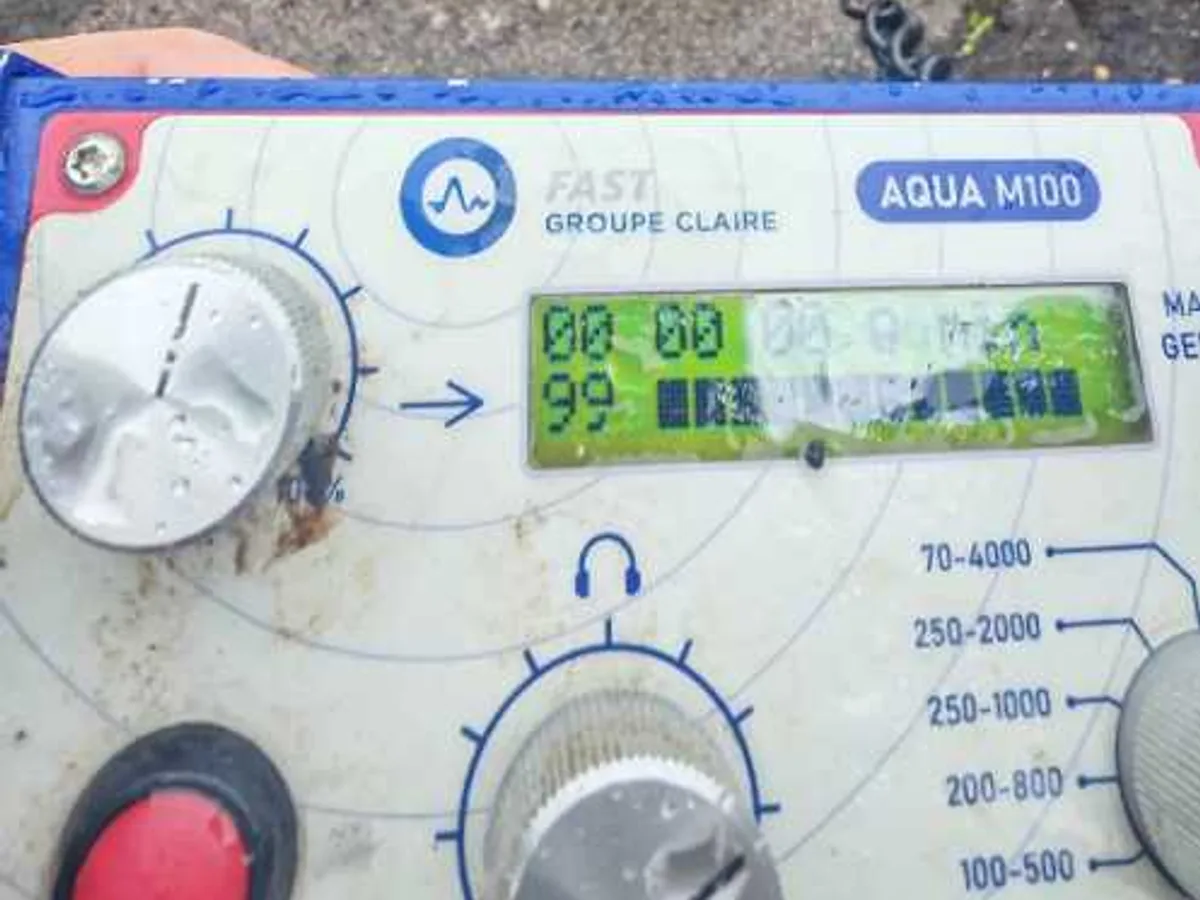

   Acoustic correlation profiling raised a concern consistent with the same tarmac patch. Various techniques were used to generate audible noise at the suspected leak point to further corroborate the findings.

6. 6
   Excavation and leak exposed

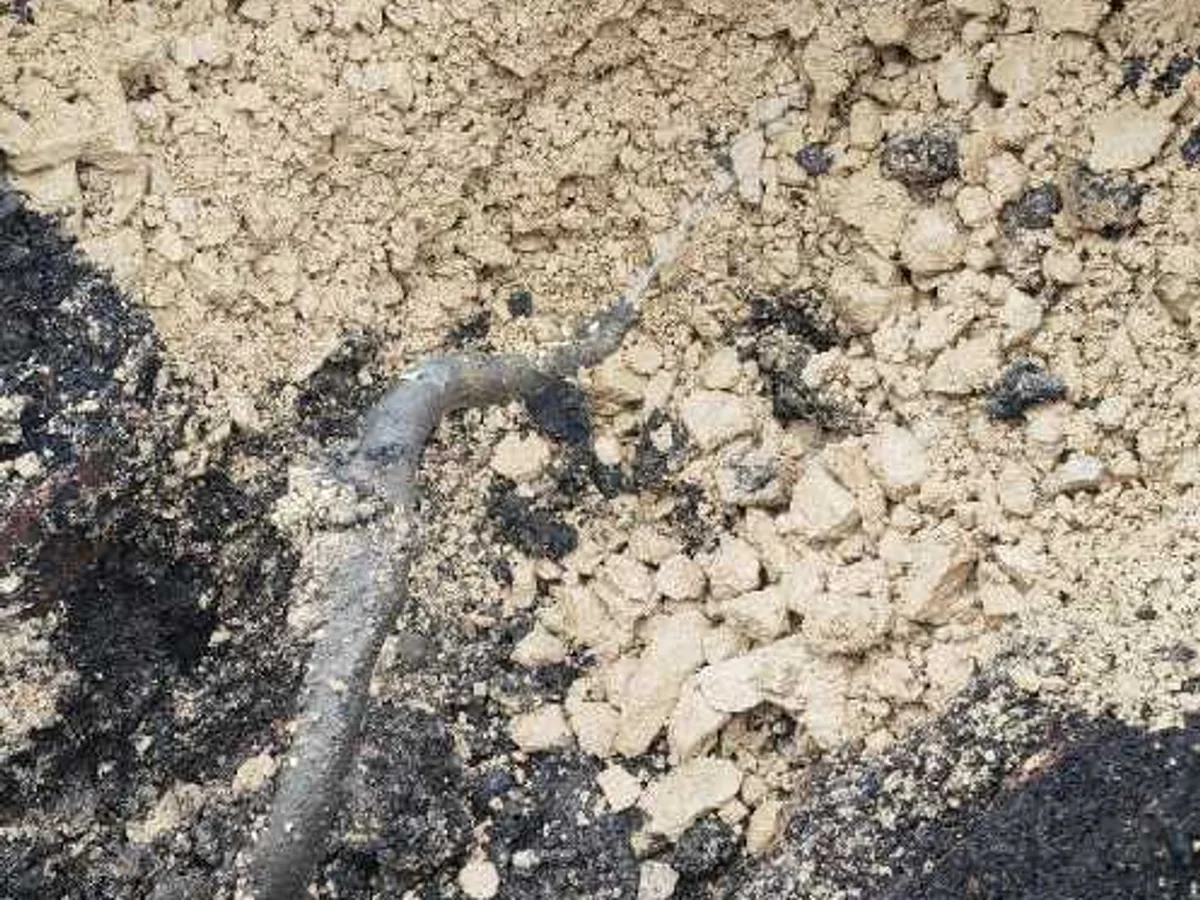

   Excavations were made at the identified area. The leak was found to be coming from a damaged lead supply pipe, believed to be on the suspected dead leg running beneath the courtyard.

7. 7
   Damaged supply capped and pressure tested

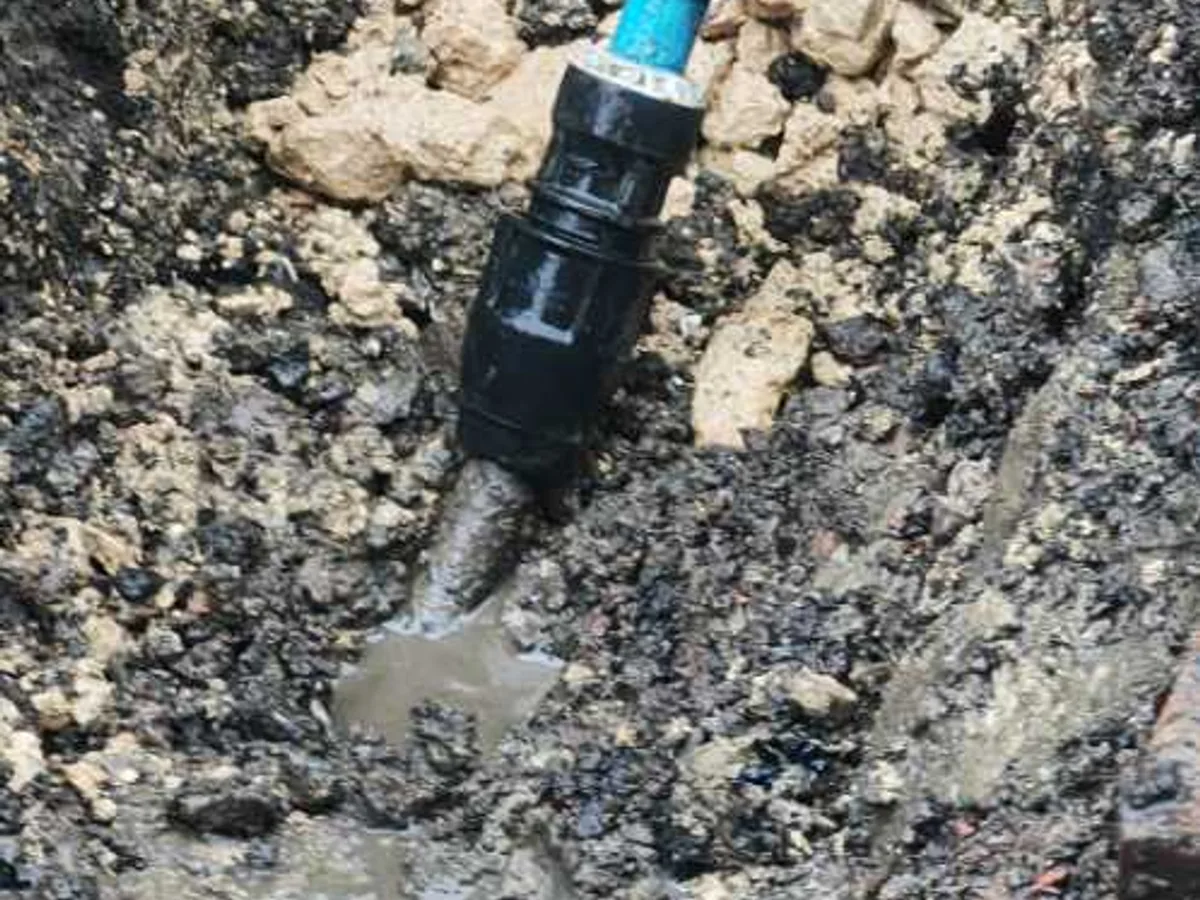

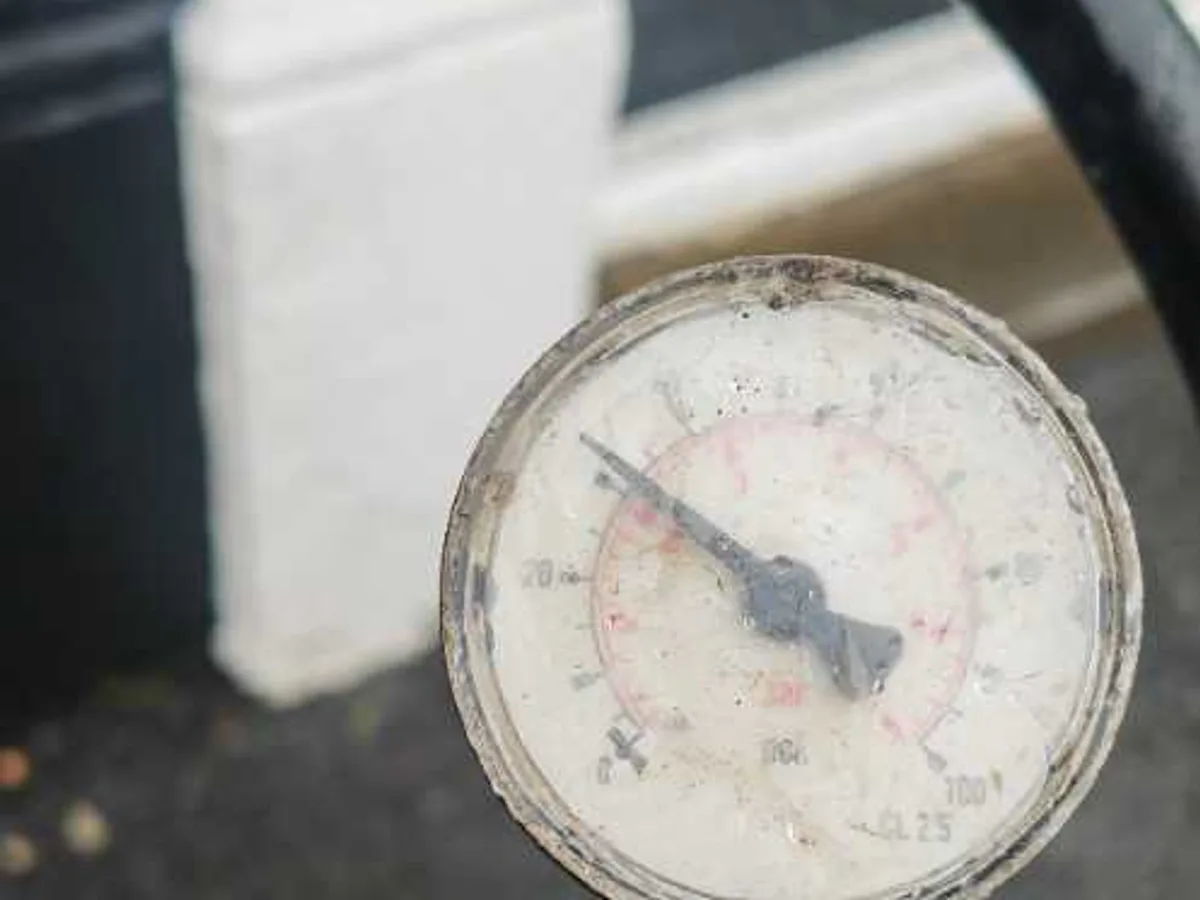

   The damaged lead supply was capped off using a specialist transition coupler and 25mm cap end. A pressure retest confirmed no further loss, and with the mains reinstated, no further usage was recorded.

Result & Outcome

Excavation at the courtyard tarmac patch exposed a damaged lead supply pipe, identified as being on the suspected dead leg running beneath the courtyard. The damage was causing the sustained unaccounted water loss recorded at the meter. The supply was correctly capped off using a specialist transition coupler and 25mm cap end.

A pressure retest following the repair confirmed no further pressure loss. With the mains supply reinstated, no further usage was recorded at the meter, confirming the system was now sound. The precision with which the leak was located — narrowed to a specific tarmac patch in the courtyard — meant excavation was limited to the necessary area.

This water mains leak detection outcome leaves the system operational with no active loss. It is noted that if further leaks become present in future, it may be prudent to repipe the gents toilet from within the cellar, which would make the existing lead supply beneath the courtyard redundant. No further recommendations are required at this time.
