Underground Water Mains Leak Detection in Taunton

Symptoms

A property in TA2 — a farmhouse served by a private water mains supply — had a suspected leak on the underground pipework feeding both the house and a set of taps in the farm buildings. The water meter, located approximately 300 metres away along a road near some fields, was showing a continuous leak rate.

With isolation points at the meter, the farmhouse and the farm buildings, the system configuration suggested the leak was somewhere along the buried run between the meter and the buildings.

The incoming supply pressure at the time of testing was approximately 3.5 bar, and the mains pipe serving the site was identified as old 1-inch black alkathene — a material known to become brittle with age. The buried route of this pipe was not immediately clear, which is a common complicating factor in water mains leak detection on rural and agricultural sites where pipework can run considerable distances without records.

The visible symptom was the meter continuing to register flow regardless of isolation at the buildings, confirming the leak was in the buried section of the supply between the meter and the property.

Methods Used

The investigation began by systematically closing the isolation points at both the farm buildings and the farmhouse to confirm that the meter was still registering flow with all end-points shut off. This confirmed the leak was in the buried mains supply rather than inside any of the buildings.

The engineer then walked the route from the buildings back toward the meter to attempt to trace the likely path of the buried pipe, and identified a heavily waterlogged area approximately 100 metres from the meter — a strong physical indicator of a leak point.

With a suspected location identified, the compressor was connected to the water feed at the farm building and the house supply was isolated, allowing air to be introduced into the line under pressure. This pressure test confirmed the leak within the waterlogged area.

Water mains leak detection on a site like this — with a 300-metre buried run across agricultural land and no pipe records — requires combining visual assessment with active pressure testing to narrow the excavation area and avoid unnecessary ground disturbance.

Investigation Process

1. 1
   Isolation points closed

   All isolation points at the farmhouse and farm buildings were closed. The meter was observed still showing a leak rate, confirming the fault was in the buried mains supply.

2. 2
   Route walked, waterlogged area identified

   The engineer walked the route from the buildings back toward the meter to establish the likely path of the buried pipe. A heavily waterlogged area was found approximately 100 metres from the meter.

3. 3

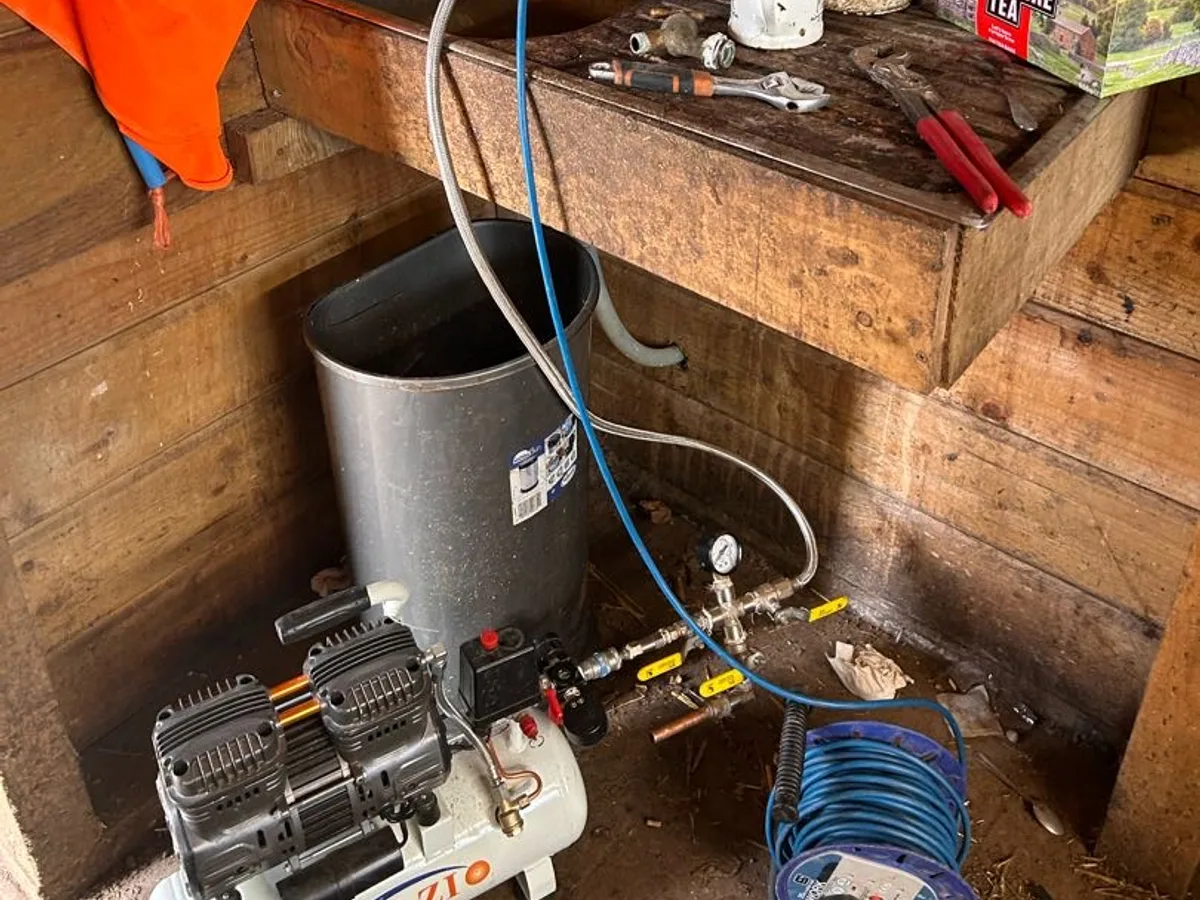

   Compressor connected, air introduced

   The compressor was connected to the water feed at the farm building and the house was isolated. Air was introduced into the line and the leak was confirmed within the waterlogged area.

4. 4
   Land stripped back by excavator

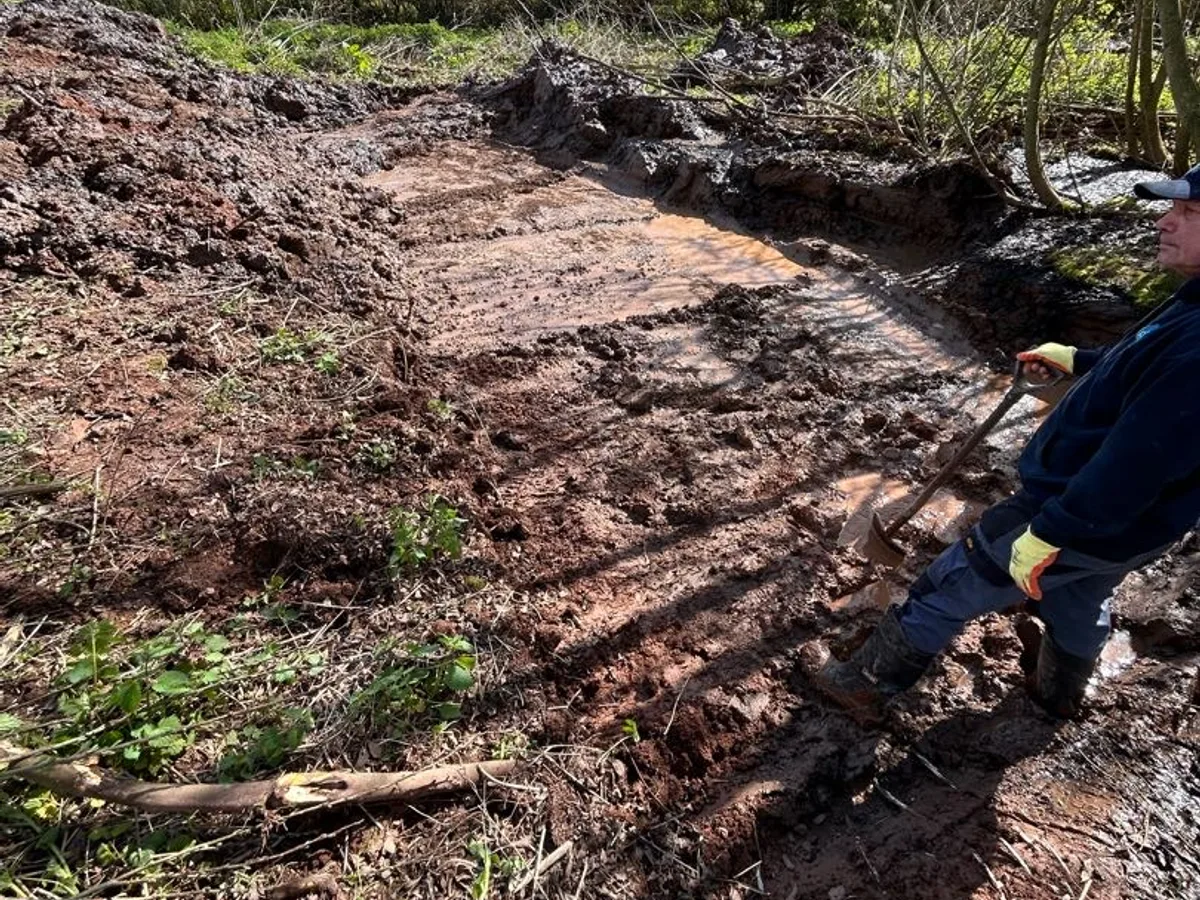

   The owner used an excavator to remove the accumulated water and mud, exposing the 1-inch black alkathene mains pipe at the leak location.

5. 5
   Leaking fitting and pipe section replaced

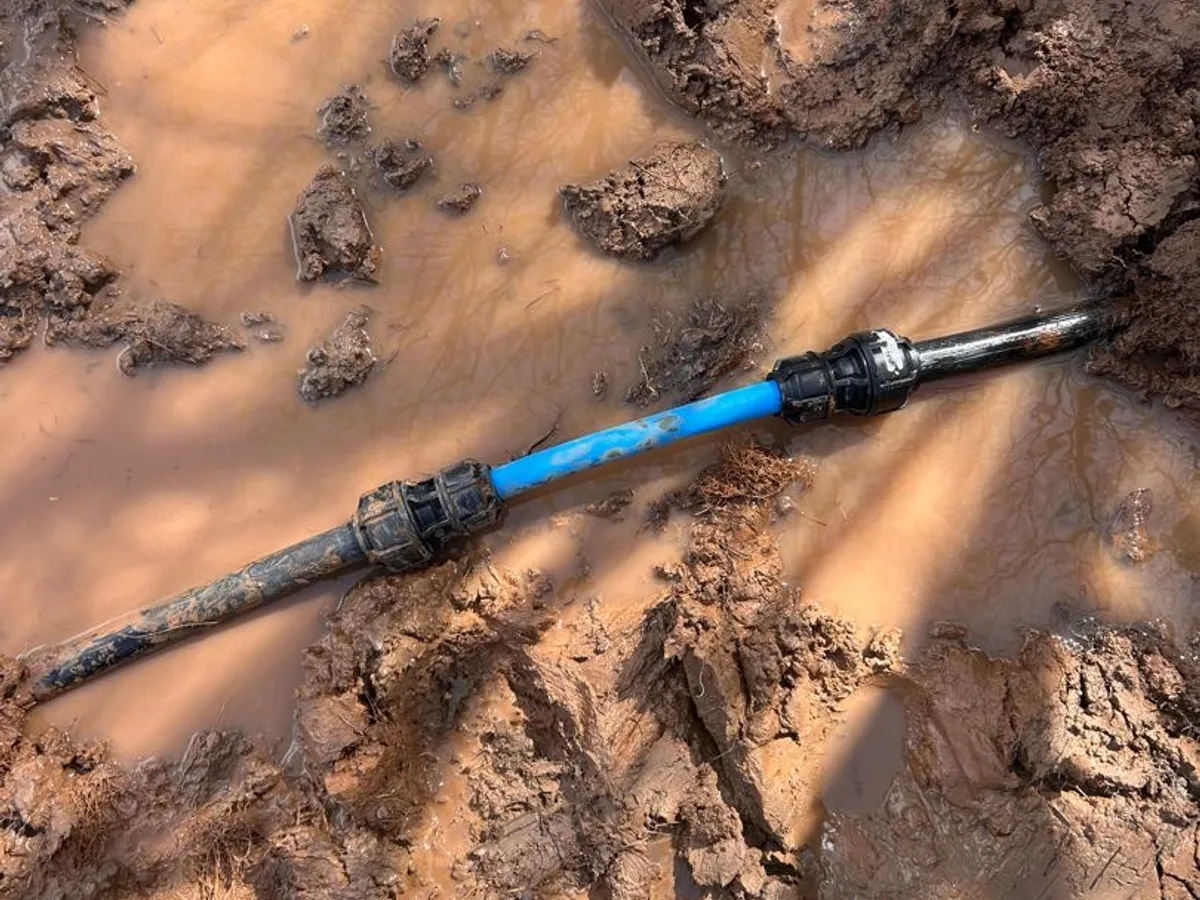

   The correct fittings were sourced and the leaking fitting along with a section of pipe was removed and replaced with new. The mains pipework was then tested.

Result & Outcome

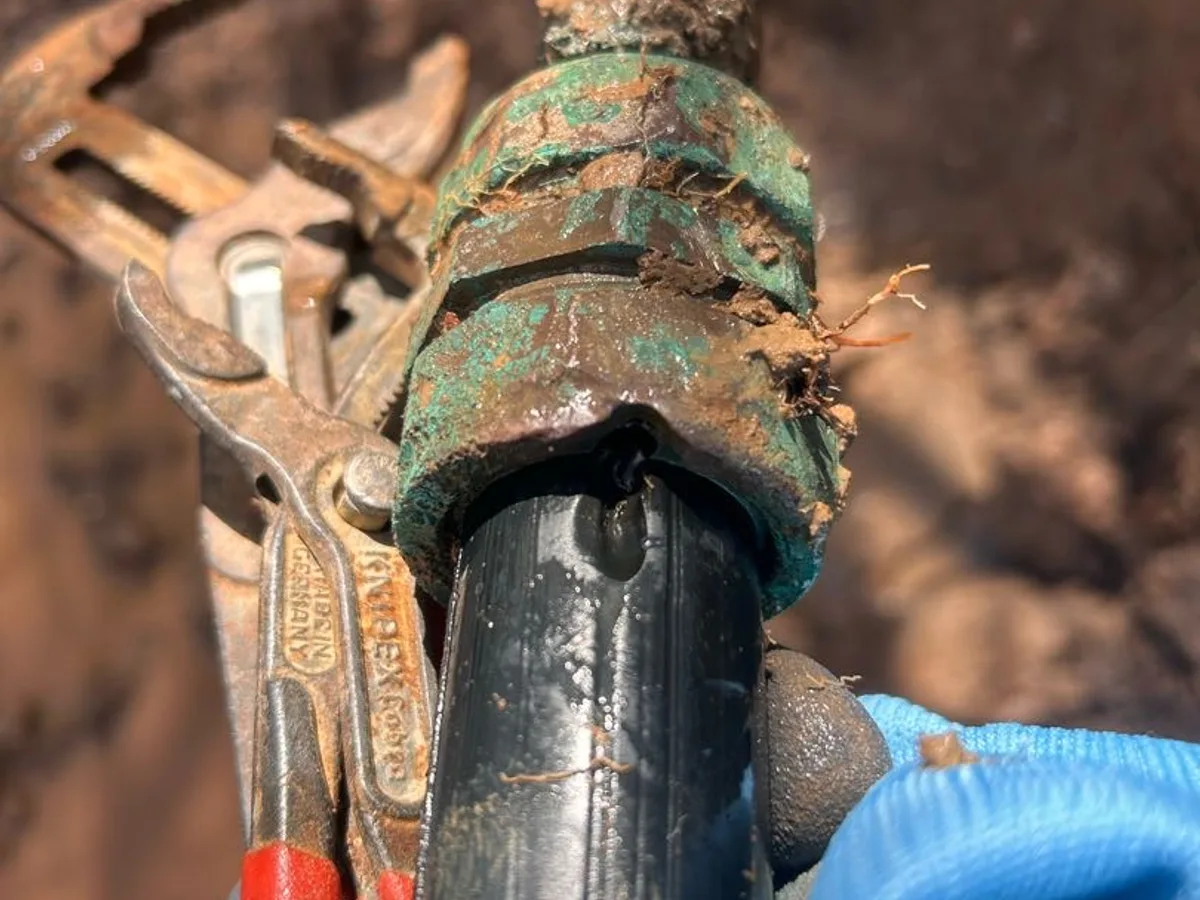

The leak was located in the waterlogged ground approximately 100 metres from the water meter, within the buried run of 1-inch black alkathene mains pipe. Once the excavator had cleared the saturated soil and exposed the pipework, the leaking fitting and an adjoining section of pipe were removed and replaced with new, and the repaired mains was tested to confirm it was holding.

For a water mains leak detection job of this scale — 300 metres of unmarked buried pipe across agricultural land — the combination of systematic isolation and air pressure testing meant the excavation could be targeted directly at the fault rather than requiring speculative digging across a wide area. The waterlogged ground surface had already been pointing to the right zone, and the pressure test confirmed it.

The pipe is old black alkathene, which becomes brittle over time and is susceptible to further failures. If additional leaks develop on this supply, a full mains replacement should be considered rather than repeated individual repairs.
