Underground Water Mains Leak Detection in Dinmore

Symptoms

A property in HR4 was losing water from the cold mains supply, with flow visible at the meter even when no water was being used inside. With the internal stopcock turned off, flow at the meter continued — a clear sign that the leak was located on the external section of the supply pipe, between the meter and the point where the pipe enters the building.

The heating system, fed by a combination boiler, had required no top-ups in recent months, which ruled out any involvement of the heating circuit and focused attention entirely on the cold mains.

External mains leaks of this kind can go unnoticed for some time, particularly when the pipe runs beneath soft ground or landscaping where surface water may drain away without obvious pooling. In this case there was no report of visible wet patches, meaning the leak was concealed underground and required specialist investigation to locate precisely.

Water mains leak detection in situations like this depends on systematic elimination — first confirming the external pipe is at fault, then using acoustic and tracer methods to pinpoint the exact position before any ground is disturbed.

Methods Used

The investigation began with a flow test at the meter to establish that a leak was active, followed by pressure testing to isolate which section of the supply was responsible. The external cold mains failed a 3.5 bar pressure test within five minutes, while the internal cold mains held pressure at 3.5 bar for twenty minutes — confirming the fault lay in the external pipe between the meter and the building.

Acoustic correlation was then used to identify the most likely zone, producing a high reading adjacent to the boundary wall and front gate. Tracer gas investigation was carried out in the same area and returned a high reading at the same location, providing strong convergent evidence before any excavation was attempted.

This layered approach — pressure testing to isolate the section, acoustics to narrow the zone, tracer gas to confirm — is standard practice in water mains leak detection and avoids unnecessary digging. Once both methods pointed to the same spot, excavation was carried out with confidence, exposing the 1/2" lead supply pipe at that location.

Investigation Process

1. 1
   Flow test at meter

   On arrival, a flow test at the water meter showed flow was present. With the internal stopcock turned off, flow continued, indicating the leak was on the external mains.

2. 2
   Pressure test — external cold mains

   The external cold mains was pressure tested at 3.5 bar for five minutes. It failed, confirming an active loss on that section.

3. 3
   Pressure test — internal cold mains

   The internal cold mains was pressure tested at 3.5 bar for twenty minutes and passed, eliminating the internal pipework from the investigation.

4. 4

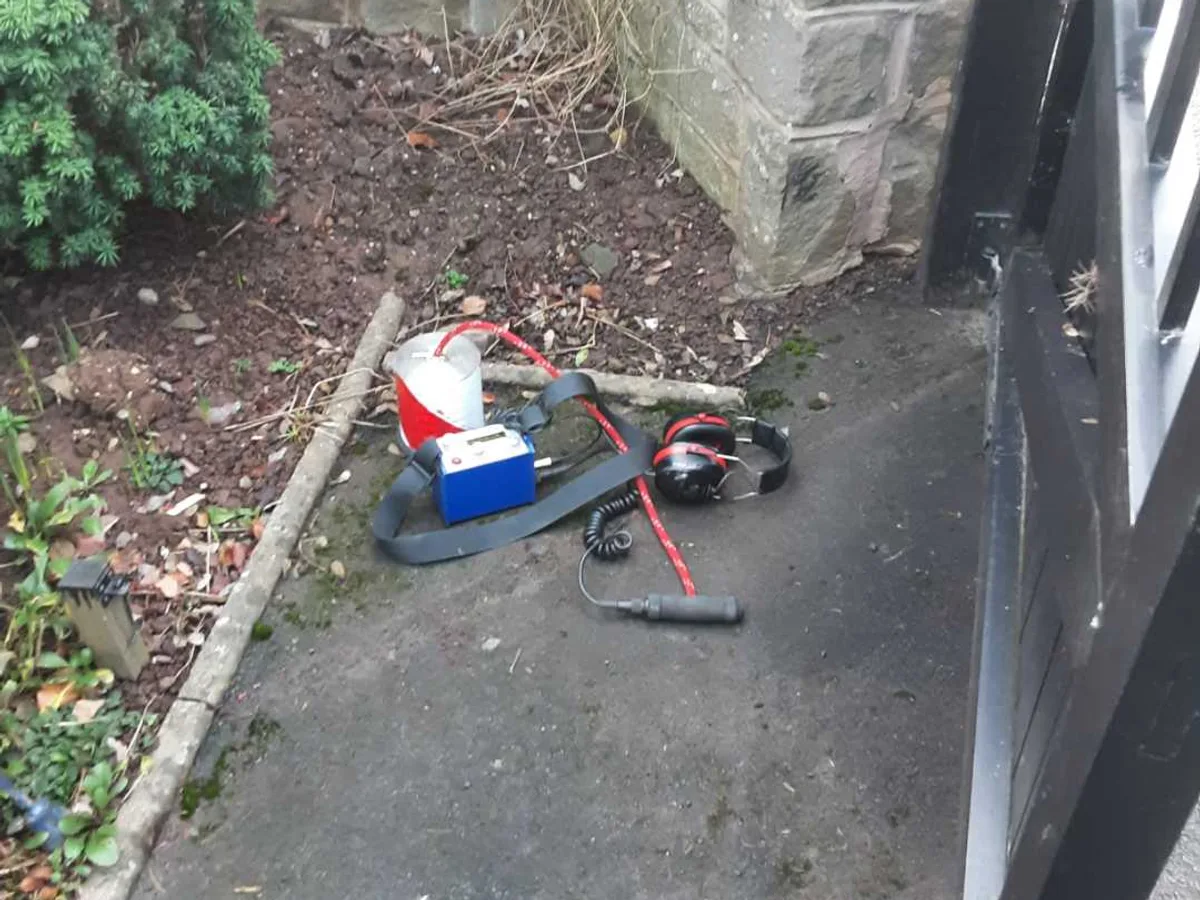

   Acoustic investigation

   Acoustic correlation equipment was used along the external mains route. A high reading was recorded adjacent to the boundary wall and front gate.

5. 5

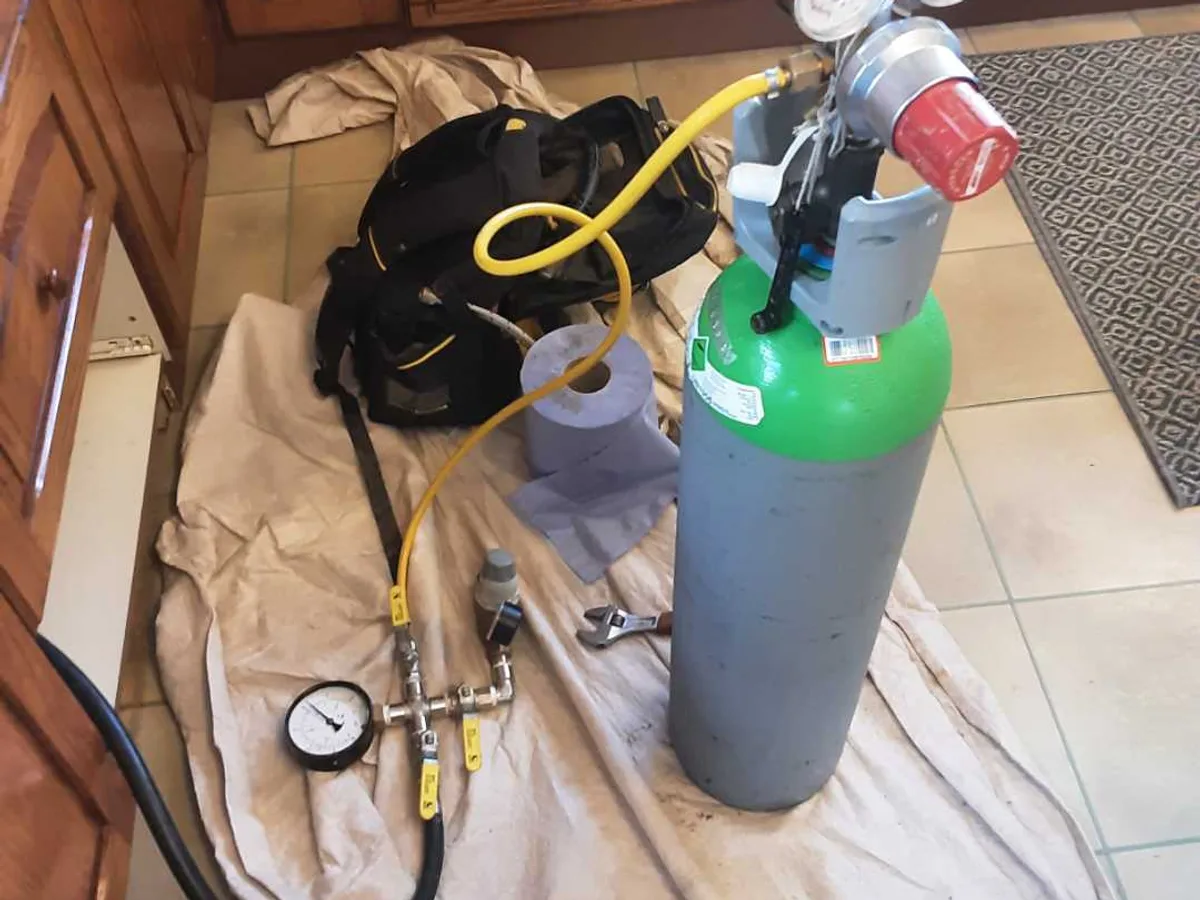

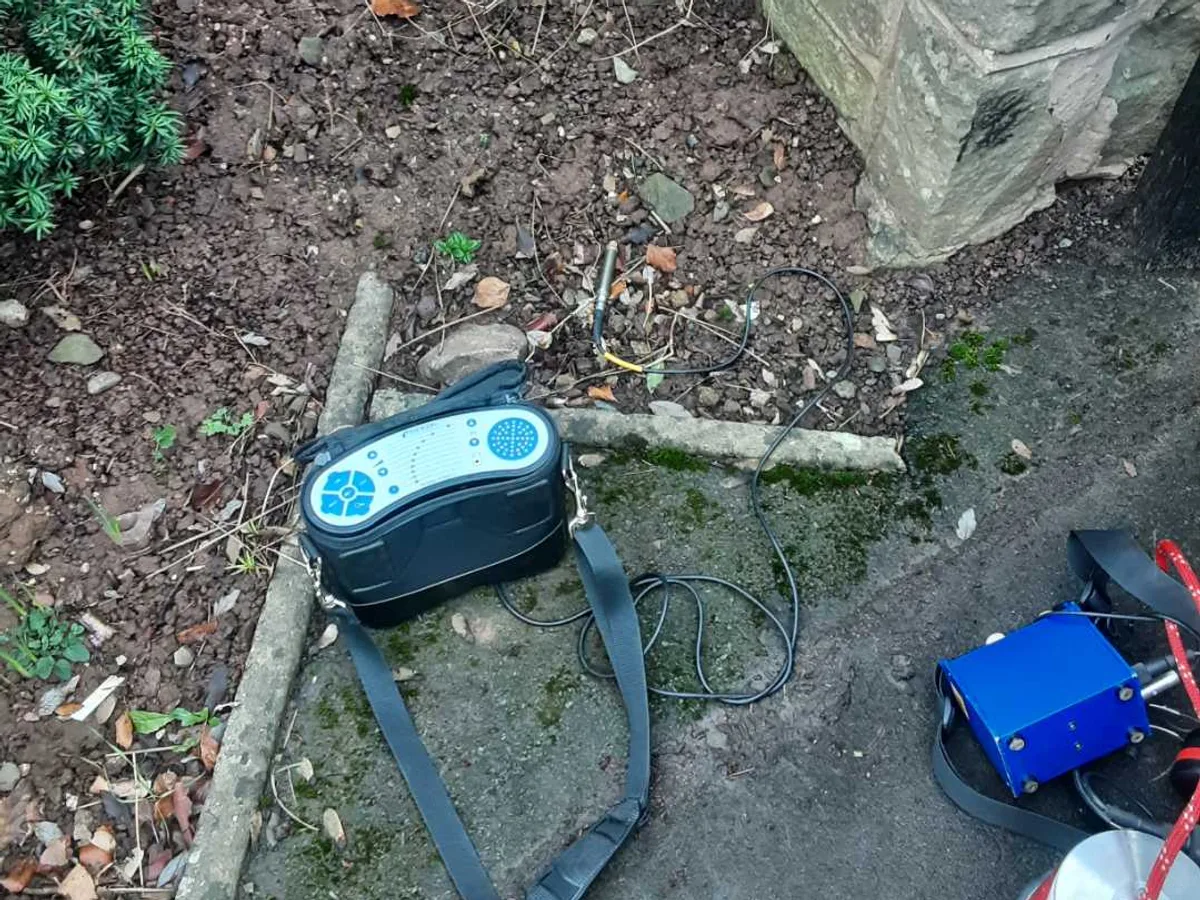

   Tracer gas investigation

   Tracer gas was introduced to the pipe and detected at surface level. A high reading was returned at the same location identified by the acoustic equipment.

6. 6

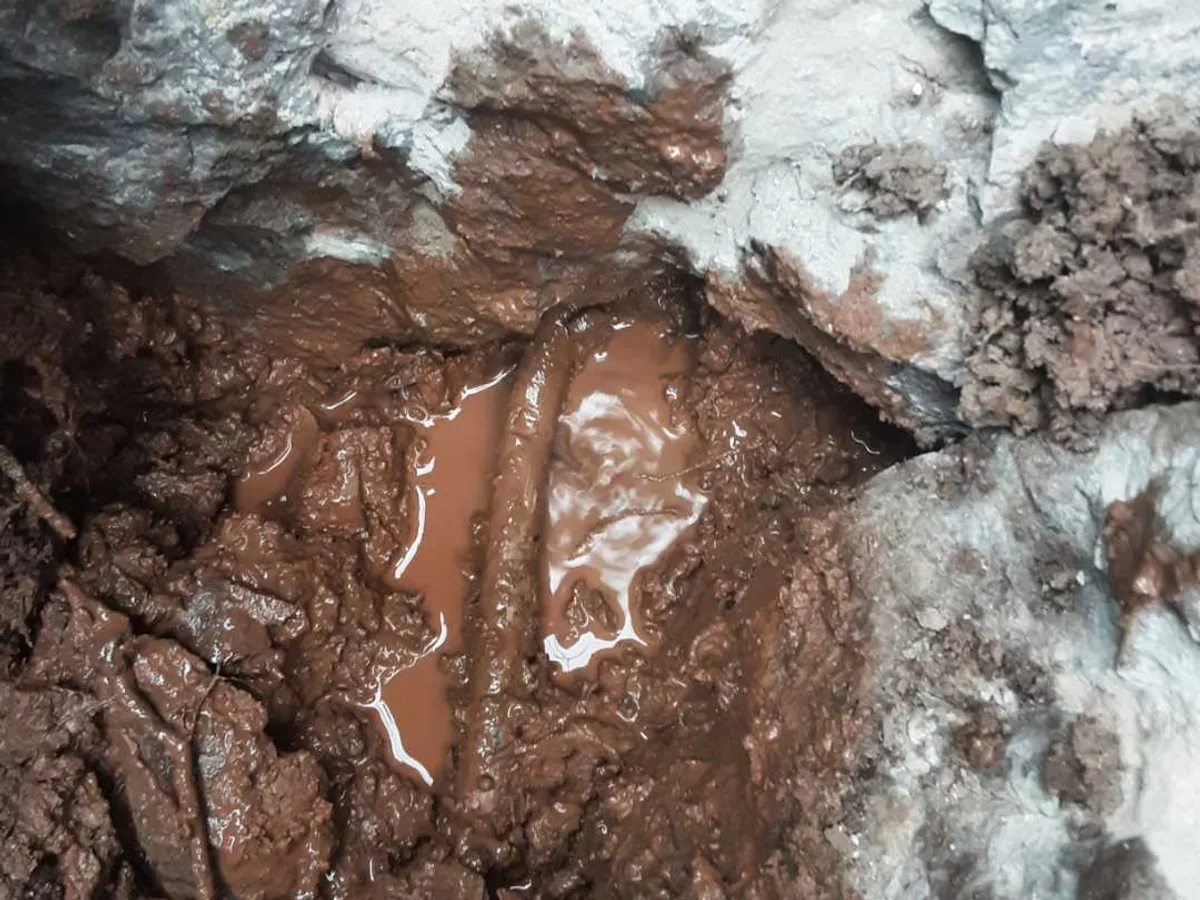

   Excavation and identification

   Ground was opened at the indicated location. The 1/2" lead mains supply pipe was exposed and found to be damaged at that point.

7. 7
   Materials collected and repair carried out

   Materials were collected from a supplier. The damaged section of lead pipe was repaired using two transition couplings and a short length of 20mm MDPE pipe.

8. 8
   Post-repair flow test

   A further flow test at the meter showed no flow, confirming the leak had been stopped.

9. 9
   Post-repair pressure test

   The external cold mains was pressure tested again at 3.5 bar for twenty minutes and passed, verifying the integrity of the repair.

Result & Outcome

The leak was located in the 1/2" lead supply pipe adjacent to the boundary wall and front gate, at the point where acoustic and tracer gas readings converged. Excavation confirmed the pipe had been damaged at that position. The damaged section was cut out and replaced using two transition couplings and a short length of 20mm MDPE pipe, bridging from the existing lead either side.

Post-repair testing confirmed a clean result: no flow was detected at the meter and the external mains held 3.5 bar for twenty minutes without loss. For a water mains leak detection job carried out on a lead supply, this outcome also highlights a longer-term consideration — the lead pipe remains in the ground either side of the repair, and relay of the full mains in a modern material is recommended for the future.

The recommendation to relay the lead mains when the opportunity arises is worth acting on. Lead supply pipes are ageing infrastructure and, beyond the leak risk, carry regulatory and water quality implications. The repair restores supply now; full relay would address the pipe condition permanently.
