Central Heating Leak Detection in Bracknell

Symptoms

At a property in SL5, the heating system was found to have lost all pressure — a clear sign that water was escaping somewhere within the circuit. With no pressure remaining in the system, the heating could not function, and the source of the loss needed to be identified before any repair could take place.

Central heating leak detection was required to trace the fault and establish what had failed.

Visual inspection alone was insufficient to identify the leak location, as the pipework runs beneath the floor. The loss of pressure pointed to a significant breach somewhere in the buried pipework, but the exact position required targeted acoustic testing to pinpoint.

Methods Used

The investigation began with a visual inspection of the heating system, followed by reinstatement of the system pressure to establish a working baseline. An initial acoustic test was then carried out, which indicated an irregularity beneath a radiator in the dining room.

To improve the signal clarity for acoustic testing, an air compressor was connected and 4.0 bar of compressed air was introduced into the system in place of water.

A further acoustic test under pressure confirmed the irregularity was originating from beneath the radiator on the left-hand side of the dining room. This level of precision is what central heating leak detection requires before any floor access is attempted — it ensures that excavation is targeted rather than speculative.

Once the location was confirmed, the carpet and an area of screed were carefully removed to expose the defective pipework.

Investigation Process

1. 1
   Visual Inspection on Arrival

   The heating system was inspected on arrival and found to have no pressure whatsoever. Trace and access work was deemed necessary to locate the source of the leak.

2. 2
   System Pressure Reinstated

   The heating system pressure was reinstated to allow acoustic testing to be carried out effectively.

3. 3
   Initial Acoustic Test

   An acoustic test was performed across the system, which indicated an irregularity beneath a radiator in the dining room.

4. 4
   Compressed Air Introduced

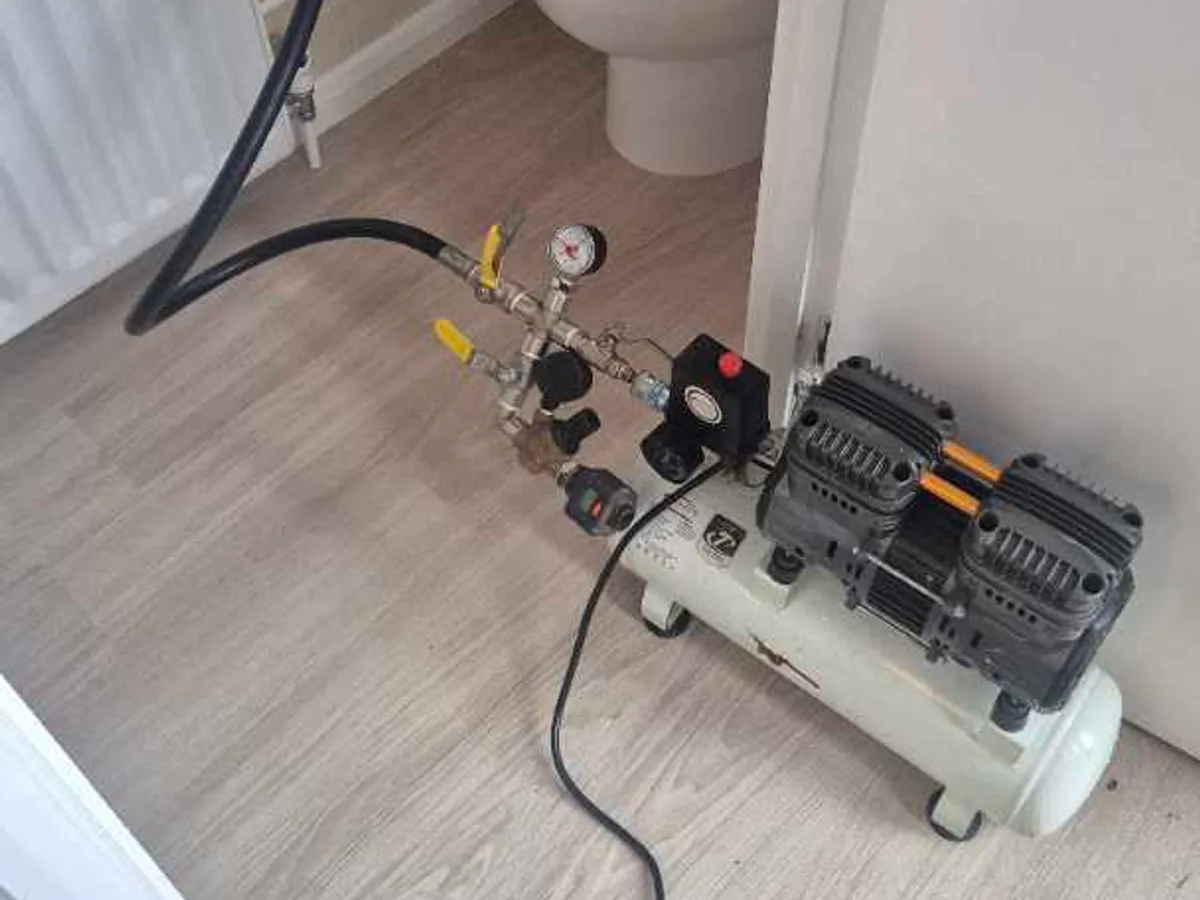

   An air compressor was connected to the heating circuit and 4.0 bar of compressed air was introduced to enhance conditions for further acoustic testing.

5. 5
   Acoustic Test Confirmed Location

   A second acoustic test confirmed that the sound irregularity was originating from beneath the radiator on the left-hand side of the dining room.

6. 6
   Floor Access Gained

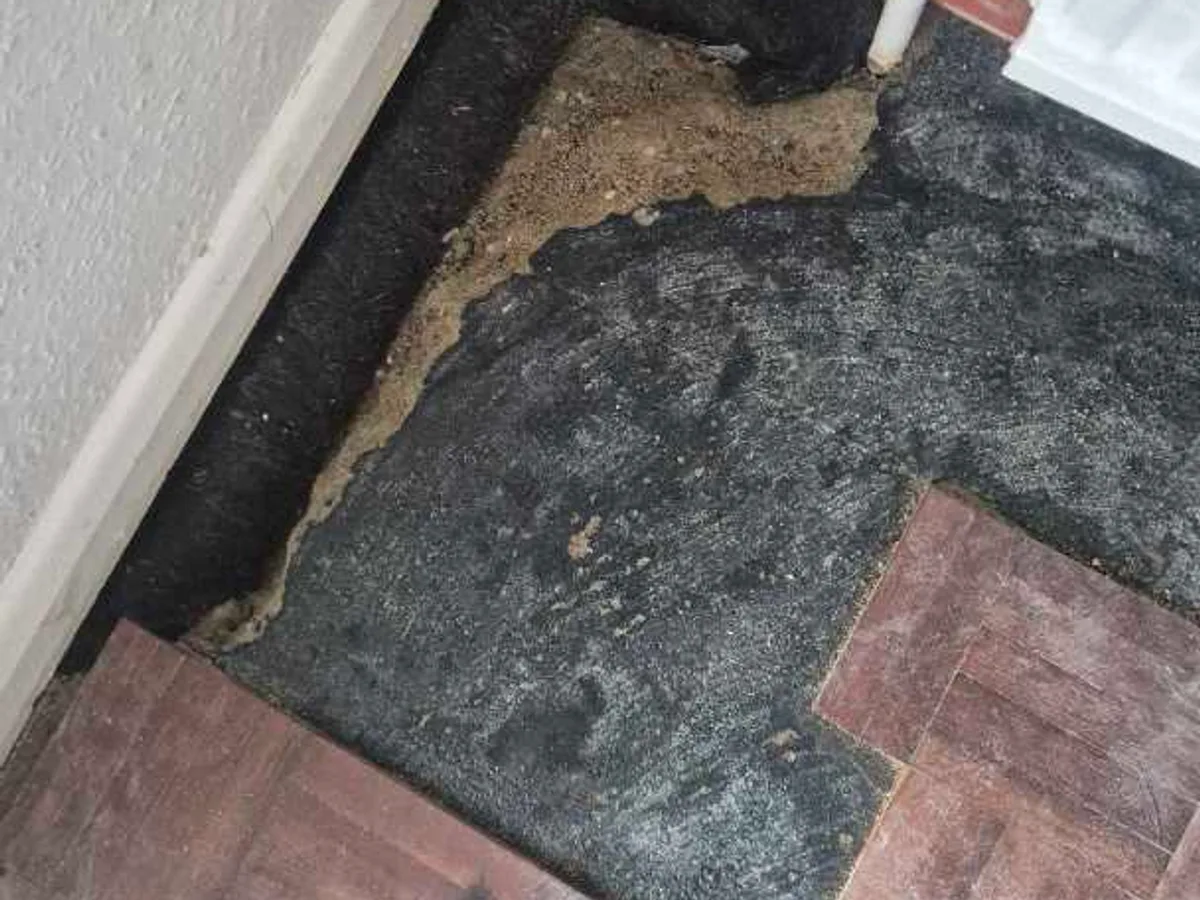

   The carpet was carefully removed and an area of screed was excavated to gain access to the pipework beneath the dining room floor.

7. 7
   Failed Pipe Exposed and Identified

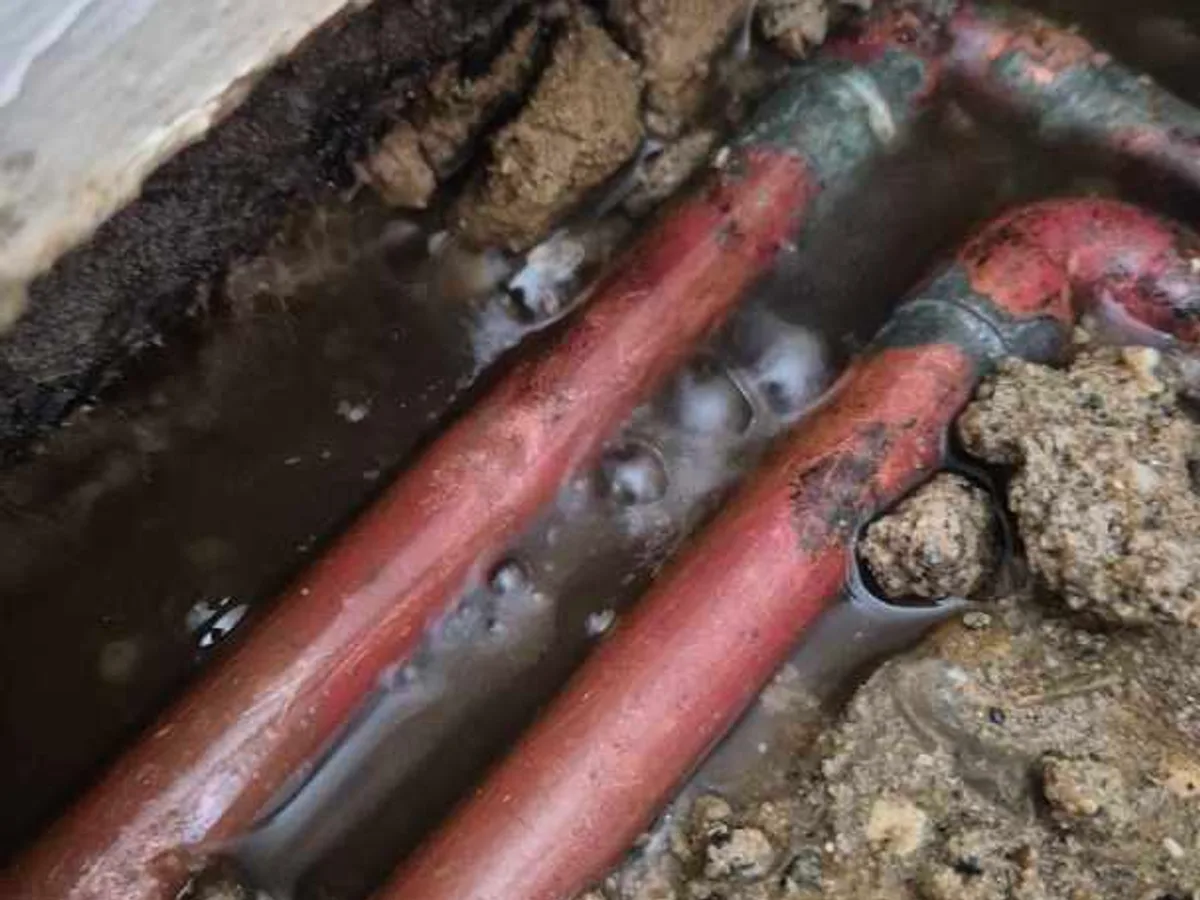

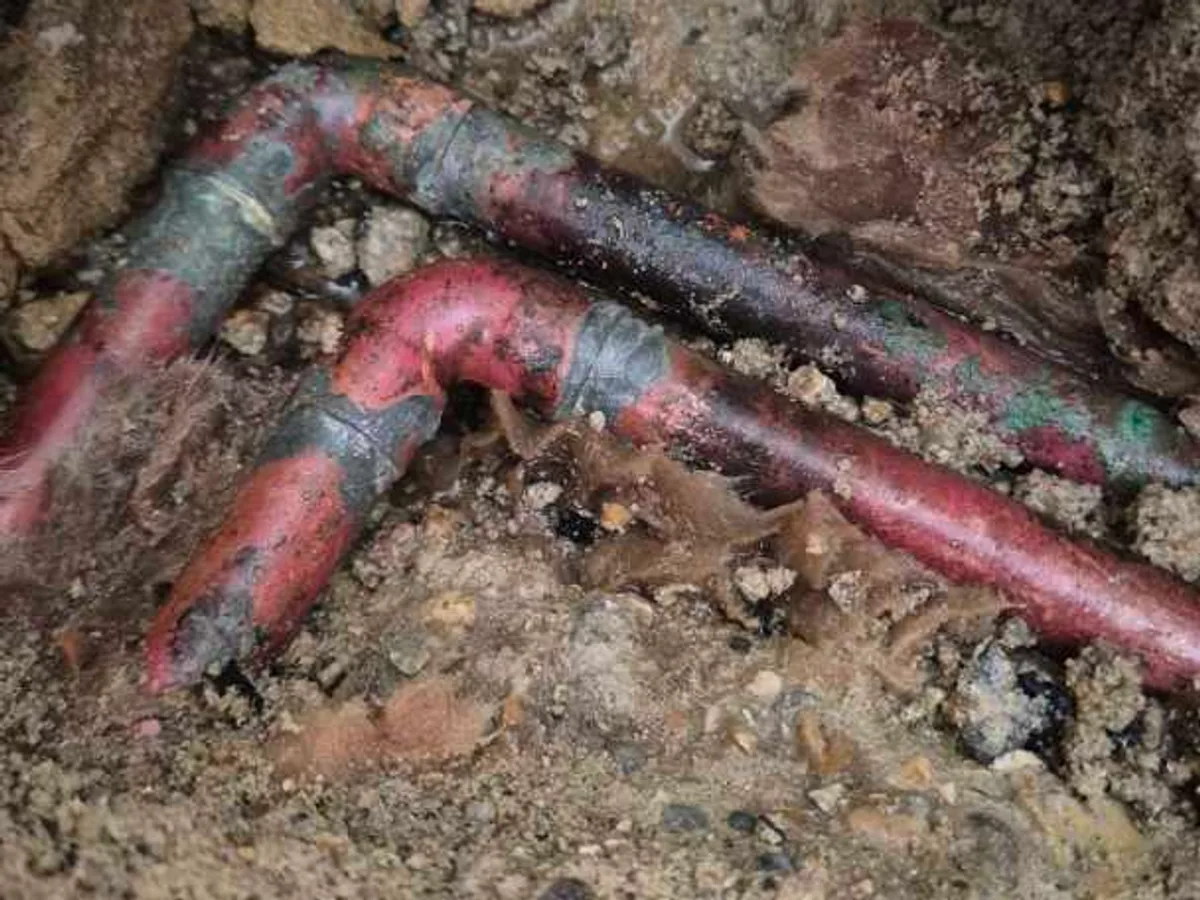

   A failed 15mm copper heating pipe was exposed, with visible water evidence present beneath it confirming it as the source of the pressure loss.

8. 8
   Pipe Section Renewed

   The damaged section of 15mm heating pipework was cut out and a new section was installed in its place. The pipework was lagged appropriately after the repair.

9. 9
   Pressure Retest Conducted

   4.0 bar of compressed air was reintroduced and no pressure drop was observed, confirming the repair was successful. The heating system pressure was then reinstated.

Result & Outcome

The leak was located beneath the left-hand radiator in the dining room at the property in SL5 — a failed 15mm copper heating pipe buried under the floor, with visible water evidence confirming the failure point. The acoustic testing, conducted twice and under compressed air, gave a precise location before any floor access was made, meaning the excavation area was kept to a minimum.

The damaged section of pipework was renewed, the pipework was lagged, and a retest at 4.0 bar of compressed air confirmed a complete seal with no pressure drop. The heating system was returned to working pressure at the end of the visit. For a central heating leak detection job of this type — where a buried pipe has failed and the system has lost all pressure — a confirmed repair on the same visit is a direct result of the acoustic work done before any access was attempted.

It is recommended that the exposed area beneath the dining room floor be allowed to dry out thoroughly before any reinstatement of the screed and carpet is carried out.
