Underground Water Mains Leak Detection in Watford

Symptoms

The customer at a property in WD17 noticed that the laminate flooring in the lounge had begun to swell, raising concern about a possible water leak. The heating system had also been losing pressure intermittently, requiring occasional top-ups, though a heating engineer had already identified a separate boiler seal issue and booked it in for repair.

That fault alone was not sufficient to account for the extent of water damage visible to the lounge floor.

Moisture meter readings taken across the lounge confirmed wet readings running from the entrance hall threshold along the wall behind the television unit, with the lounge wall to the right-hand side of the staircase door recording maximum readings of 999. The scale of moisture spread across the floor and walls pointed to a sustained, high-rate leak rather than incidental surface dampness.

This was a water mains leak detection job where the visible damage gave the first indication that something significant was happening beneath the floor. The incoming mains supply was quickly identified as the likely source, separate from the already-known heating system fault.

Methods Used

The investigation began with moisture meter surveys of the lounge floor and walls to map the extent of water ingress. A water meter flow test was then conducted to quantify the leak rate.

With usage running at 5–6 litres per minute and continuing unchanged after the internal isolation valve was shut, the leak was confirmed to be on the incoming mains pipe upstream of the internal stop valve. The internal mains pipe was then disconnected and a test rig connected, with an air compressor used to introduce pressurised air into the pipework.

This created an acoustic disturbance that allowed the escaping air — and the leak site — to be pinpointed audibly in the lounge floor behind the television unit.

For a water mains leak detection job of this nature, where a high leak rate is combined with a concealed pipe beneath a screeded floor, acoustic methods combined with flow metering provide the precision needed before any access work is undertaken. Once the location was confirmed, the customer gave consent for the laminate flooring to be cut up and the screed below broken out to expose the pipe.

Investigation Process

1. 1
   Moisture survey of lounge

   A moisture meter was used to take readings across the lounge floor and walls. Wet readings were recorded from the entrance hall threshold along the wall behind the TV, and the wall to the right of the staircase door recorded maximum moisture readings of 999.

2. 2
   Water meter flow test

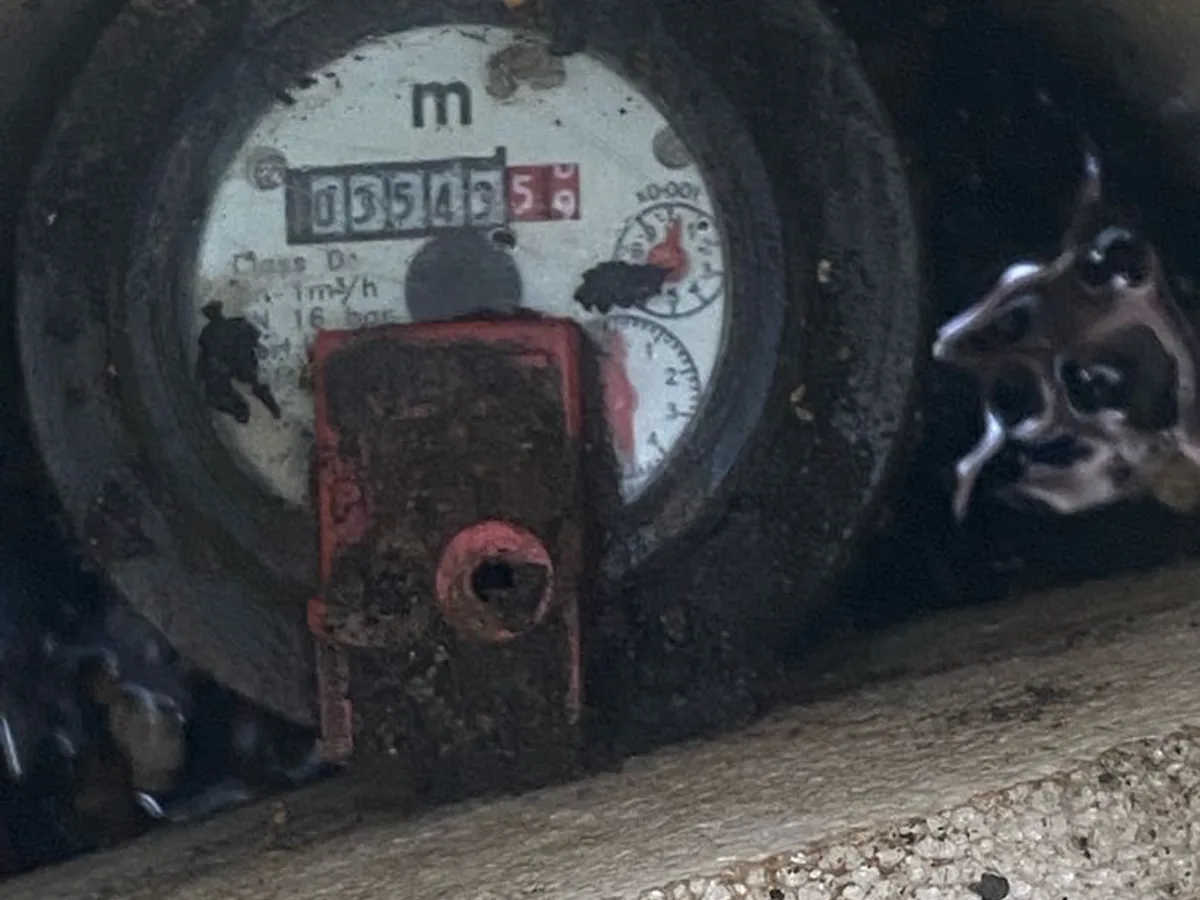

   Observation of the water meter confirmed usage at approximately 5–6 litres per minute. The internal isolation valve was turned off and the meter continued to record the same rate of use, confirming the leak was on the incoming mains pipe.

3. 3
   Air pressure and acoustic test

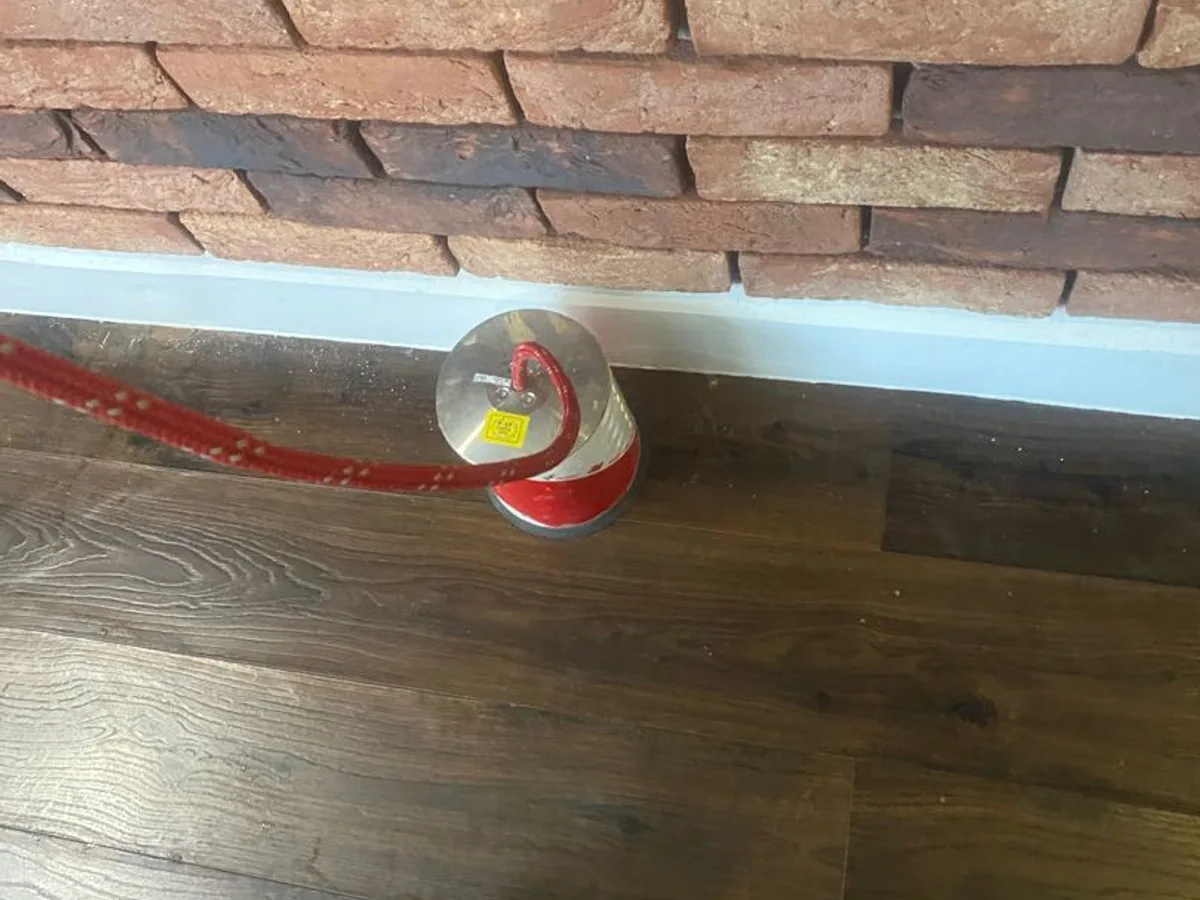

   The internal mains pipe was disconnected and a test rig connected. An air compressor was used to introduce air into the pipework, and bubbling and escaping air was audible in the lounge floor behind the TV unit.

4. 4
   Access work and pipe exposure

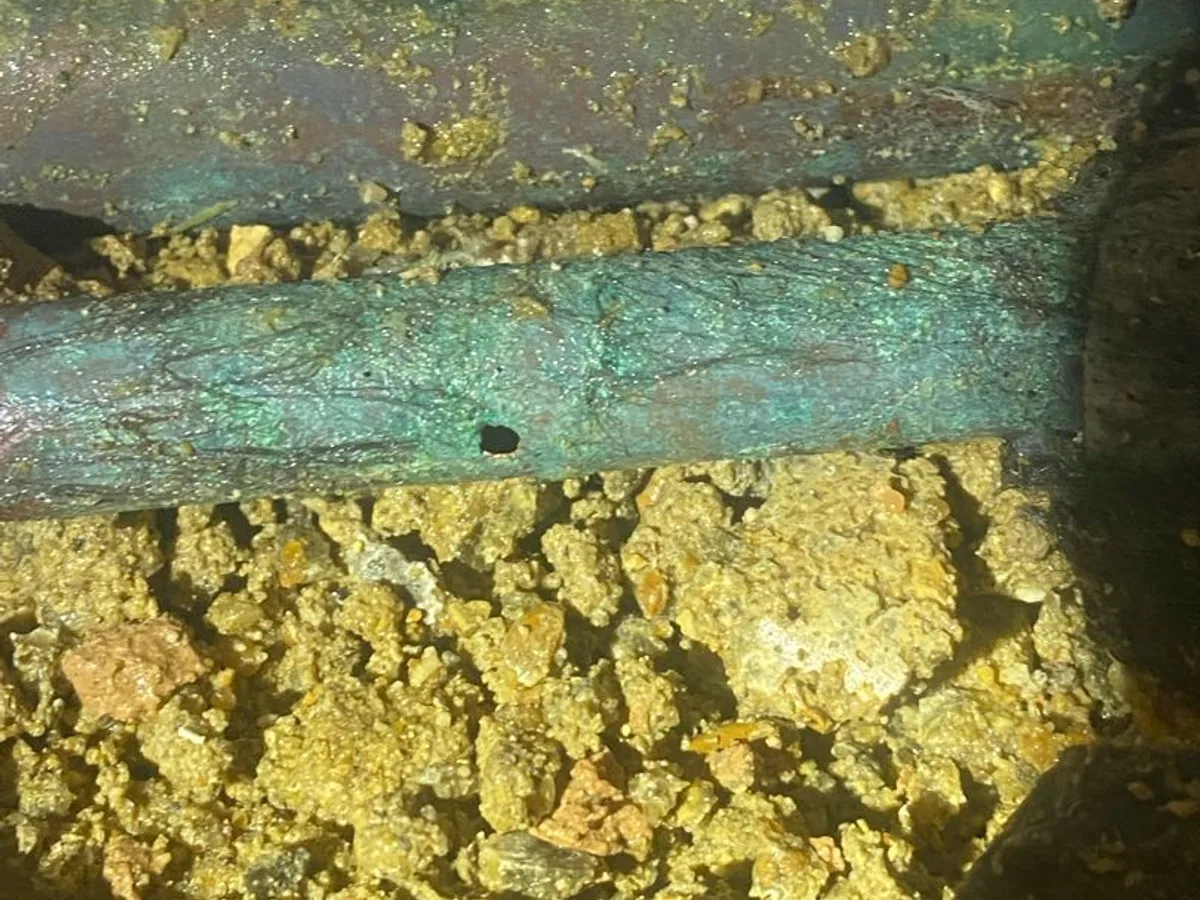

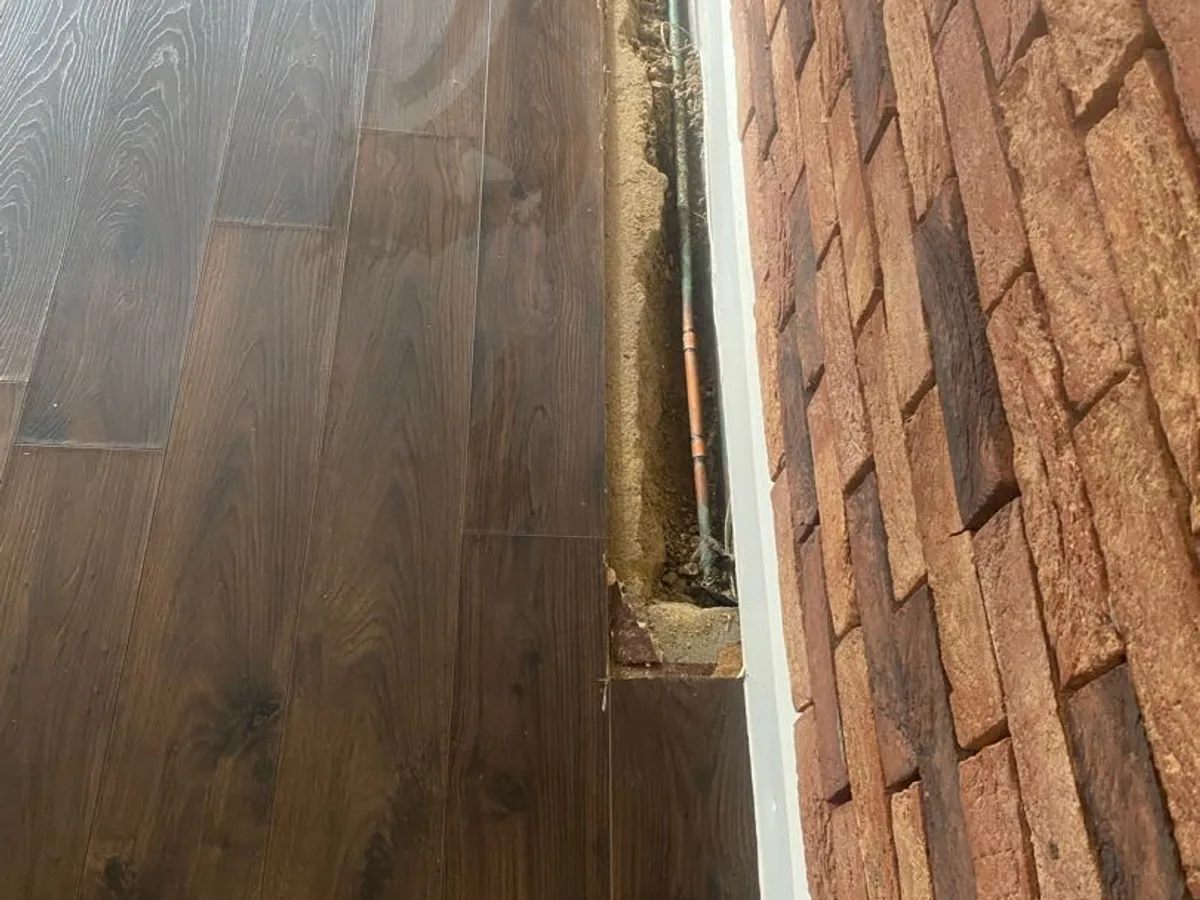

   With the customer's consent, the laminate flooring was cut up and the screed beneath was broken out. The leak was traced to a hole in a 15mm copper pipe beneath the lounge floor.

5. 5
   Pre-repair pressure tests

   With the damaged section of pipe cut out, pressure tests were carried out back to the meter and back to the internal stop valve. Both tests confirmed the remaining pipework to be sound prior to the repair being made.

6. 6
   Repair carried out

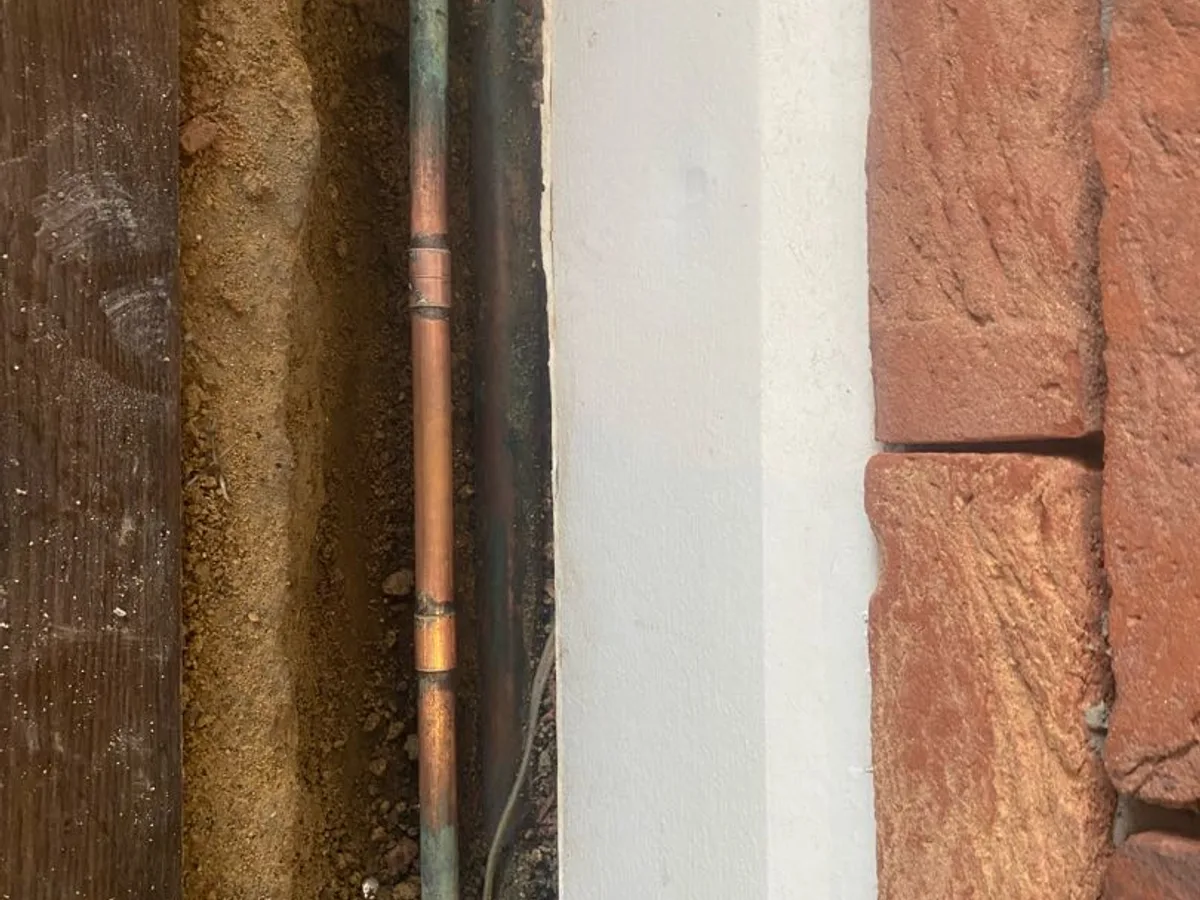

   The damaged section of 15mm copper pipe was replaced using copper tube, copper fittings, flux and solder.

7. 7
   Post-repair pressure and meter tests

   With all pipework reconnected, the incoming mains was pressure tested at 2.4 bar and held for 20 minutes with no measurable pressure loss. A further meter observation over 20 minutes recorded no usage, confirming all pipework to be sound at the time of testing.

Result & Outcome

The leak was located beneath the lounge floor in a property in WD17, traced to a hole in a 15mm copper mains supply pipe running beneath the screed behind the TV unit. The acoustic test pinpointed the location precisely enough that access work could be targeted directly to the affected area without unnecessary disruption elsewhere.

Following excavation and pipe replacement, the repaired section was pressure tested at 2.4 bar mains pressure and held for 20 minutes with no measurable pressure loss. A subsequent meter observation test over a further 20 minutes recorded no usage at all, confirming the repair to be complete and the pipework sound.

For a water mains leak detection job where the leak rate was running at 5–6 litres per minute, the extent of moisture spread across the lounge floor and walls was significant. The customer was advised to seek professional guidance on drying out the affected areas, as the volume of water lost and the spread of high moisture readings across both the floor and walls indicate that remediation work will be required before the areas can be reinstated.
