Water Mains Leak Detection in Stockport

Symptoms

The occupants of a property in SK7 had been informed by United Utilities that a continuous water loss was their responsibility to investigate. The meter dial was spinning constantly, pointing to an active leak somewhere within the property's supply.

With no internal stopcock fitted, there was no straightforward way to isolate the supply from inside the house.

When the access hatch under the stairs was opened, the extent of the problem became clear. Water had accumulated across the entire crawl space from front to back of the property, and a leak noise was audible.

Damp damage was visible throughout — laminate flooring had warped and swelled, doors had swollen, and some electrical circuits had tripped or were no longer operating. The back room near the bay window showed the worst of the damage, with saturated floorboards, joists, and maximum moisture readings on the floor and skirting boards.

This was a complex internal leak detection job. A complication emerged during the investigation: the heating system was also making persistent gurgling noises, and the boiler pressure gauge was showing pressure loss — indicating the heating circuit had also been affected, despite having previously been running without issue.

Methods Used

Because there was no internal stopcock, the supply was isolated at the meter to allow controlled pressure testing. The mains pipe was cut at the access hatch to create two testable sections: the run from the hatch to the meter, and the run from the hatch into the rest of the house.

Each section was tested independently at pressure to identify which side of the split held and which did not.

Once the internal section of pipework was confirmed as the source, internal leak detection methods were used to narrow the location. Acoustic equipment was deployed to listen for leak noise and identify a specific area — the back room near the bay window.

A damp meter was then used to record moisture levels around the bay, confirming elevated readings on the floor, skirting, and surrounding surfaces. Visual inspection after removing the warped laminate revealed saturated floorboards and joists, and the damaged fitting was identified and exposed for repair.

Investigation Process

1. 1
   Access hatch opened, water in crawl space confirmed

   The customer opened the access hatch under the stairs. Water was visible across the entire crawl space from front to back, and a leak noise could be heard.

2. 2
   Supply isolated at meter

   With no internal stopcock present, the supply was isolated at the external meter to allow the internal pipework to be cut and tested safely.

3. 3
   Pipe cut at access hatch, sectional pressure testing begun

   The mains pipe was cut at the hatch to create two isolated sections. The hatch-to-meter section was pressurised to 3 bar and held without loss.

4. 4
   Internal pipe section fails pressure test

   The section running from the hatch into the house was then tested and the pressure began to drop, confirming the leak was on the internal side of the supply.

5. 5
   Heating system found to be losing pressure

   While investigating the rooms, persistent gurgling noises were noted from the heating system and the boiler pressure gauge was found to be showing pressure loss, despite the heating having previously run without fault.

6. 6
   Acoustic equipment used to pinpoint leak area

   Acoustic correlation identified the leak area as the back room near the bay window, focusing the physical investigation.

7. 7
   Damp meter readings taken around the bay

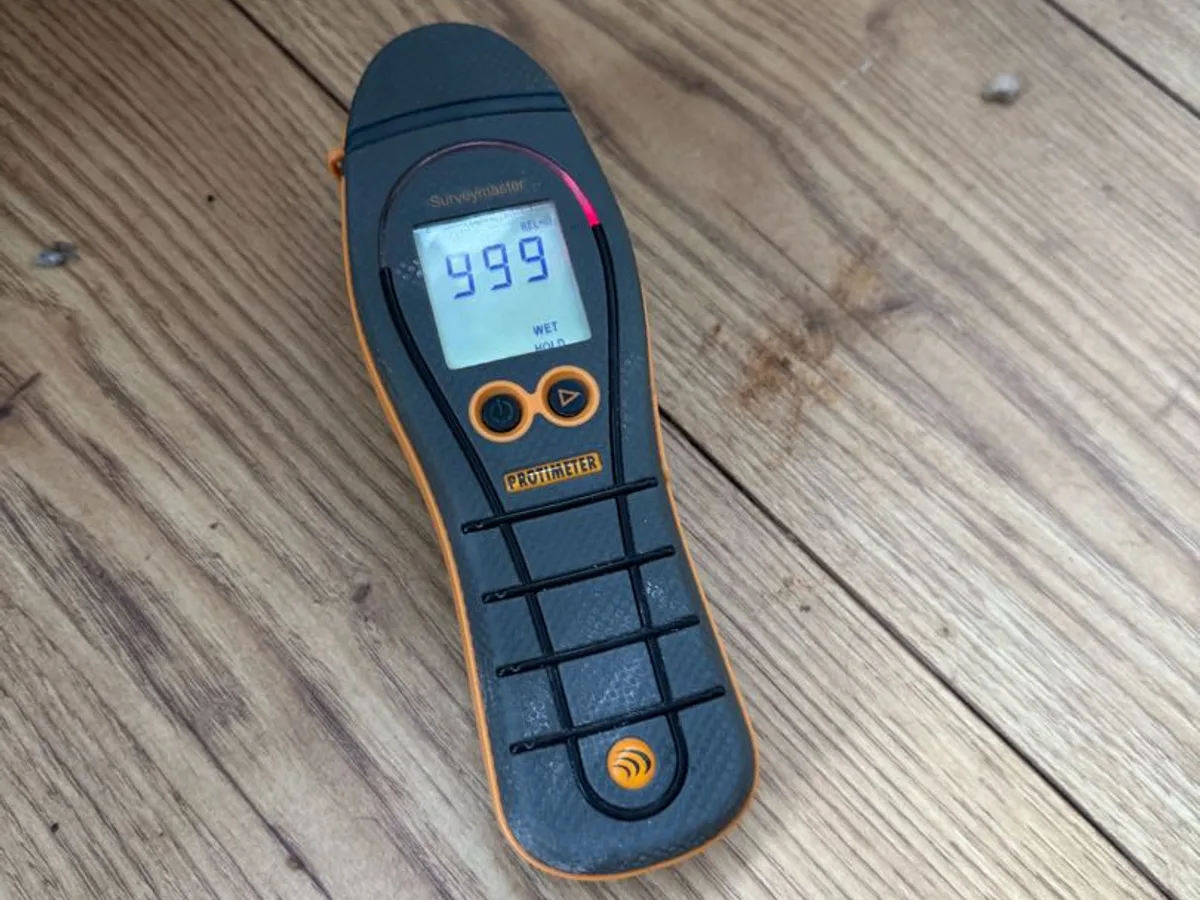

   Protimeter readings confirmed maximum moisture levels around the bay area on the floor and skirting boards, with visible damp damage, swollen doors, and tripped or non-functioning electrical circuits.

8. 8

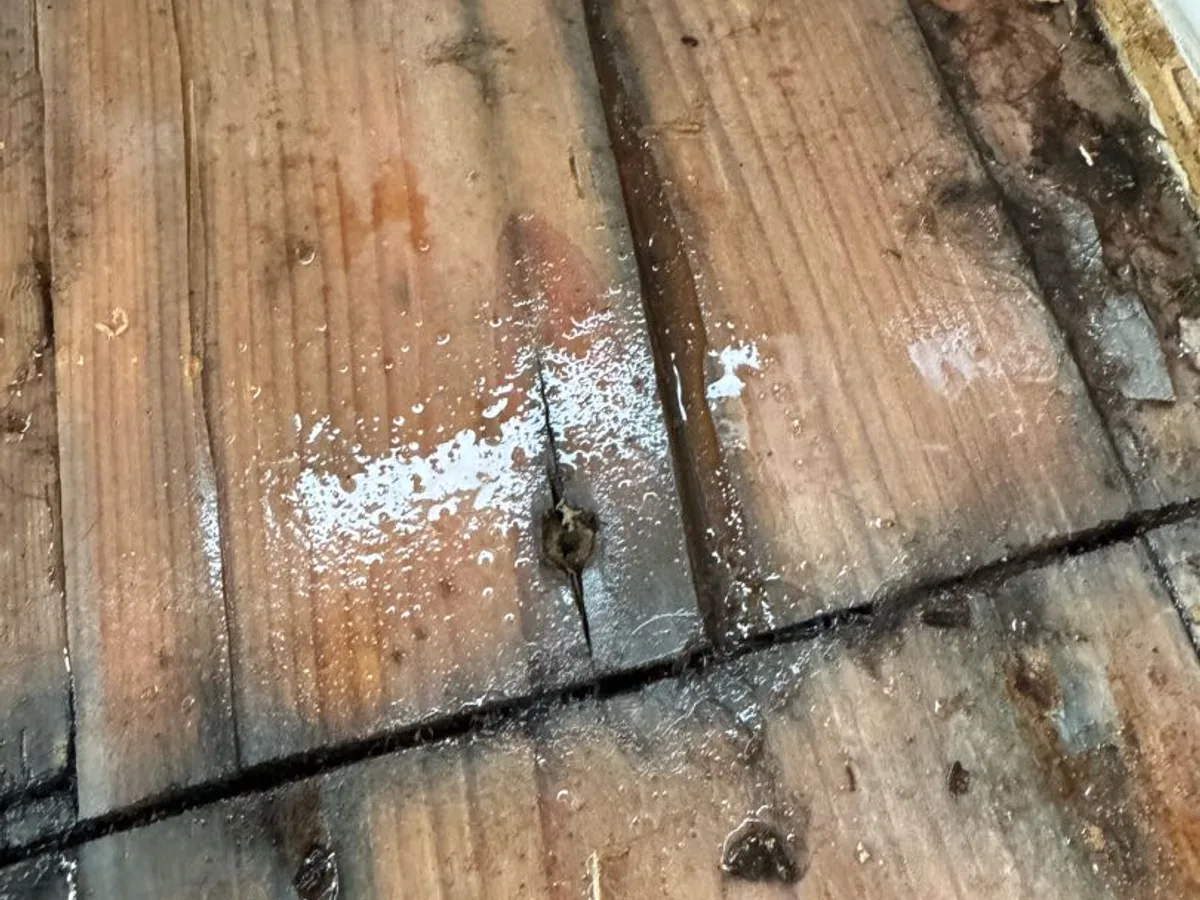

   Laminate lifted, floorboards and joists found saturated

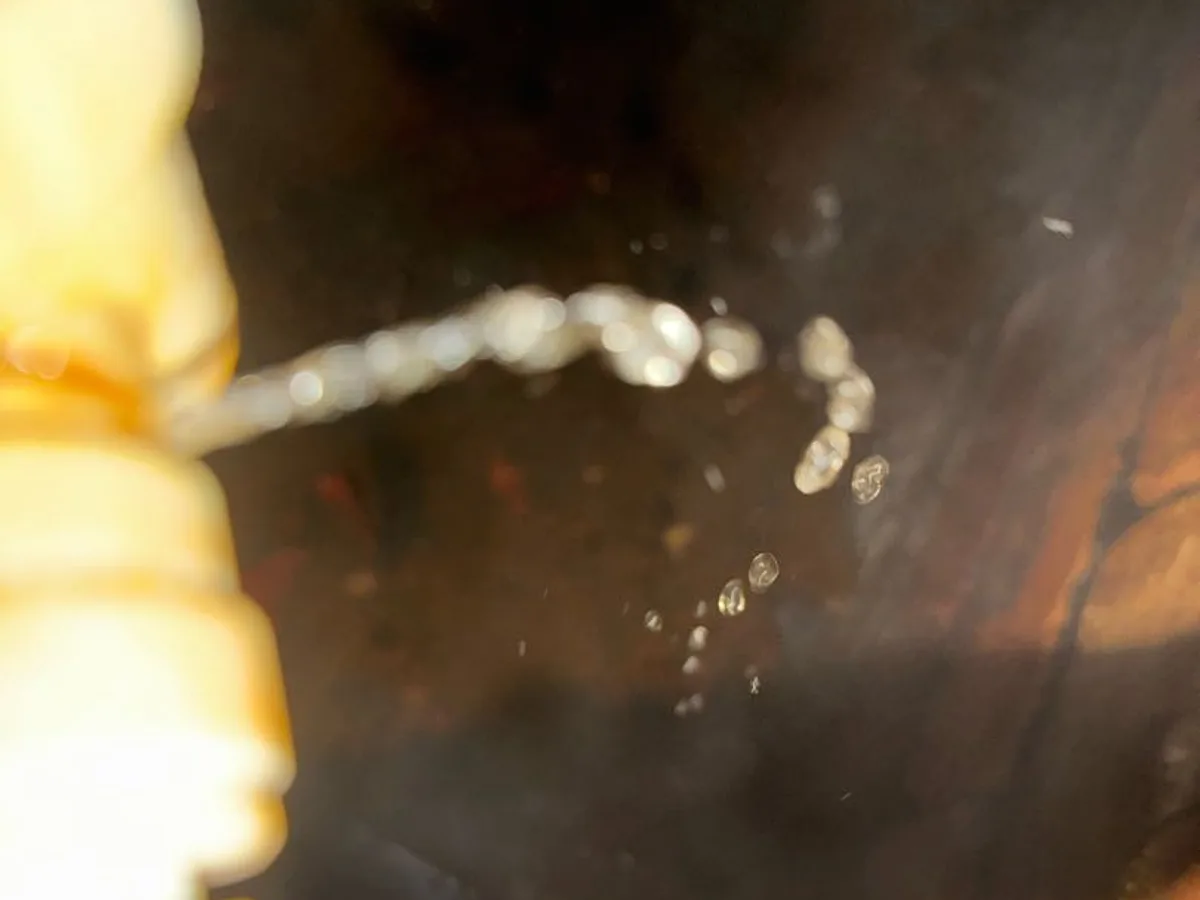

   The warped laminate in the bay area was removed. The floorboards and joists beneath were saturated, and the source was identified as a split connection fitting.

9. 9
   Damaged fitting removed and replaced

   The damaged section of pipe was sliced out and replaced using speed fit pipe and fittings.

10. 10
    Repair tested, system refilled and recommissioned

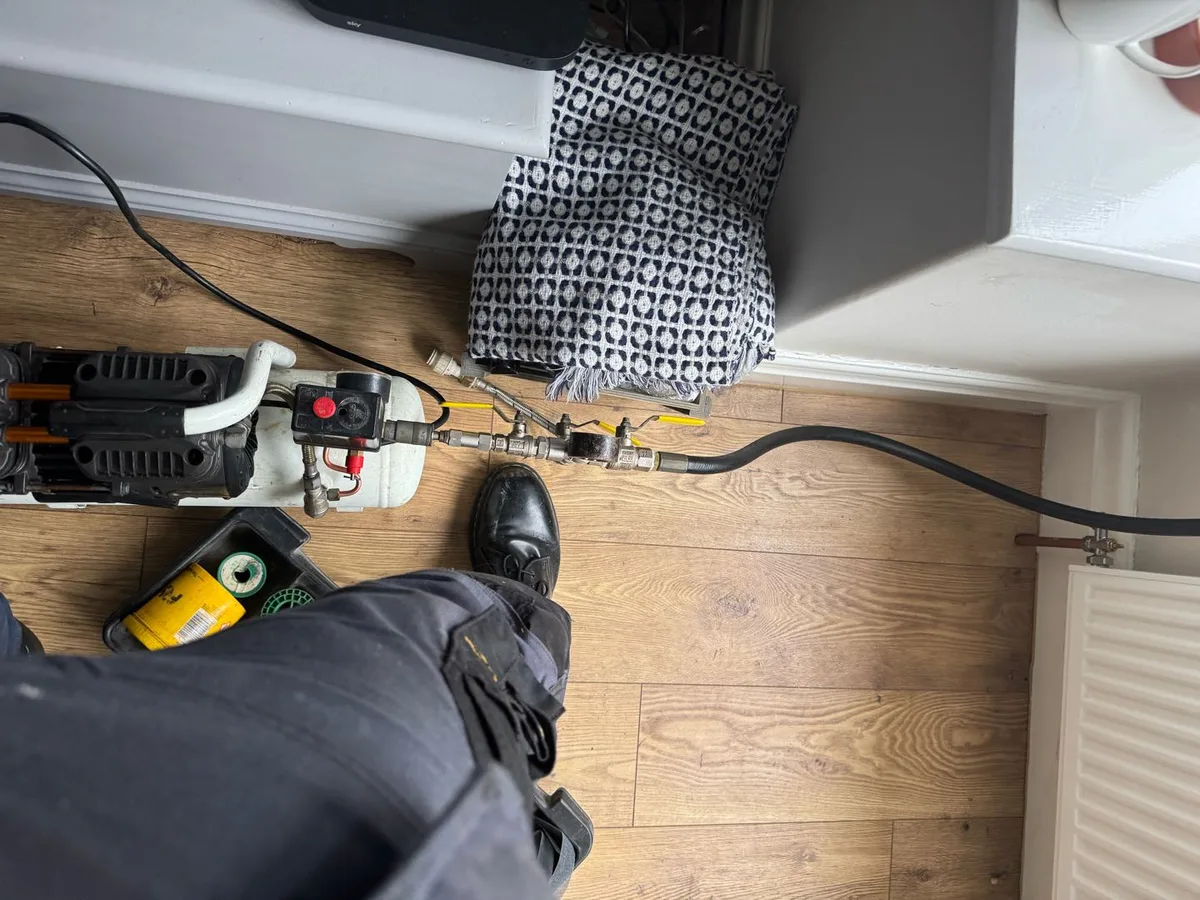

    The repaired section was pressure tested at 2 bar for 45 minutes with no drop. The system was then refilled, bled, and the heating was turned back on.

Result & Outcome

The leak was traced to a split connection fitting in the back room near the bay window. The damaged section was cut out and replaced with speed fit pipe and fittings. The repair was pressure tested at 2 bar for 45 minutes with no pressure drop before the system was refilled, bled, and returned to service.

The scale of secondary damage — saturated joists, warped flooring, swollen doors, and compromised electrical circuits — indicates the leak had been active for a significant period before detection. The internal leak detection process confirmed that the external mains run from the hatch to the meter was sound and that the fault was entirely within the internal supply pipework.

Two recommendations were made following the job: a stopcock should be installed under the access hatch to allow future isolation without needing to go to the external meter, and inhibitor should be added to the heating system when convenient to protect the circuit going forward.
