Underground Water Mains Leak Detection in Sheffield

Symptoms

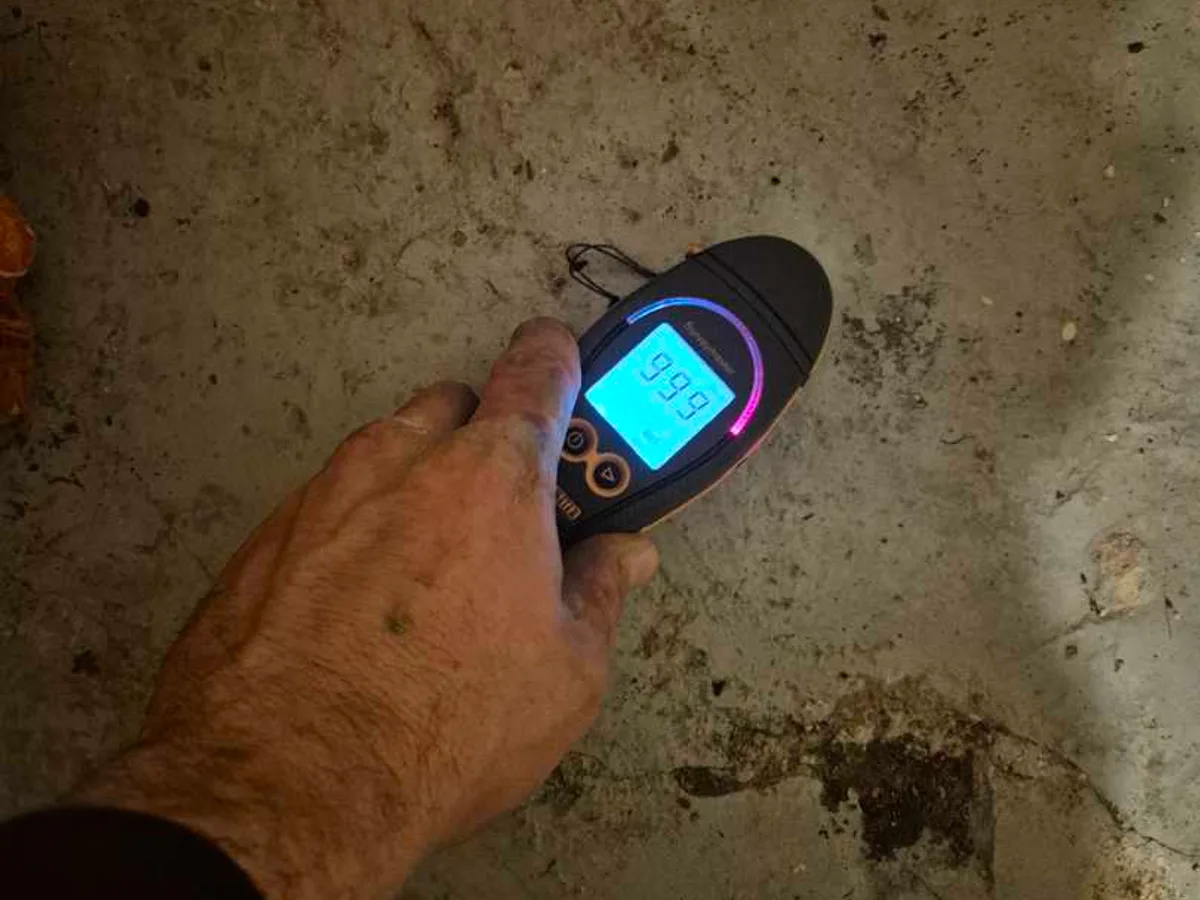

The owner of a property in S8 had received notification from their water supplier that a leak was present on their property. Water damage was visible on the basement walls, and a previous plumber had already inspected the internal pipework and concluded the leak was likely on the external water mains supply pipe.

There had been no loss of pressure on the boiler, which was consistent with the fault being confined to the cold mains supply rather than the heating system.

With the internal pipework already ruled out, the focus turned to confirming and locating a leak on the external mains. A water mains leak detection approach was required to identify the precise fault location before any excavation could take place.

The combination of meter movement, a failed pressure test, and the condition of the existing lead pipework all pointed to a significant and potentially multi-point failure on the supply line outside the property.

Methods Used

The investigation began at the external water mains meter, where flow was measured with the internal stopcock closed to confirm the leak was outside the property boundary. A pressure test on the external mains pipe failed, confirming active water loss.

Tracer gas was then introduced into the pipe and the surrounding area was systematically surveyed, with gas detected at two distinct locations. Acoustic equipment was deployed alongside the tracer gas survey to listen for signs of water movement, and activity was detected just outside the property near the pathway.

This combination of methods — standard practice in water mains leak detection — allowed the fault area to be narrowed to a specific point beneath the concrete pathway before any ground was broken. Excavation was only carried out once the detection work had converged on a single zone, reducing unnecessary disruption.

Investigation Process

1. 1
   Meter inspection and flow measurement

   The internal stopcock was isolated and the external water mains meter was checked for movement. Flow was confirmed at a rate of 1 litre every 1 minute 24 seconds, establishing an active external leak.

2. 2
   Pressure test on external mains

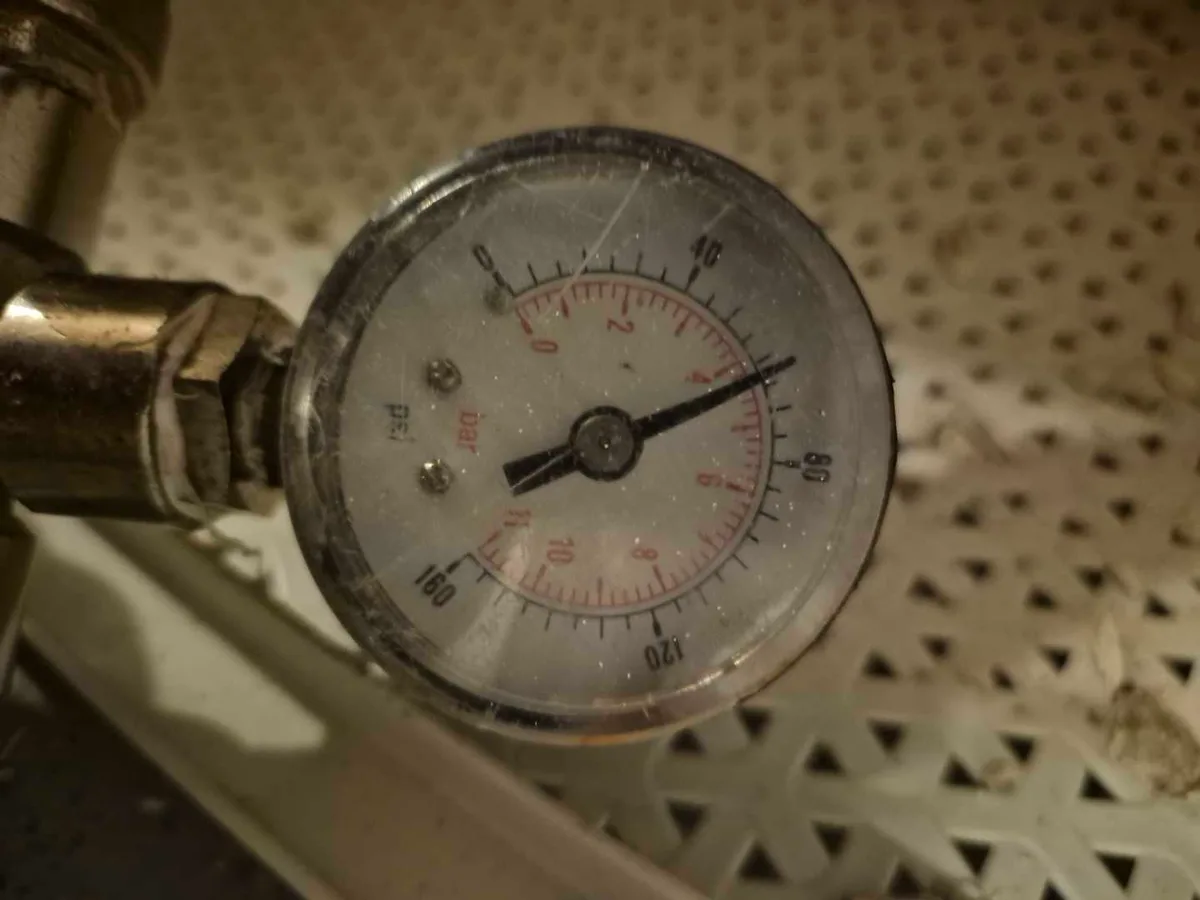

   A pressure test was carried out on the external water mains pipe. The test failed, confirming the pipe had lost integrity and that further detection methods were needed to locate the fault.

3. 3
   Tracer gas survey

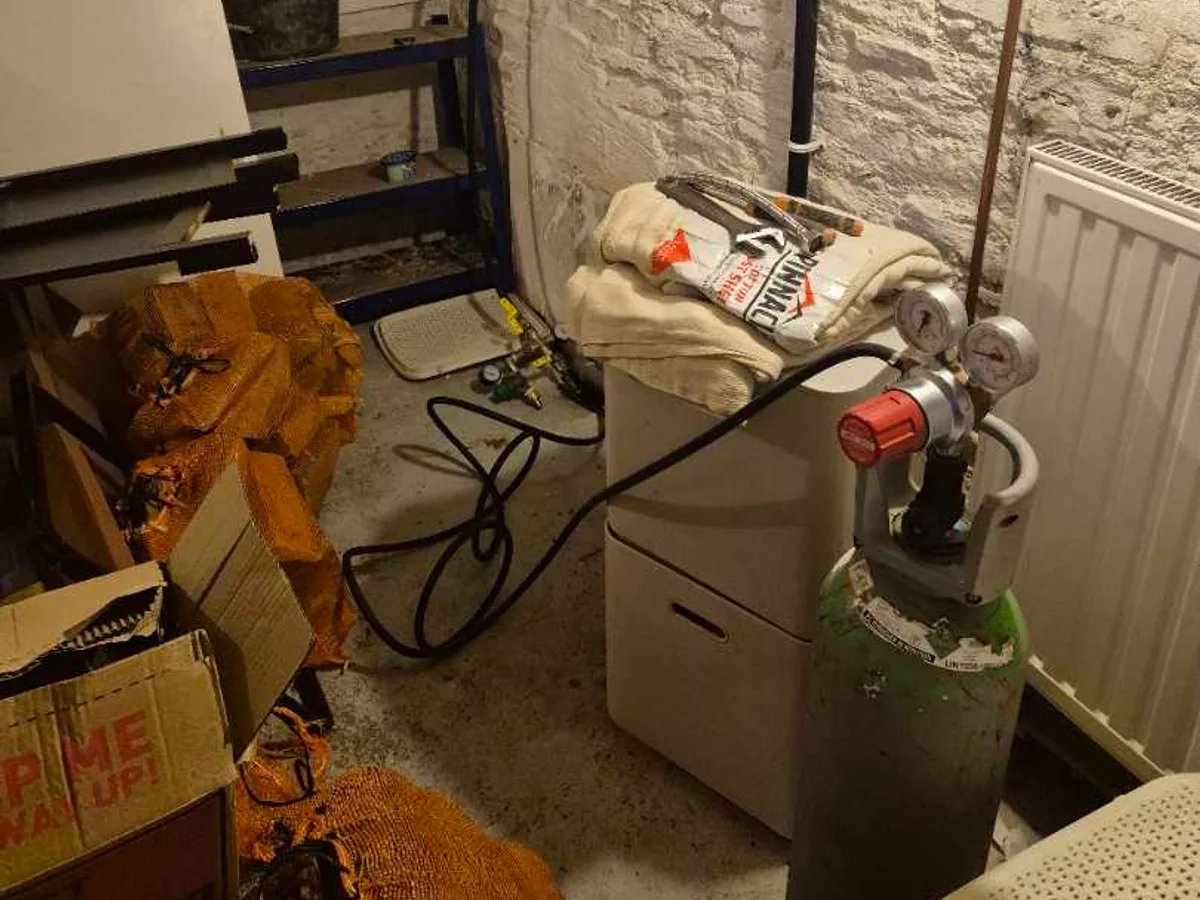

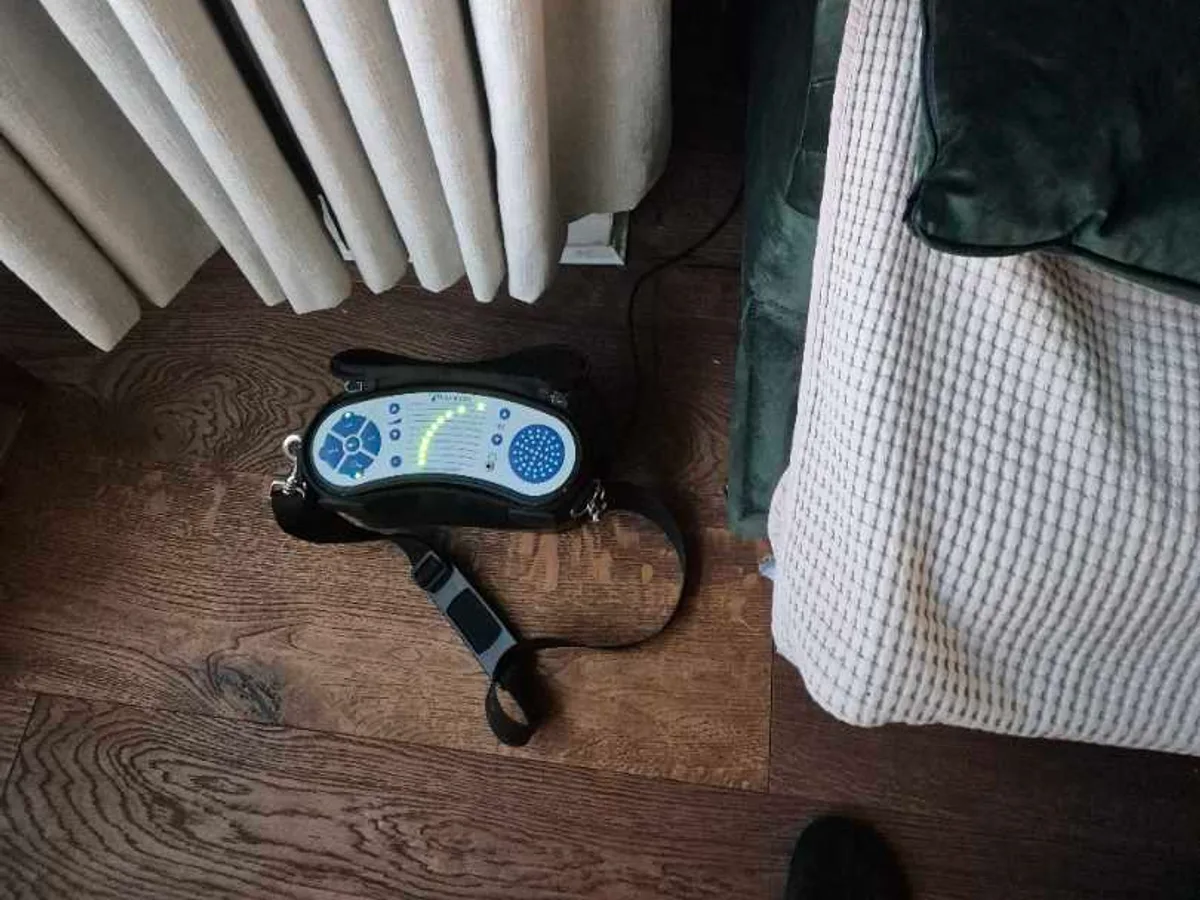

   Tracer gas was introduced into the external mains pipe and the property and surrounding ground were inspected. Gas was detected at two locations, identifying where water was escaping beneath the surface.

4. 4
   Acoustic survey

   Acoustic equipment was used along the pipe route to listen for water movement. Activity was detected just outside the property near the pathway, corroborating the tracer gas results.

5. 5
   Excavation of pathway

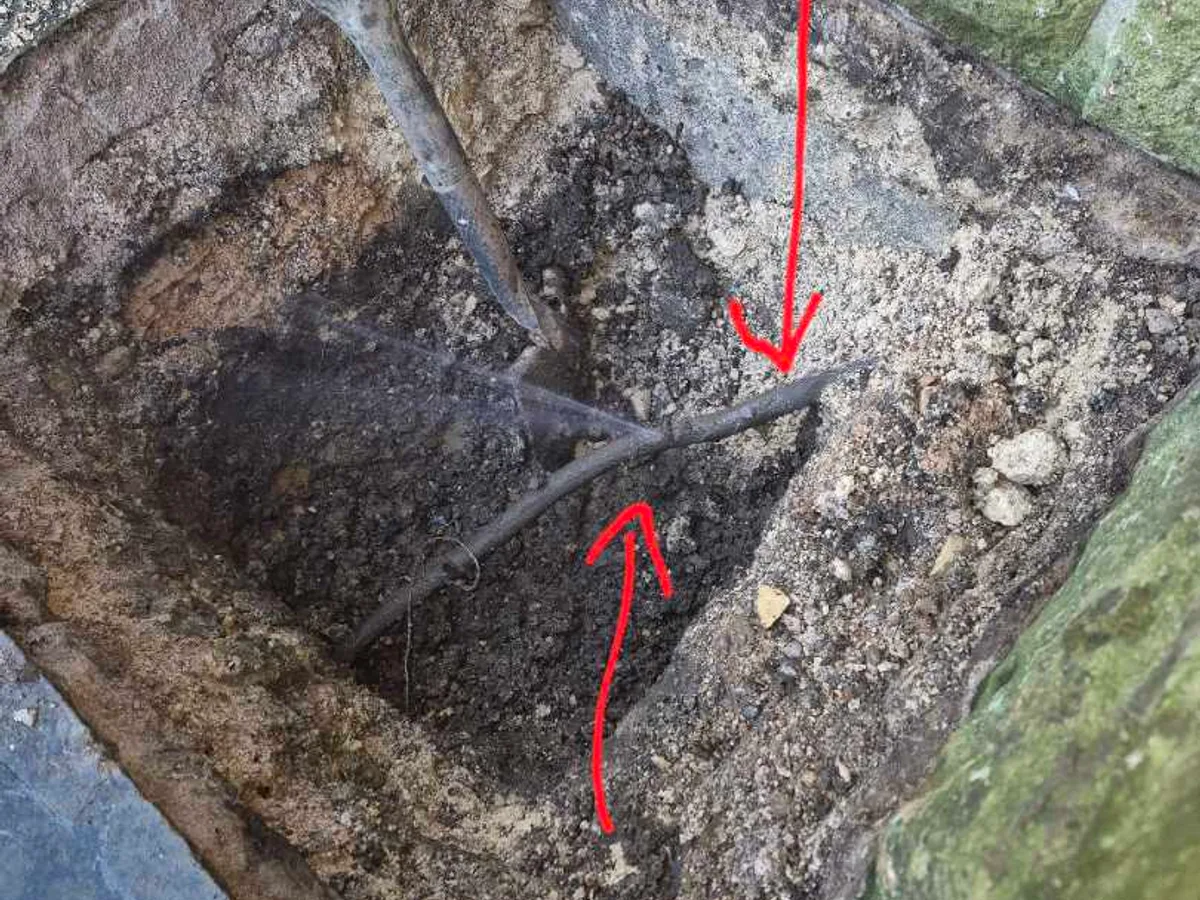

   With the customer's permission, the concrete pathway just outside the property was excavated to expose the pipework. The lead pipe was found to have multiple leaks at that location.

6. 6
   Temporary repair and backfill

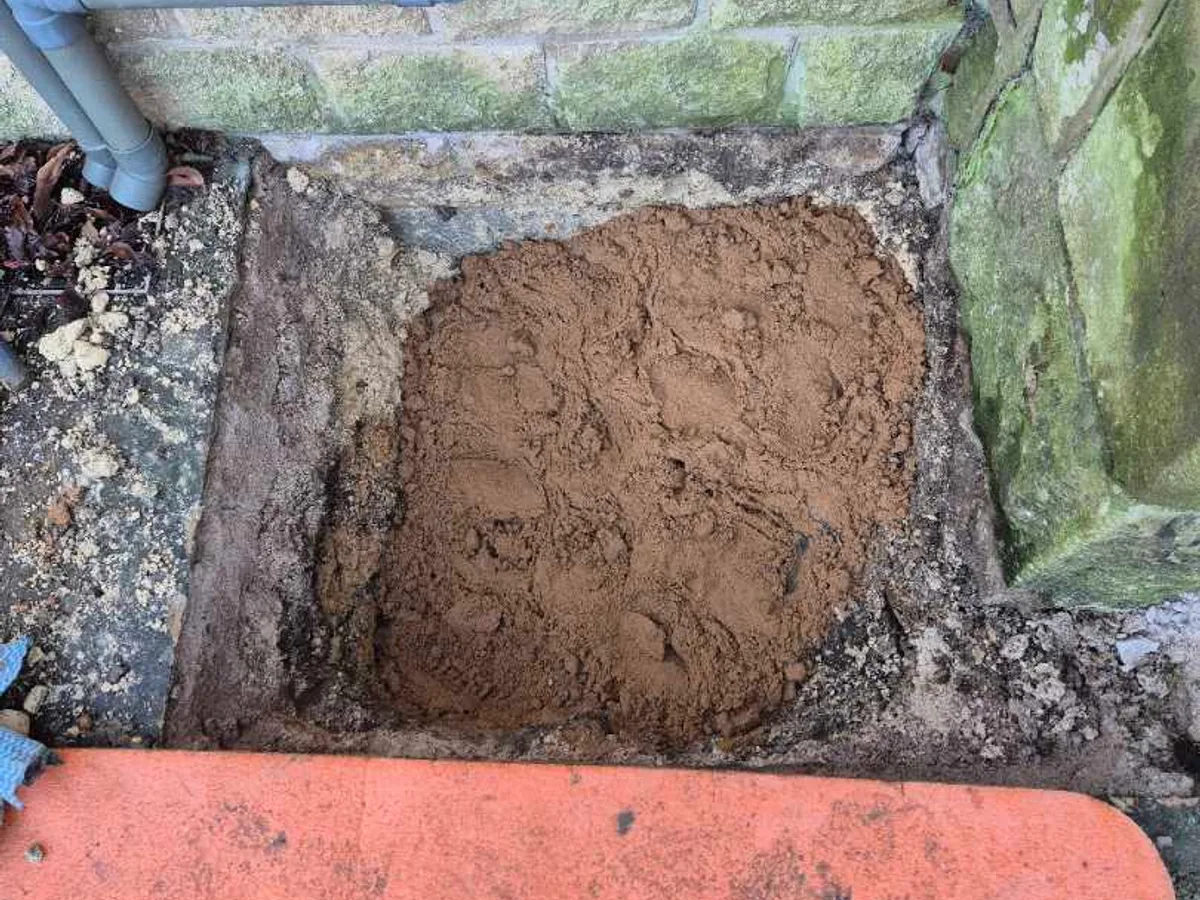

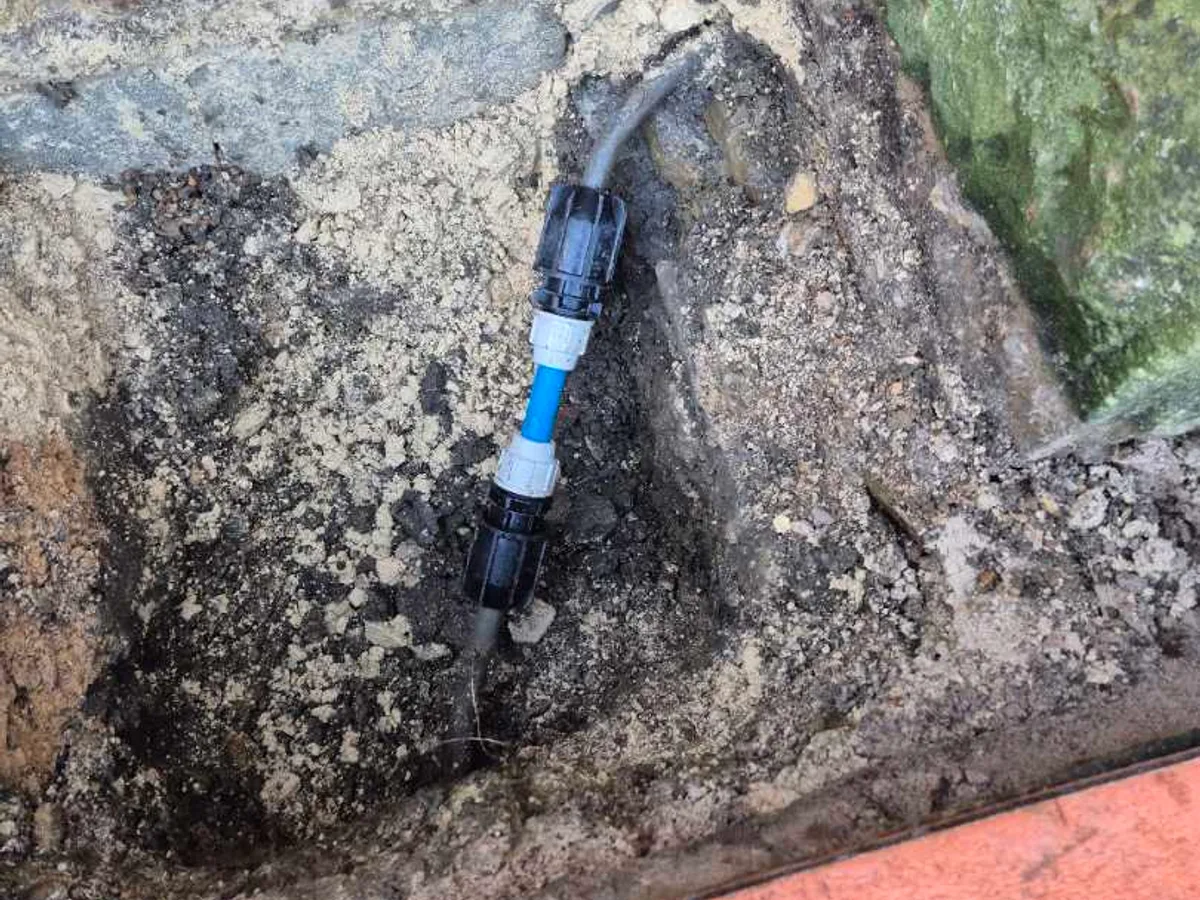

   A temporary repair was completed using universal transition couplers, inserts, and a section of 25mm blue MDPE pipe. Four bags of building sand were used to backfill the hole and protect the repair, given the compromised condition of the lead pipe.

Result & Outcome

Excavation of the concrete pathway just outside the property exposed the external water mains pipe at the location identified by the tracer gas and acoustic surveys. The lead pipe was found to have multiple leaks — not a single fault point — which is consistent with the general degradation of lead pipework over time. A temporary repair was completed on site using two universal transition couplers, inserts, and a length of 25mm blue MDPE pipe to restore supply.

Four bags of building sand were used to backfill the excavation and protect the repair. The temporary nature of the fix reflects the condition of the surrounding lead pipe, which remains at risk of further failure. As is often the case in water mains leak detection involving ageing lead mains, a single repair does not resolve the underlying risk posed by the full length of deteriorated pipe.

The property in S8 now requires a full water mains replacement to eliminate the risk of repeat failures. The basement water damage also requires a dedicated drying and restoration programme to address existing moisture, prevent structural deterioration, and reduce the risk of mould growth.
