Water Mains Leak Detection in Liverpool

Symptoms

A property in L12 was showing clear signs of a water leak, with extensive moisture recorded throughout the kitchen. Both walls, plinths, skirting, the tiled floor, and the dividing wall on the lounge side were all affected.

The scale of the moisture indicated that water had been escaping for some time and had spread well beyond a single point.

At the water meter, continuous usage was recorded at a rate of 3 litres per hour, with no explanation from normal consumption. This reading pointed firmly to an active leak somewhere within the property's internal water system rather than an isolated surface issue.

The property was booked in for internal leak detection to establish the precise source and extent of the problem before any further damage could occur.

Methods Used

The investigation followed a staged approach, moving from surface moisture assessment through to pressure testing and tracer gas application. A protimeter survey first confirmed maximum moisture readings across the kitchen and into the lounge-side dividing wall.

An acoustic survey then detected a strong leak noise at the internal stopcock, though no distinct profile was audible on the floor surface at that stage. With the supply isolated at the meter, a pressure test showed a drop from 3 bar to 2 bar over 20 minutes, providing clear confirmation of an active leak in the pipework.

Tracer gas was introduced into the system and detections were made across several areas of the kitchen. A second acoustic survey using a ground microphone alongside the tracer gas narrowed the source to the left-hand side of the kitchen.

This combination of methods is standard practice in internal leak detection and allowed the leak to be pinpointed before any excavation began, limiting unnecessary disruption to the floor.

Investigation Process

1. 1

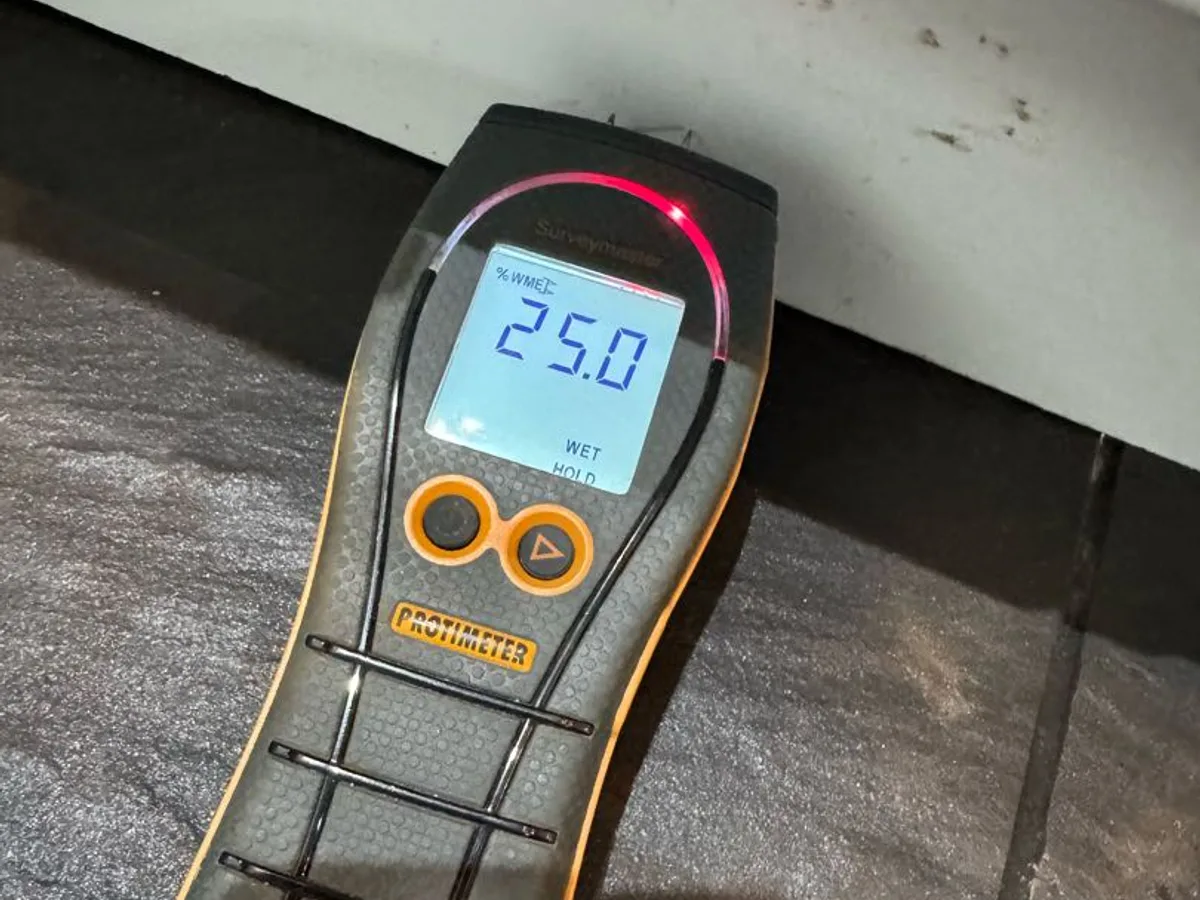

   Protimeter survey conducted

   A full damp meter survey was carried out across the kitchen, recording maximum moisture levels on the walls, plinths, skirting, tiled floor, and the dividing wall into the lounge.

2. 2

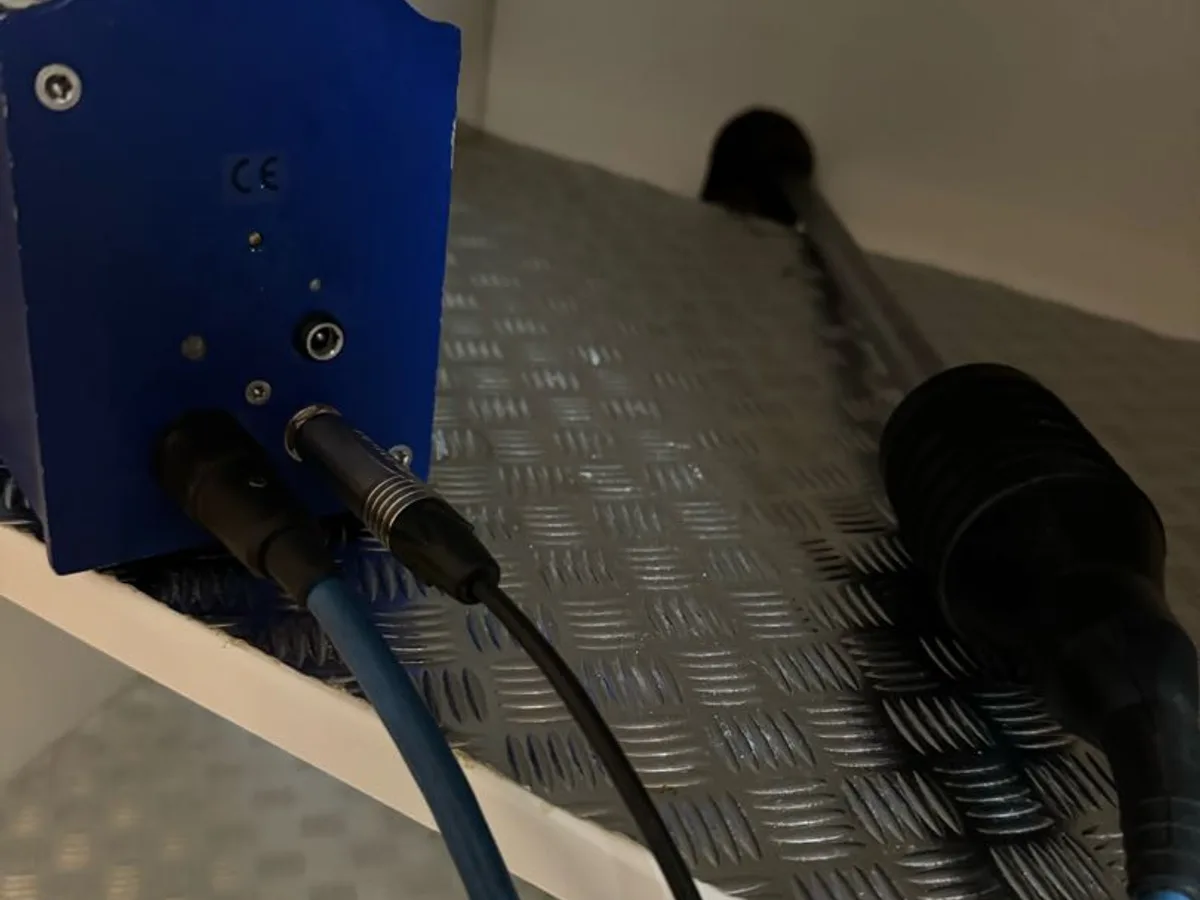

   Initial acoustic survey

   An acoustic survey identified a strong leak noise at the internal stopcock. No distinct profile was detected on the floor surface at this stage.

3. 3
   Supply isolated and pressure test performed

   The water supply was isolated at the meter and a pressure test was carried out. Pressure dropped from 3 bar to 2 bar over 20 minutes, confirming an active leak in the system.

4. 4

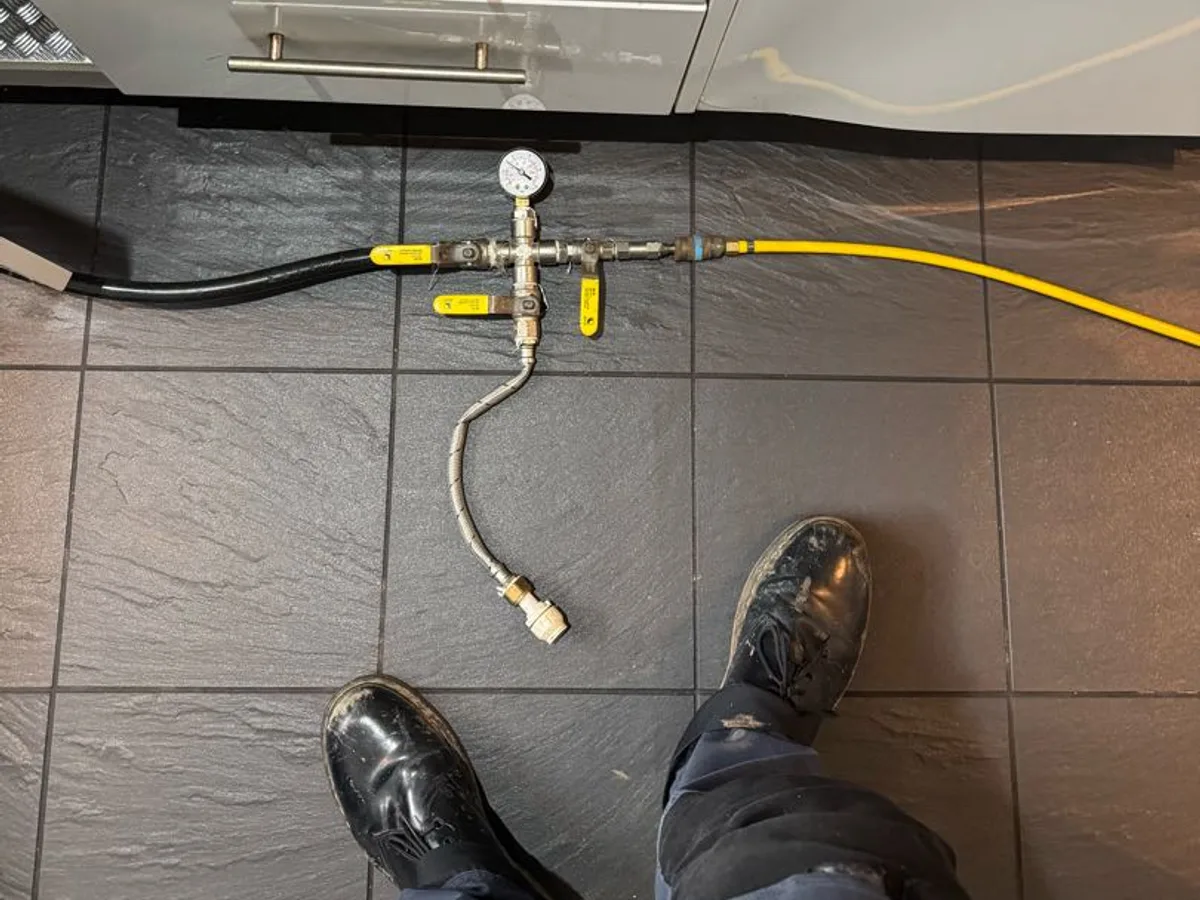

   Tracer gas introduced

   Tracer gas was introduced into the pipework and detections were recorded across several areas within the kitchen.

5. 5

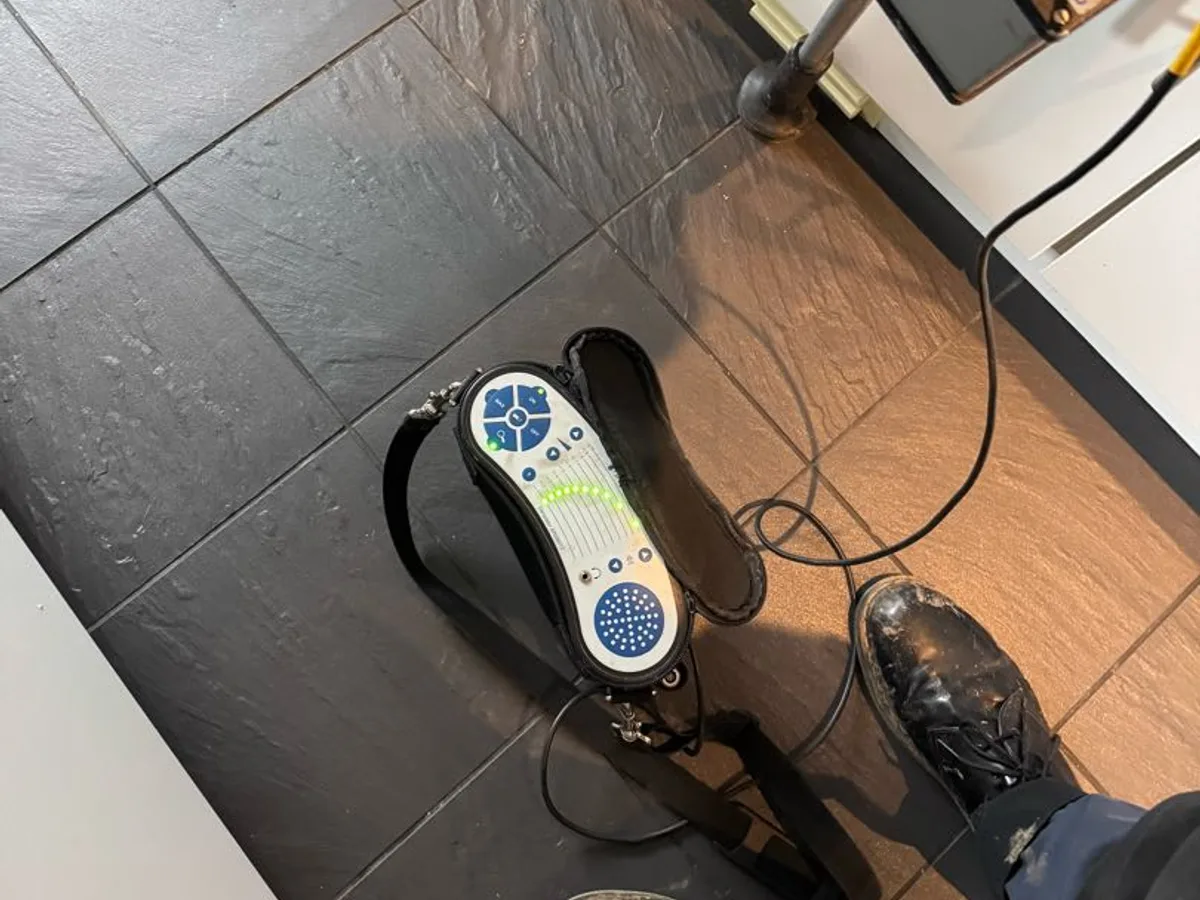

   Second acoustic survey with ground microphone

   A ground microphone was used alongside the tracer gas in a second acoustic survey, identifying sounds on the left-hand side of the kitchen and pinpointing the leak location.

6. 6
   Floor excavated and pipework exposed

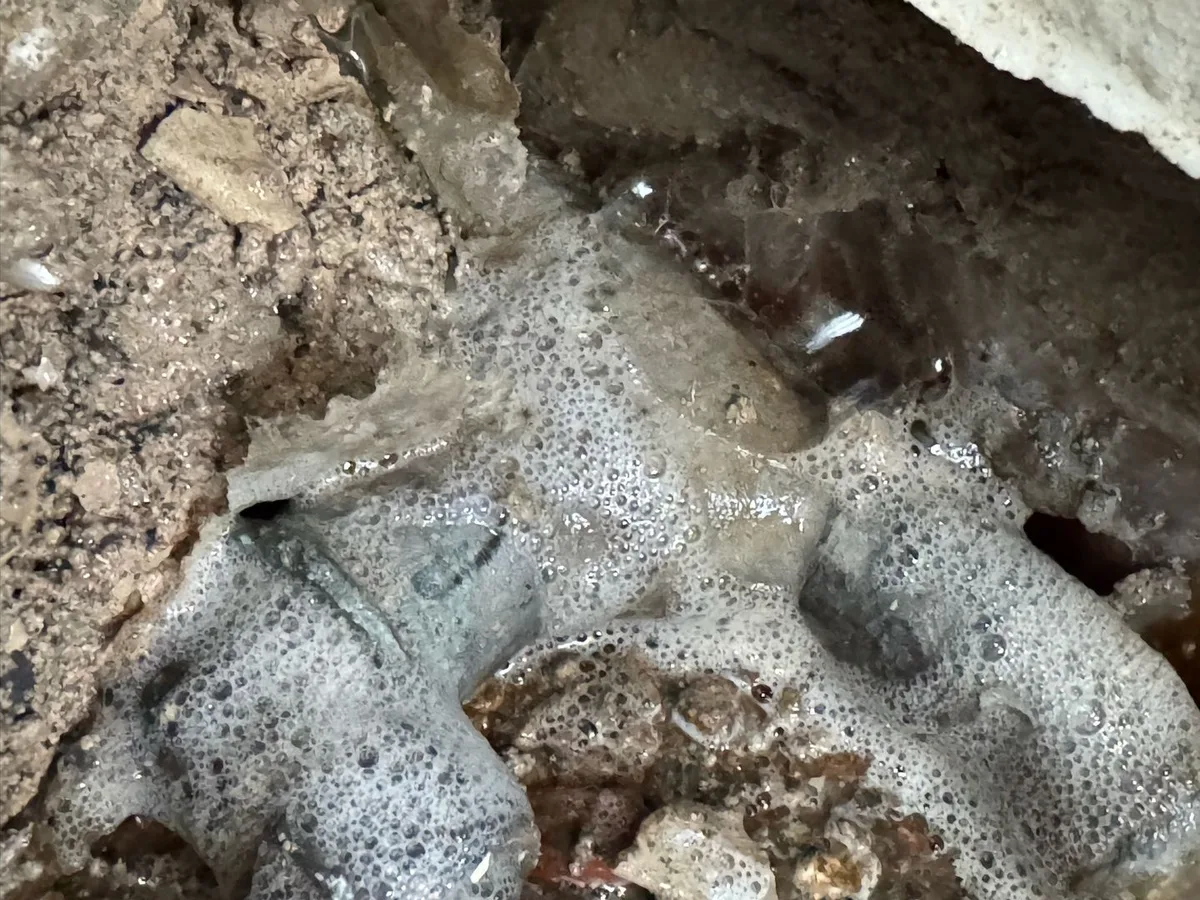

   Following the customer's request for a repair, the floor was carefully excavated. The ground surrounding the pipes was found to be saturated, and the damaged section of pipe was precisely located.

7. 7
   Damaged pipe removed and replaced

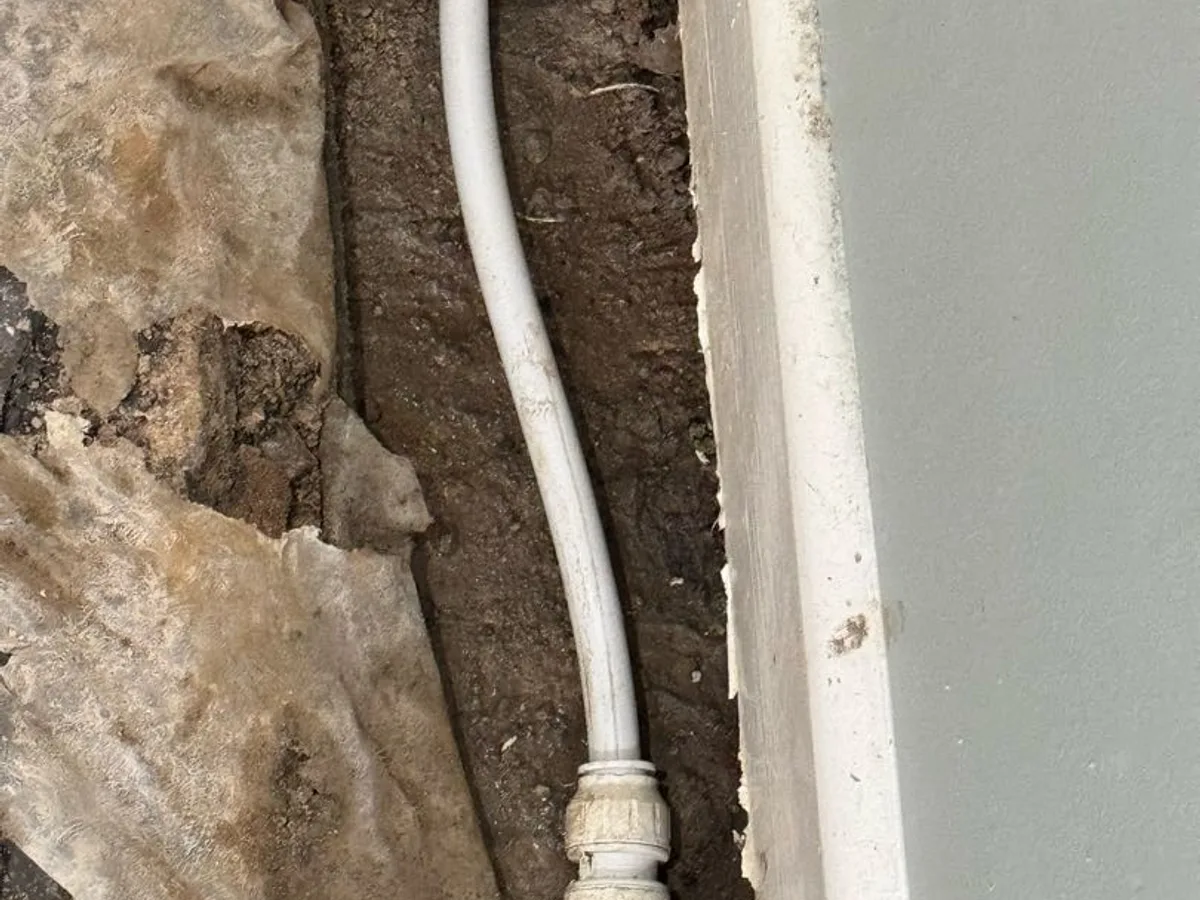

   The damaged section was removed and replaced using a transitional MDPE coupling with speed fit pipe and socket.

8. 8
   Repair pressure tested and supply reinstated

   The repair was tested at 4 bar for 45 minutes with no pressure drop recorded. The supply was reinstated, checked at all outlets, and the water meter confirmed stable with no further usage.

Result & Outcome

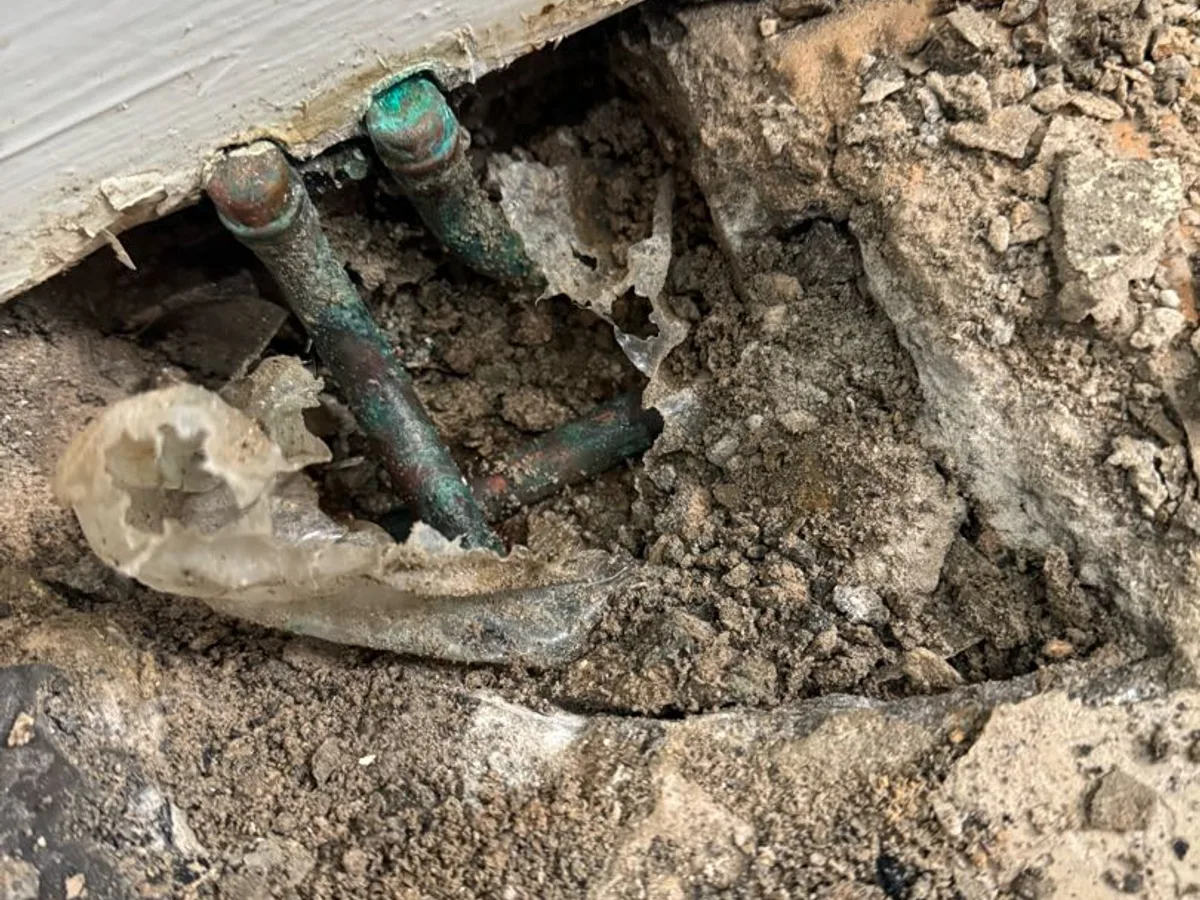

The leak was located beneath the kitchen floor, along the pipework on the left-hand side of the kitchen. When the floor was excavated, the ground surrounding the pipes was found to be saturated, consistent with the extensive moisture readings recorded across the kitchen at the start of the survey. The damaged section of pipe was removed and replaced with a transitional MDPE coupling with speed fit pipe and socket.

The repair was pressure tested at 4 bar for 45 minutes with no drop recorded, confirming a sound fix. The water supply was reinstated and checked at all outlets, and the water meter returned to a stable reading with no further continuous usage — directly contrasting with the 3 litres per hour recorded at the start of the job.

For a job of this kind, internal leak detection provided the structured, evidence-based approach needed to locate a buried leak without unnecessary excavation across the whole kitchen. The recommendation to use dehumidifiers in the kitchen remains relevant, as the saturation present in the floor and walls will require a managed drying period before moisture levels return to normal.
