Underground Water Mains Leak Detection in Hounslow

Symptoms

At a property in TW2, noise was detected on the water main when no water was in use — a clear sign that water was escaping somewhere within the supply system. On arrival, visual inspection of the kitchen revealed evidence of a leak and associated damage to the walls and floor, indicating the problem had been active long enough to cause measurable harm to the building fabric.

A water mains leak detection investigation was required to pinpoint the source before any repair could be carried out. With the damage confined to the kitchen area and the mains supply running beneath the floor, the focus turned to that section of pipework as the likely origin of the fault.

The combination of audible noise on the main and visible damage to the kitchen surfaces pointed to a pressurised leak beneath the floor — one that would not resolve without locating the precise failure point and renewing the affected section of pipe.

Methods Used

The investigation began with a visual inspection of the affected areas, confirming water damage to the kitchen walls and floor. An acoustic test was then carried out on the mains supply line, which identified an irregularity beneath the floor in the area between the kitchen and dining room.

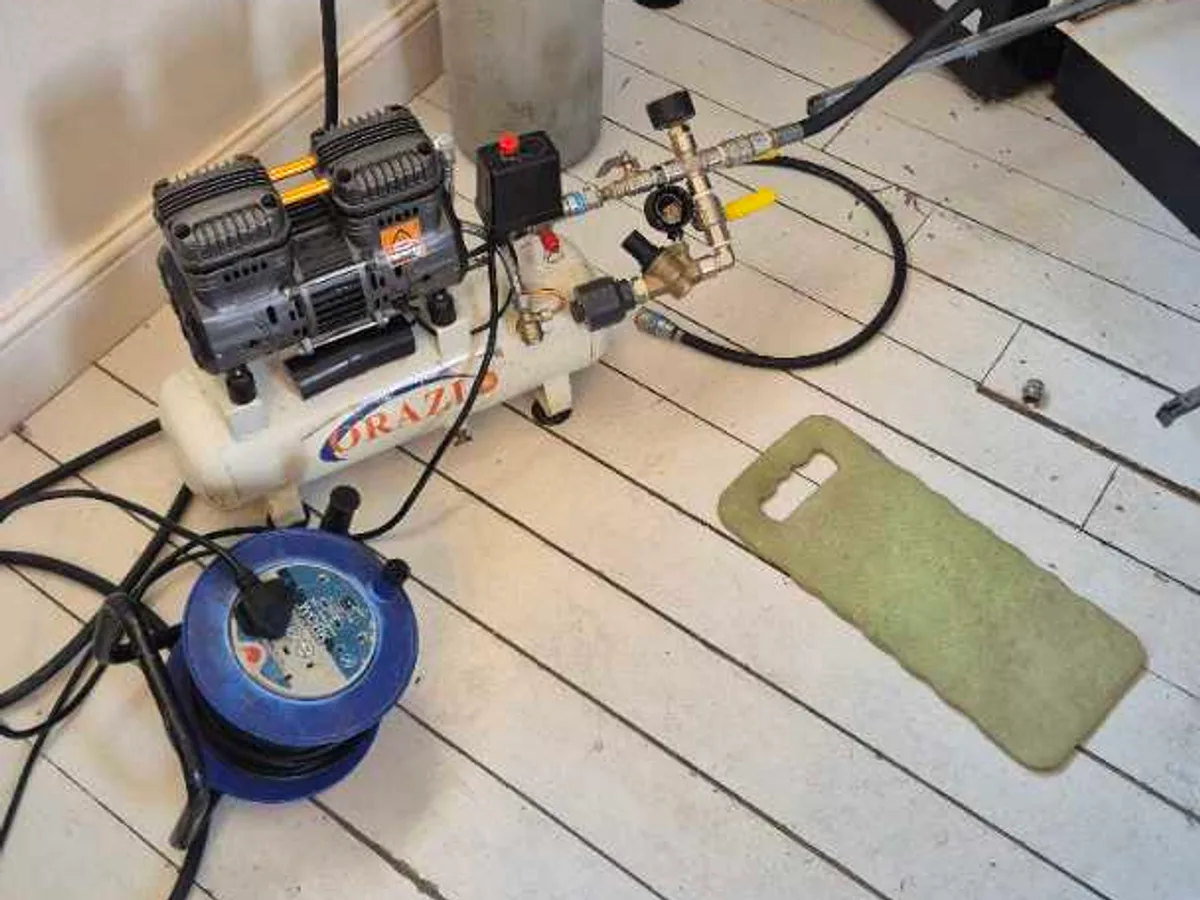

To confirm the finding, the mains supply was isolated and 4.0 bar of compressed air was introduced into the system via a compressor — an immediate pressure drop was recorded, and further sound irregularities were detected from the same location beneath the floor.

A damp meter survey was conducted across all affected areas, returning maximum readings throughout and corroborating the acoustic findings. Access was then made by carefully removing the wooden flooring and screed, which exposed the failed section of 15mm copper mains supply pipe.

This approach — moving from non-invasive acoustic testing through to targeted access — is standard practice in water mains leak detection, and on this job it allowed the failure point to be confirmed with precision before any opening-up work began.

Investigation Process

1. 1
   Arrival and initial observation

   On arrival at the property in TW2, noise was noted on the water main with no water in use, confirming that an active leak was present within the supply system.

2. 2
   Visual inspection of affected areas

   A visual inspection of the kitchen identified evidence of a leak and associated damage to the walls and floor, indicating the leak had been ongoing for some time.

3. 3
   Acoustic test on mains supply

   An acoustic test was performed along the mains supply line, revealing a sound irregularity beneath the floor in the area between the kitchen and dining room.

4. 4
   Mains isolated and pressure test applied

   The mains supply was isolated and an air compressor was connected to the system. A pressure of 4.0 bar was introduced, resulting in an immediate pressure drop and further sound irregularities from the same area beneath the floor.

5. 5

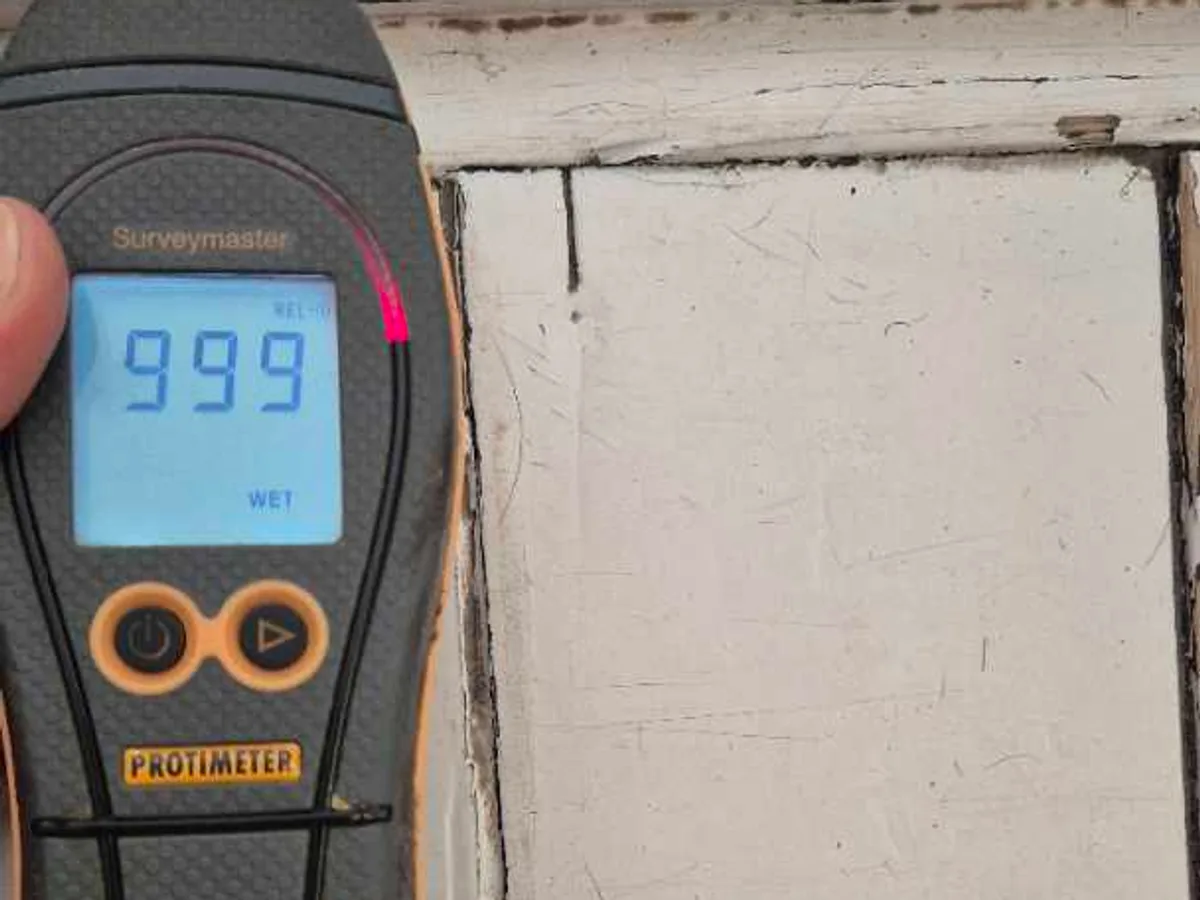

   Damp meter survey

   A damp meter test was carried out across all affected areas, returning maximum readings throughout and confirming the extent of moisture damage consistent with a pressurised leak.

6. 6

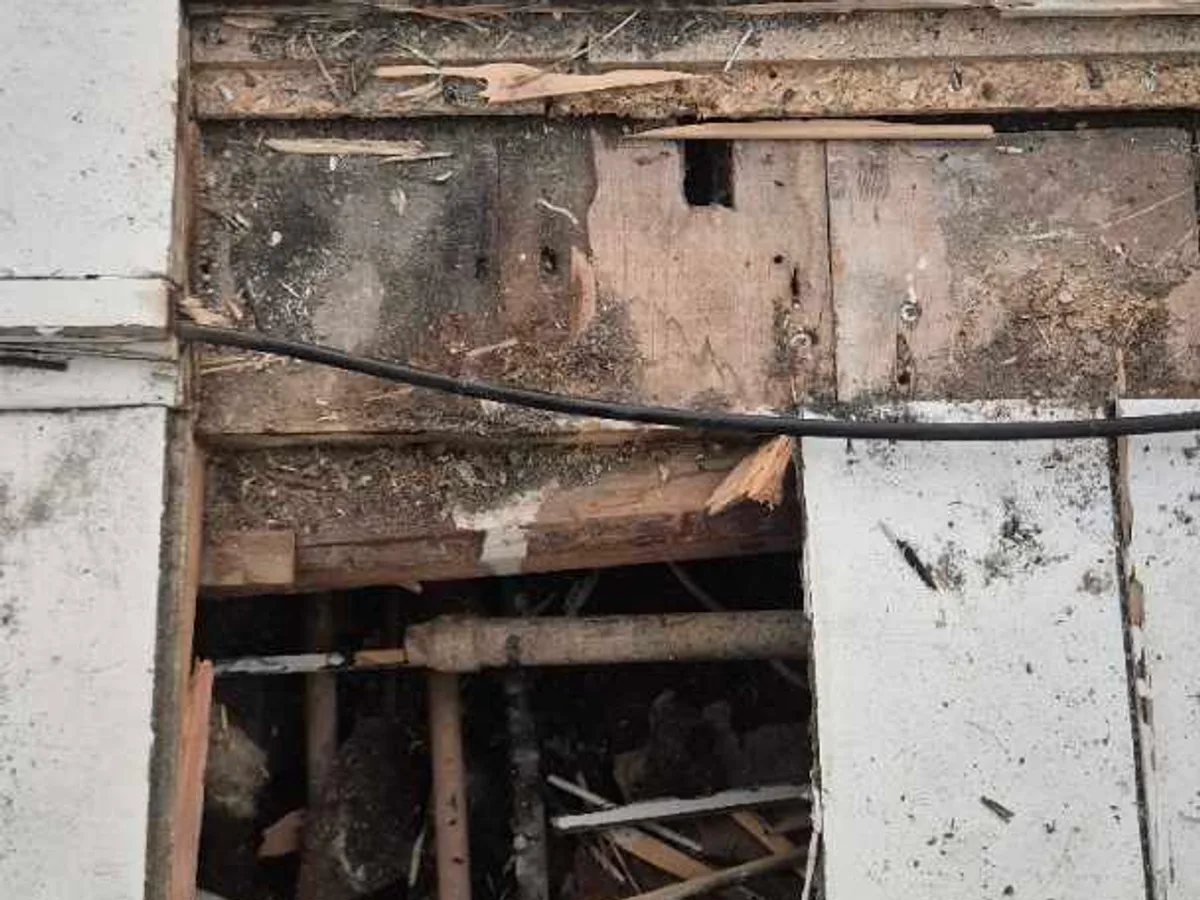

   Access and leak exposed

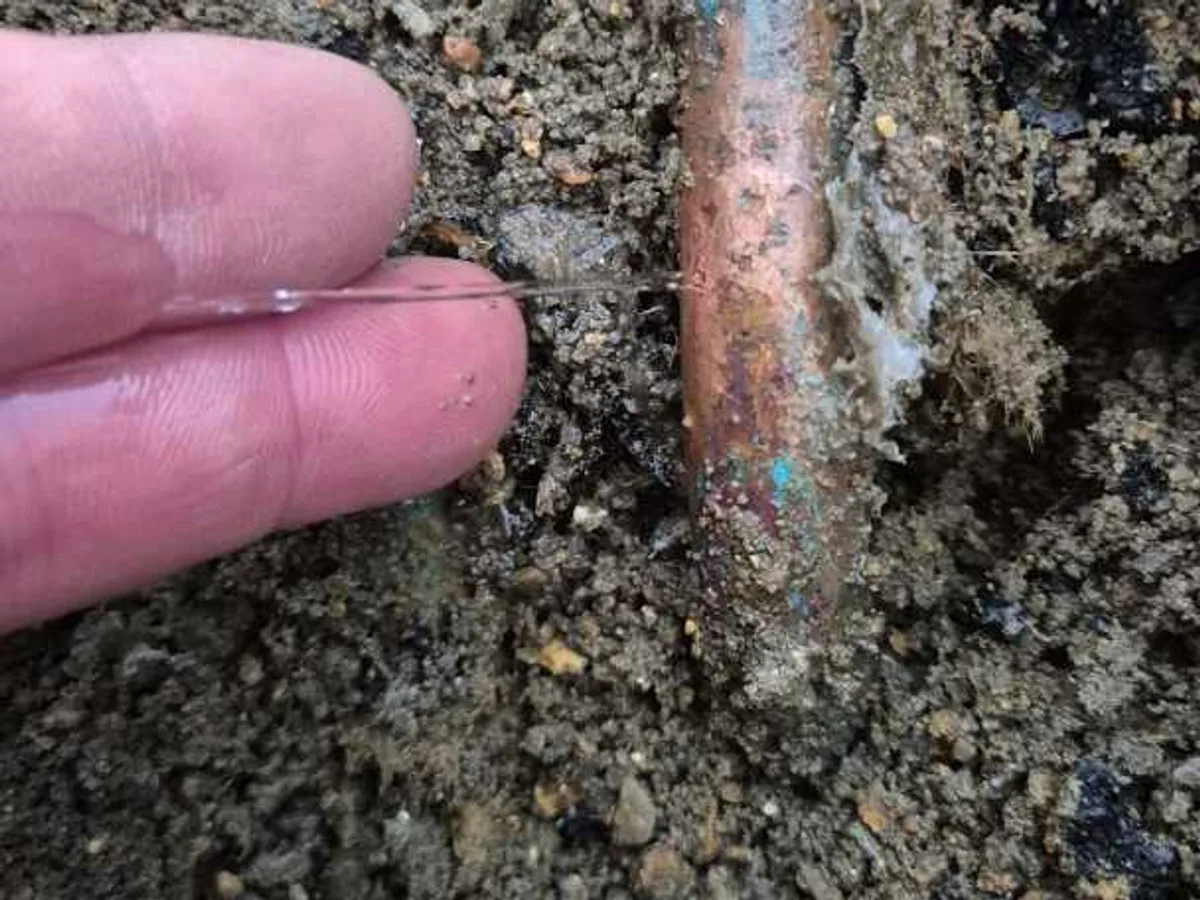

   The wooden flooring and screed were carefully removed in the identified area, exposing the failed 15mm copper mains supply pipe beneath the kitchen floor.

7. 7

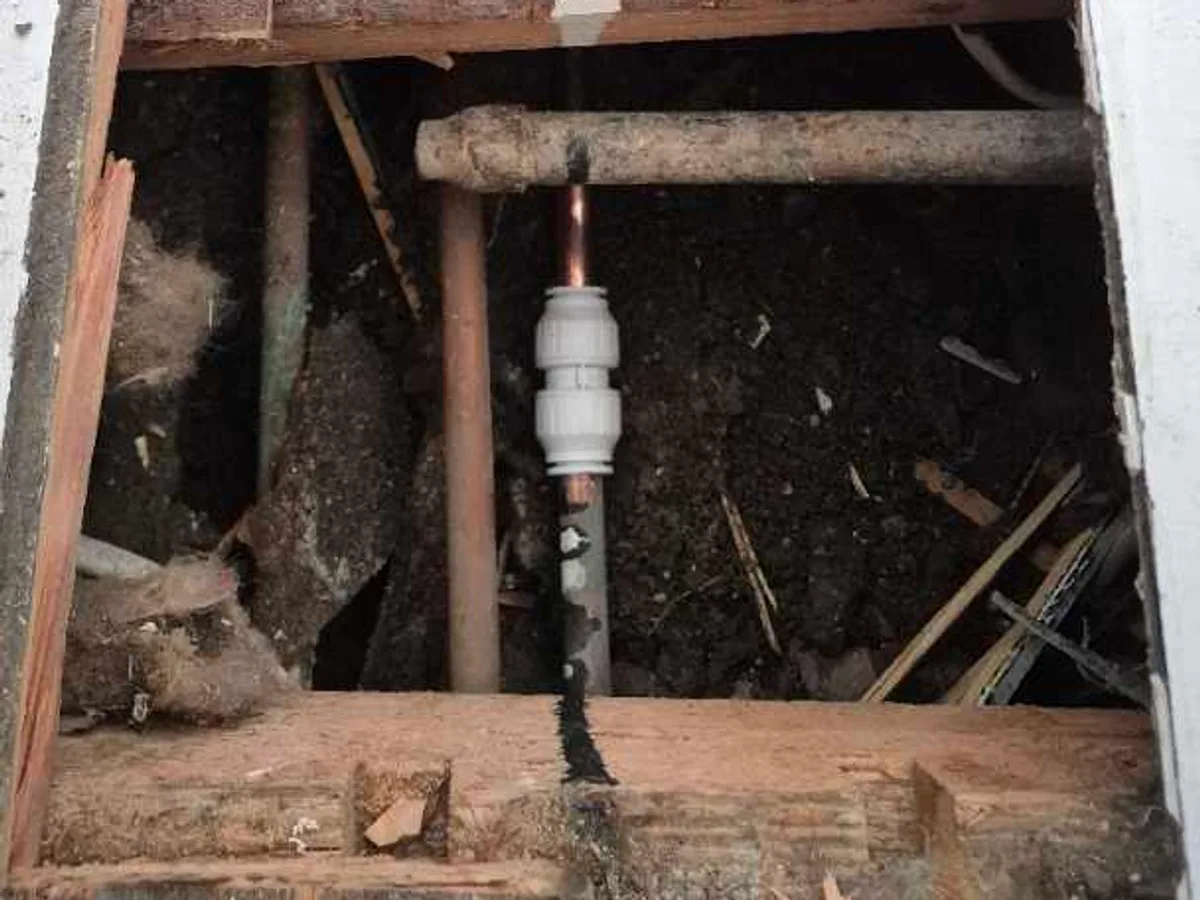

   Repair carried out

   The compromised section of 15mm copper mains supply pipe was renewed, restoring the integrity of the supply line.

8. 8
   Post-repair pressure test

   The system was retested at 4.0 bar of compressed air over one hour following the repair, and the test passed successfully, confirming the leak had been fully resolved.

Result & Outcome

The leak was located beneath the floor between the kitchen and dining room, where a section of 15mm copper mains supply pipe had failed. The combination of acoustic correlation, pressure testing, and damp meter readings allowed the fault to be pinpointed before access was made, keeping the area of opening-up work to a minimum.

Once exposed, the failed section of pipe was renewed and the system was pressure tested at 4.0 bar for one hour. The test passed without issue, confirming that the repair was complete and the supply was fully restored. For a water mains leak detection job of this type — where the pipe runs beneath a finished floor — the ability to confirm the precise location before cutting into the floor is essential to limiting unnecessary damage.

The customer has been advised to forward this report to their insurance company to support the arrangement of all necessary remedial works to the affected walls and floor.
