Underground Water Mains Leak Detection in Gloucester

Symptoms

The property in GL4 — a detached 1960s house — developed a leak on the incoming water mains supply. With the internal stopcock located in the downstairs WC and the external stopcock positioned just outside the boundary, the system was isolated at the internal stopcock to cut off flow into the property.

Despite this, the water meter continued to spin, confirming that water was still escaping somewhere on the supply pipe between the external stopcock and the internal isolation point.

A spinning meter with no internal water in use is a reliable indicator of an active underground leak. In a water mains leak detection scenario like this, the loss is typically occurring on the buried section of the incoming supply, which at a 1960s property is often original pipework that has never been replaced.

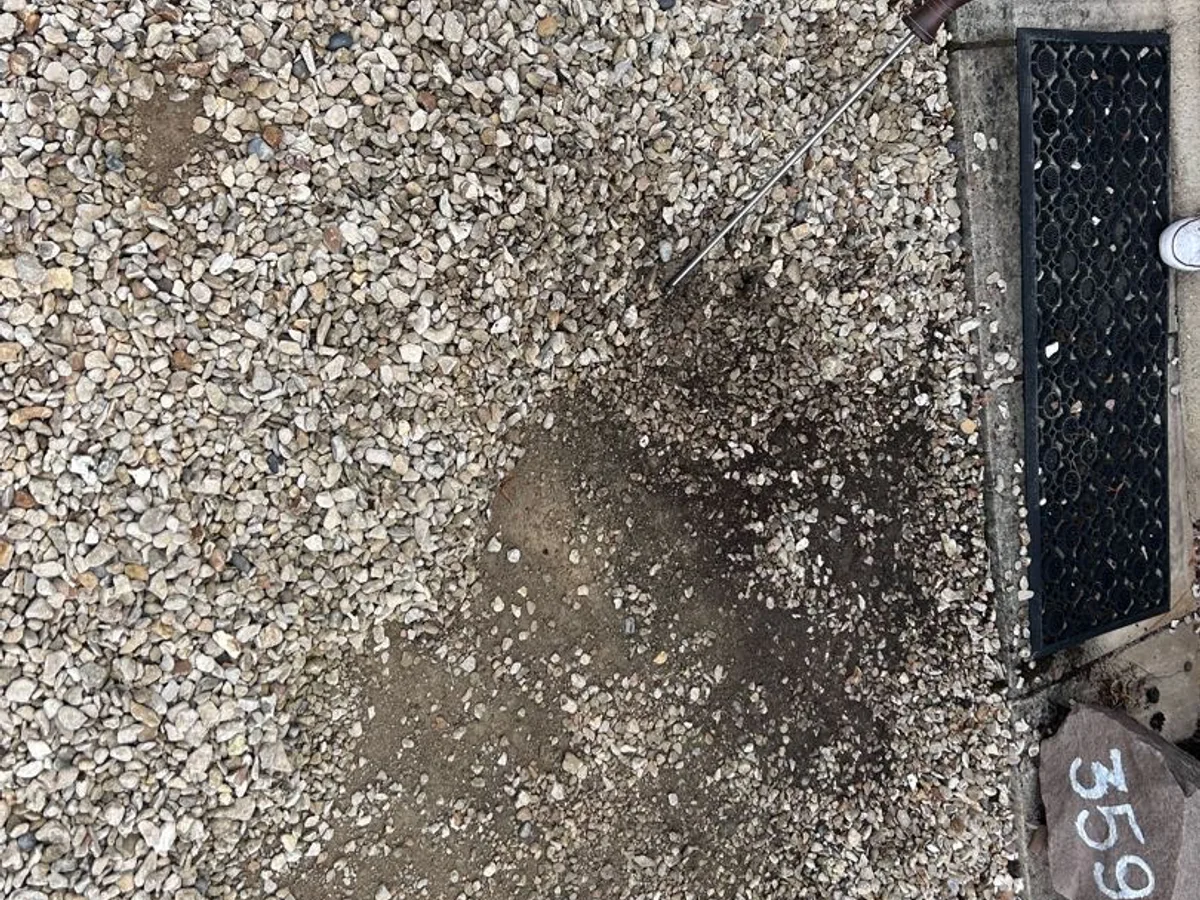

The leak was undetectable from the surface, requiring specialist equipment to pinpoint the fault.

Additionally, when the ground was eventually excavated, a previous repair was found in the same area, suggesting this section of pipework had a known history of problems.

Methods Used

With the internal stopcock closed and the meter still running, the leak was confirmed to be on the underground section of the incoming mains. Acoustic listening equipment was deployed along the pipe route to detect the sound of water escaping under pressure.

By moving the equipment methodically along the surface above the buried pipework, the engineer was able to identify the precise point where the leak signal was strongest and mark the ground for excavation.

Water mains leak detection of this type — on an older property with buried supply pipework — relies on acoustic methods because the leak is not visible and cannot be traced without specialist equipment. Once the ground was opened, a visual inspection confirmed the fault location and also revealed a previous repair in the same area, which was assessed and found to be intact.

Investigation Process

1. 1
   Internal stopcock isolated

   On arrival, the internal stopcock in the downstairs WC was closed to prevent further water flow into the property. The meter continued to spin, confirming an active leak on the incoming mains.

2. 2
   Acoustic survey carried out

   Acoustic listening equipment was used along the pipe route to detect the leak signal. The equipment identified the precise location of the fault beneath the ground surface.

3. 3
   Excavation and inspection

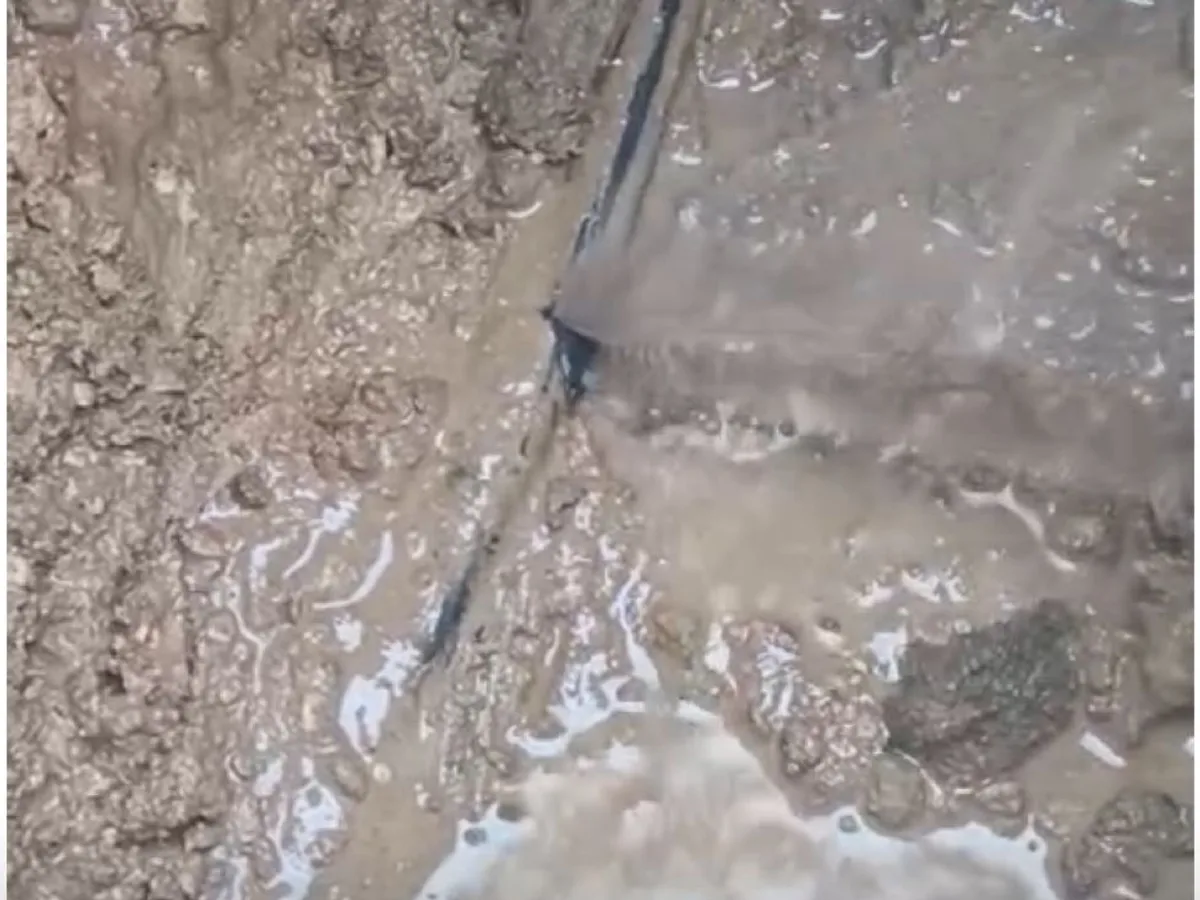

   The ground was excavated to expose the water mains pipe at the identified location. Inspection revealed the active leak and also uncovered a previous repair in the same area, which was found to be intact and not contributing to the problem.

4. 4
   Pipe section cut out and replaced

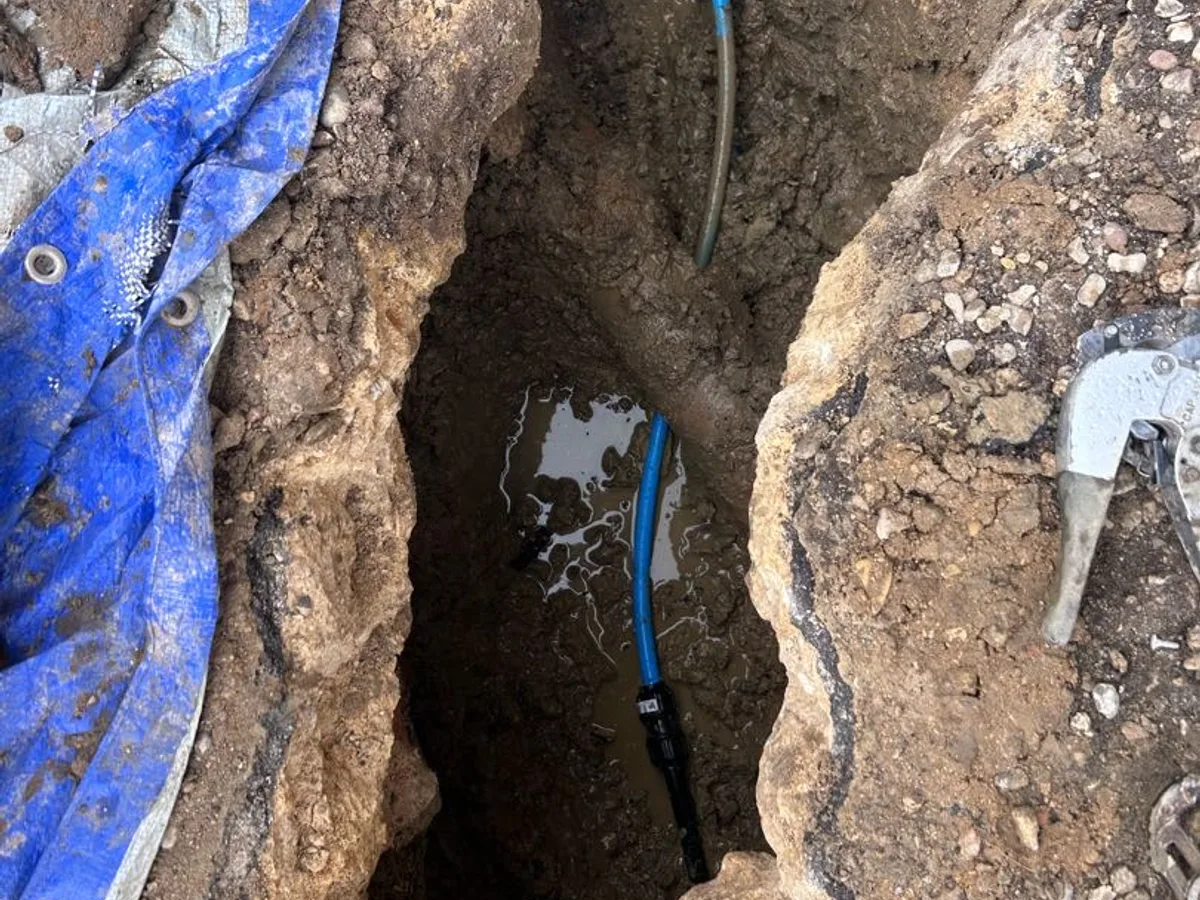

   The damaged section of pipe was cut out and replaced. The existing previous repair was incorporated into the replacement section to reduce the total number of joints in the pipework and improve the long-term integrity of the supply.

5. 5
   Pressure test completed

   The reinstated pipework was pressure tested after repair. Results confirmed the leak had been fully resolved with no further loss detected.

Result & Outcome

The leak was located on the buried incoming water mains supply pipe at a property in GL4, identified using acoustic listening equipment and confirmed by excavation. The damaged section was cut out and replaced, with the previous repair in the same area incorporated into the new pipework to minimise the number of joints and reduce future risk of failure at that point.

Pressure testing after the repair returned a clear result, confirming the mains supply had been fully reinstated with no remaining loss. The water meter, which had continued to spin even with the internal stopcock closed, would now return to normal behaviour with the supply running through sound, properly jointed pipework.

For a water mains leak detection job on a 1960s property like this, finding and addressing a pre-existing repair in the same area during the same excavation is a practical outcome — the replacement section now covers what was a known weak zone in the supply pipe.
