Underground Water Mains Leak Detection in Chinnor

Symptoms

Water mains leak detection was required to establish whether the source was the mains supply feeding the building and, if so, to pinpoint the exact location. There were two external supply chambers at the front of the pub, adding complexity to isolating which supply line was involved before any investigation inside could begin.

Methods Used

With the leak confirmed on that supply line, permission was granted to expose the ground at the affected area. This physical excavation allowed the engineer to directly inspect the pipe condition and the surrounding construction — a step that proved critical in understanding not just where the leak was, but how the damage had occurred.

Water mains leak detection work of this kind, where acoustic findings are followed by targeted exposure, gives a precise result rather than an estimate.

Investigation Process

1. 1
   External chambers checked

   Two supply chambers were identified outside the front of the pub. The plastic chamber was accessible, contained a meter, showed no movement, and was shut off — confirming it fed only the right-hand toilets and basin. The steel chamber could not be opened.

2. 2
   Wet area and pipe identified inside

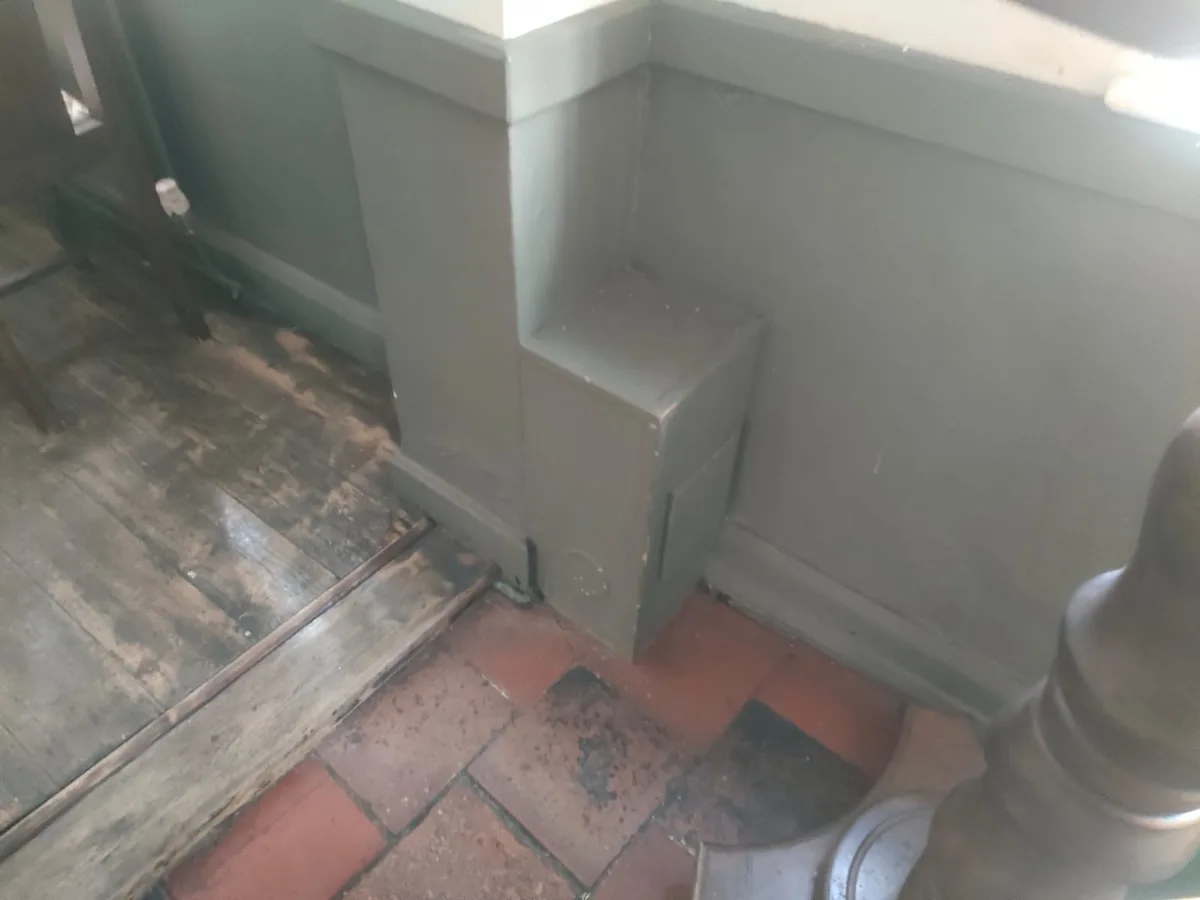

   Inside the pub, water was visible on the floor at the door threshold. The mat was lifted and found to be heavily saturated underneath. A copper pipe was observed entering the ground at this point.

3. 3
   Acoustic anomaly detected

   Acoustic correlation equipment was applied at the copper pipe entering the ground, and a clear anomaly was detected from that pipe.

4. 4
   Internal stopcock located and unseized

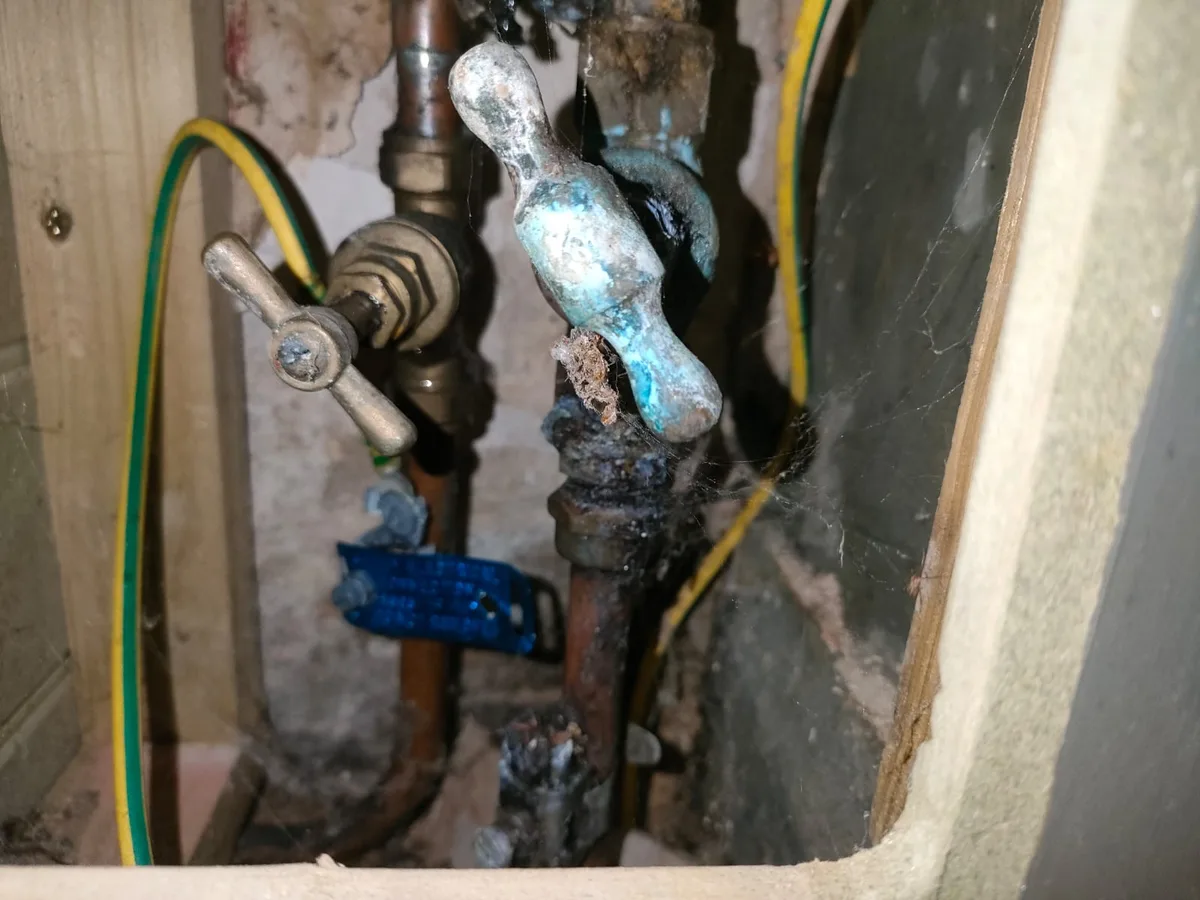

   The access panel on the outside wall for the internal stopcock was unscrewed to gain access. The stopcock had seized and had to be freed before it could be operated.

5. 5
   Stopcock closed — anomaly confirmed

   Once the internal stopcock was closed on that supply line, the acoustic anomalies disappeared, confirming this pipe as the source of the leak.

6. 6
   Ground exposed

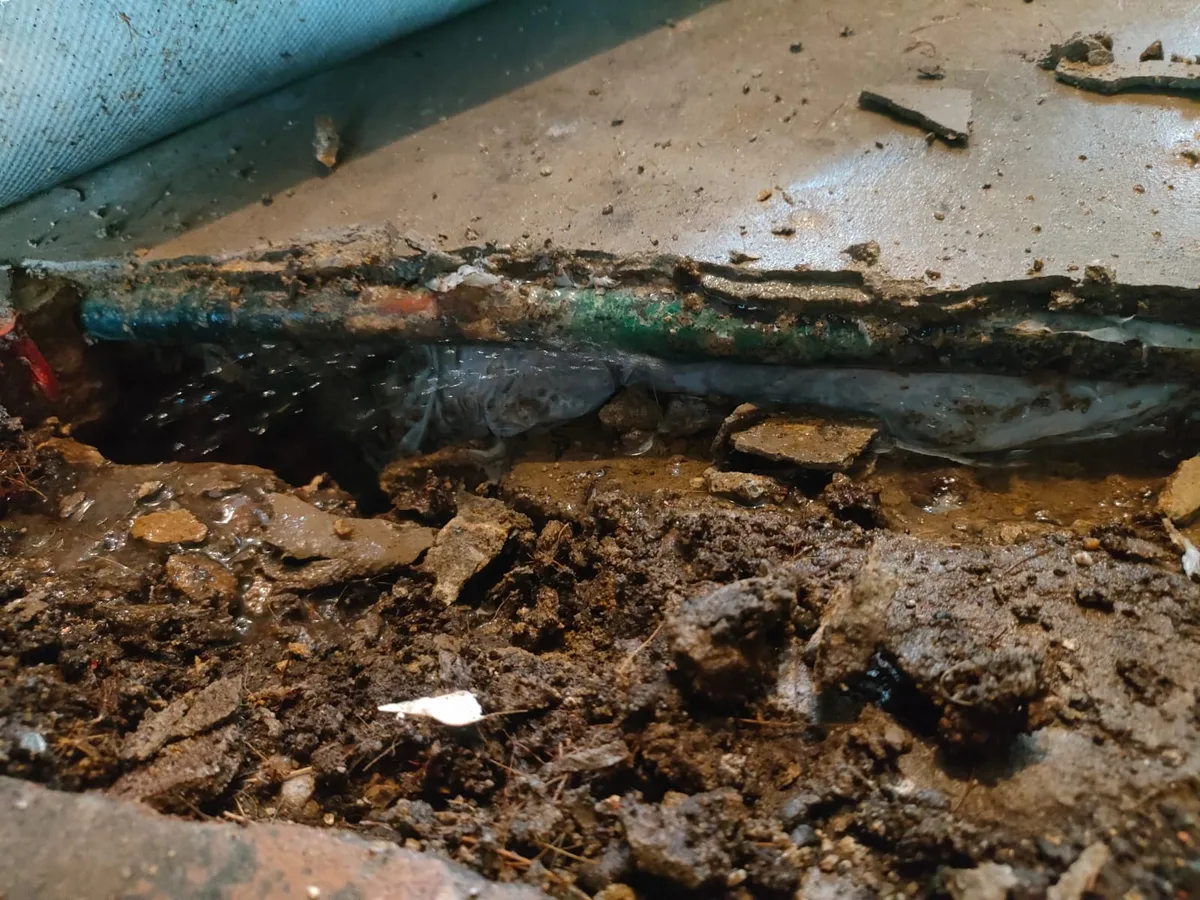

   With permission, the ground at the threshold was excavated. The area was found to be very wet, and the surrounding construction was immediately notable — there was no pipe protection and a very hard concrete mix had been used around the pipe.

7. 7
   Damage and cause identified

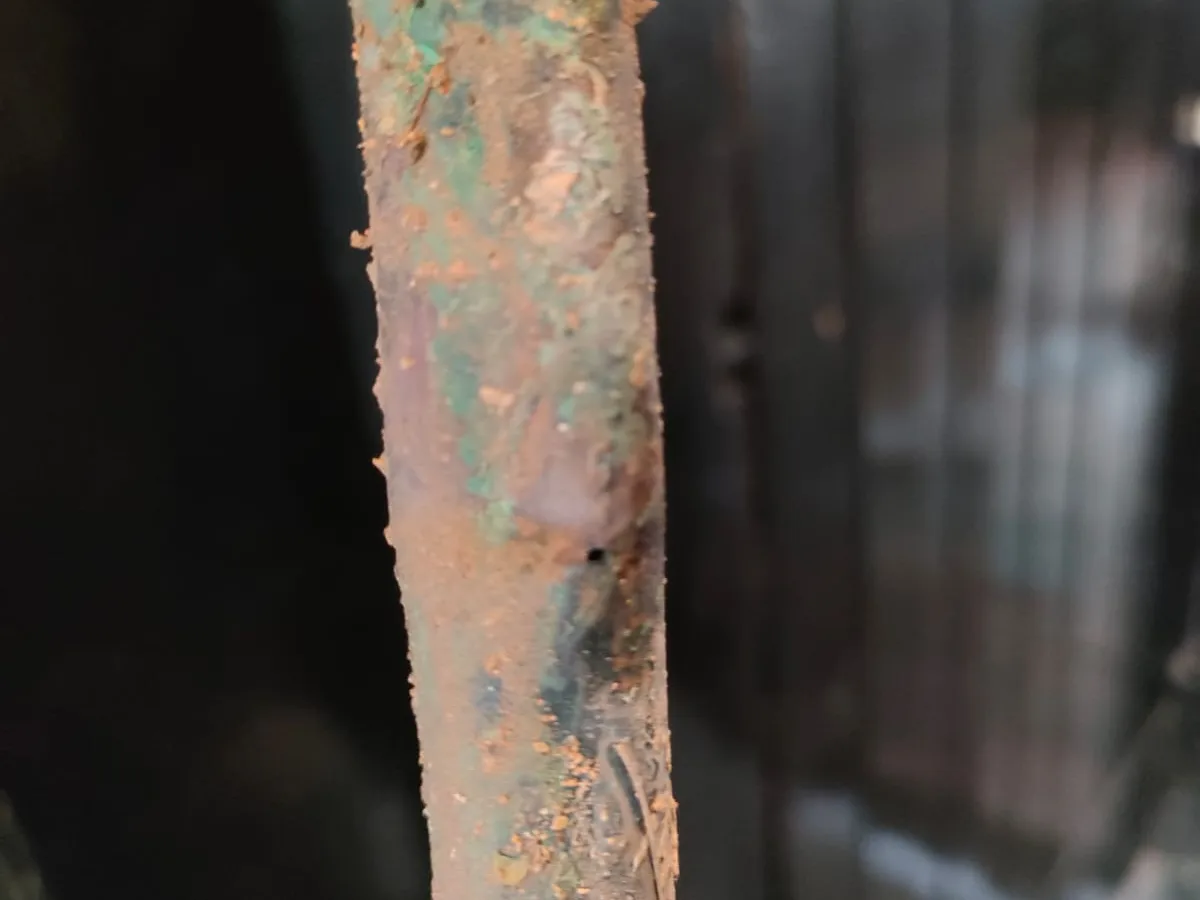

   A clay-coloured plastic drain was visible in the left corner. The pipe had been damaged — a squashed section and a hole were found. Evidence suggested past drain work had caused the damage, with a plastic bag used in an attempt at protection before a hard floor mix was poured, which had further compressed and damaged the copper pipe.

8. 8
   Temporary repair carried out

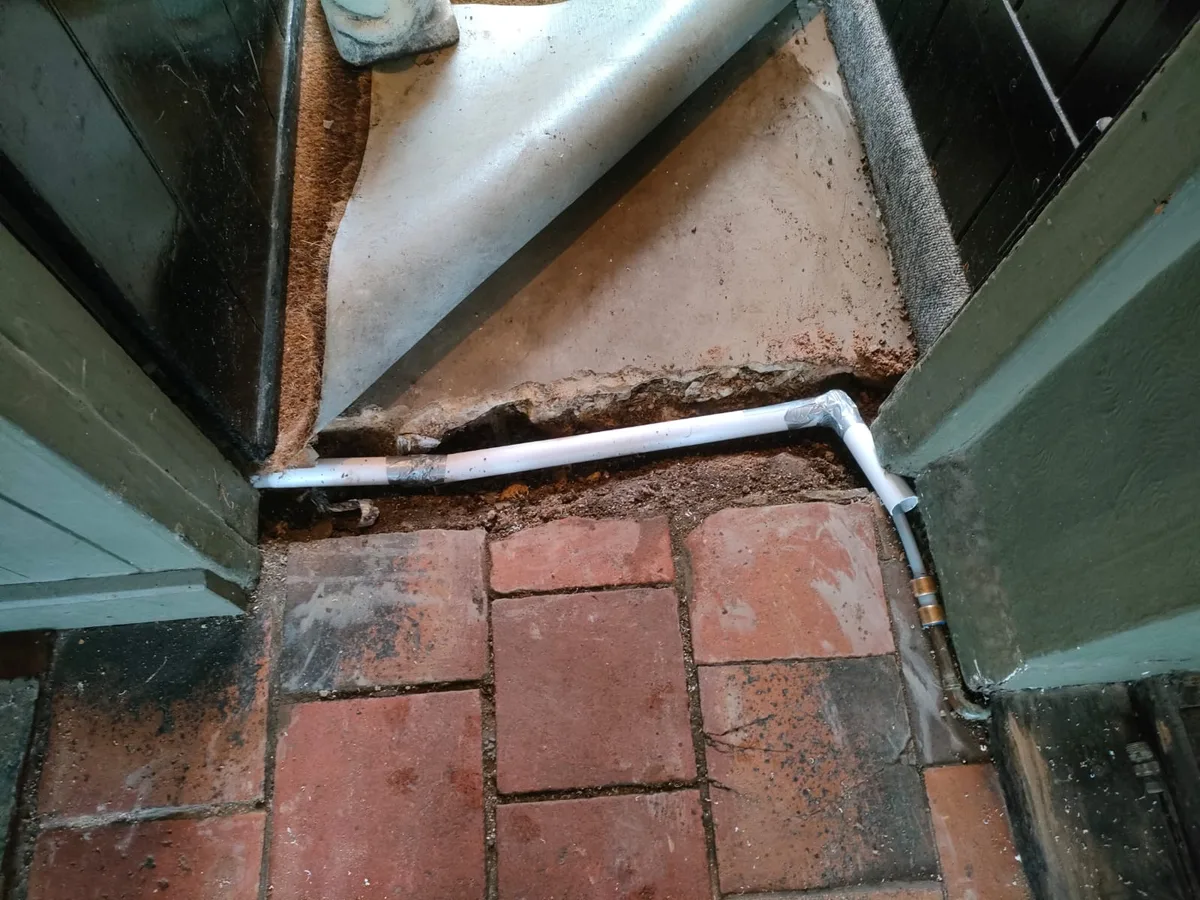

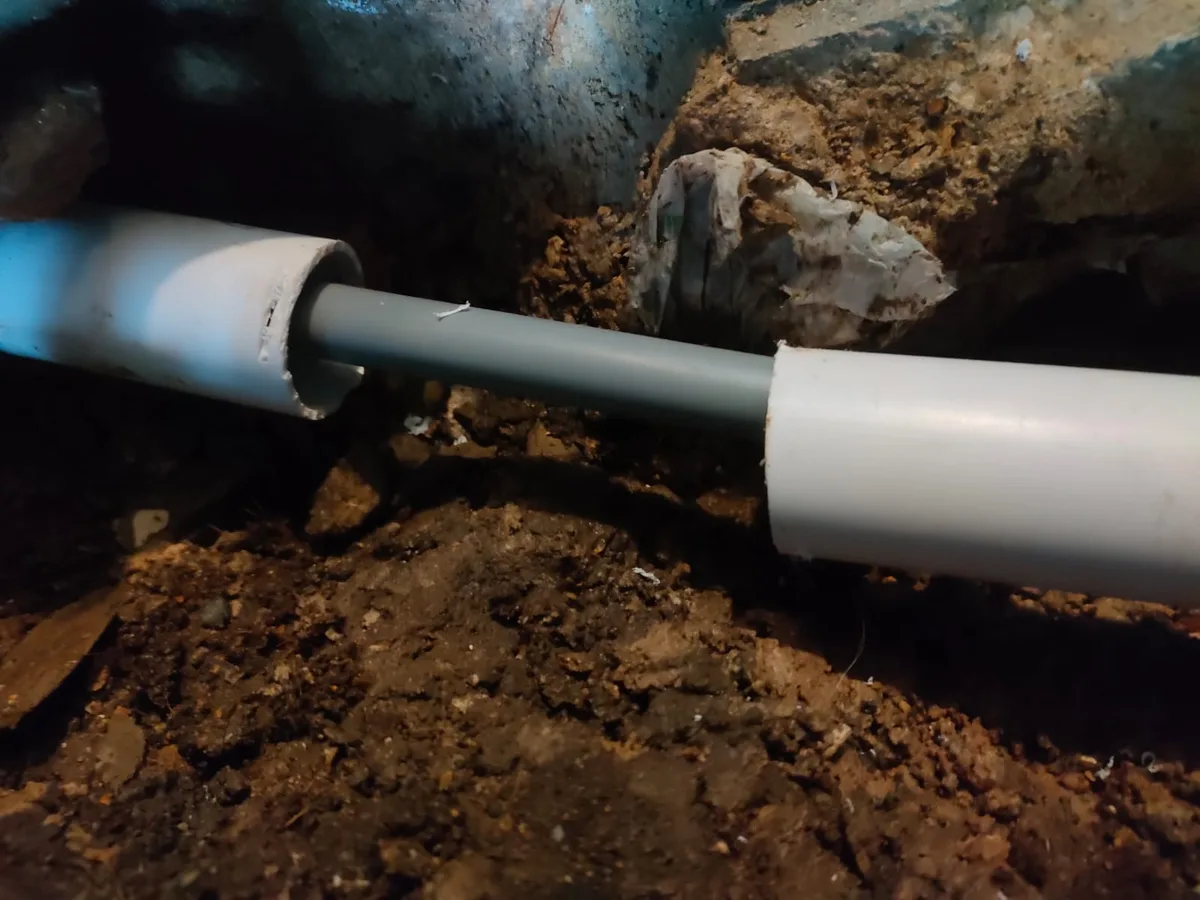

   Because the area would flood if the mains were turned back on without a repair, a temporary repair was completed using plastic fittings and pipework, with the repaired section sleeved in plastic ducting to protect it. Water was restored to the bar the same day.

Result & Outcome

For a water mains leak detection job in a licensed premises, restoring supply the same day was the priority outcome — and that was achieved. The investigation moved from external meter checks through acoustic detection to physical exposure in a logical sequence, each step narrowing the location before ground was broken.
