Water Mains Leak Detection in Aylesbury

Symptoms

A water leak had been identified at a property in HP14, prompting the need for a thorough investigation. No visible signs of dampness or structural damage were present on arrival, meaning there were no obvious surface indicators to work from.

The source of the escape was unknown and required specialist detection methods to locate it precisely.

The challenge with a job like this is that the affected pipework runs underground, beneath hardstanding, making visual identification alone insufficient. Water mains leak detection shares many of the same principles, locating a concealed escape beneath a surface with no clear visible clue and the same layered approach to detection applies here.

Identifying the exact point of escape before any excavation was essential to minimise disruption to the driveway.

Methods Used

The investigation used a two-stage approach to progressively narrow down the location of the water escape. Acoustic equipment was applied first, identifying a strong reading in the middle of the driveway.

The tracer gas supply was then connected and a tracer gas test was carried out, which corroborated the acoustic findings and confirmed tracer gas escaping in the same area.

This layered method combining acoustic correlation with tracer gas is standard practice in underground leak detection, and mirrors the approach used in water mains leak detection where confirmation from more than one method reduces the risk of unnecessary excavation. Once both methods pointed to the same location, the block paving was lifted and the area excavated to expose the pipework and visually confirm the leak.

Investigation Process

1. 1
   Initial Visual Inspection

   On arrival, a thorough visual inspection of the property was conducted. No visible dampness or structural damage was observed, confirming that detection equipment would be required to locate the source.

2. 2
   Acoustic Testing

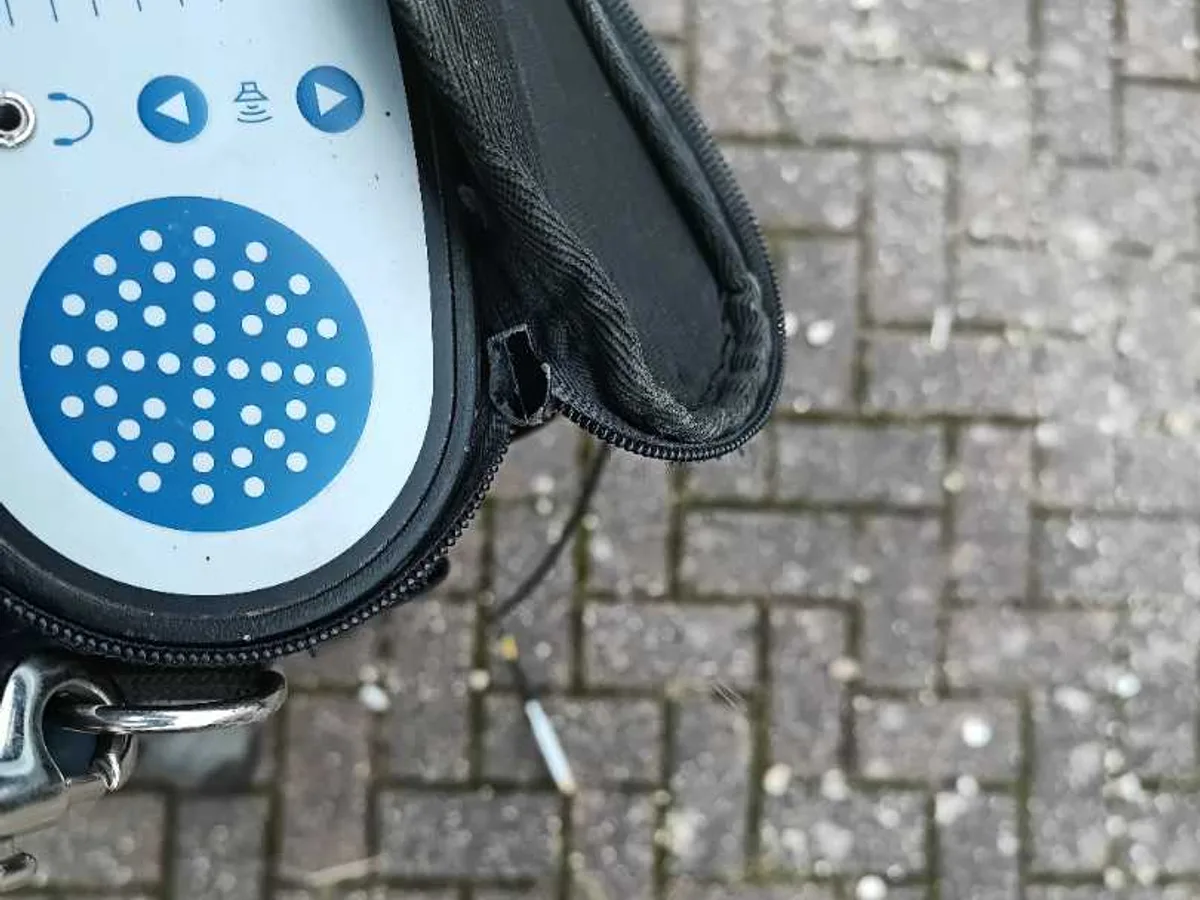

   An acoustic device was applied across the driveway. A strong reading was recorded in the middle of the driveway, identifying it as the primary area of interest.

3. 3
   Tracer Gas Test

   The gas supply was reconnected and a tracer gas test was performed. The results confirmed a gas escape in the same area identified by the acoustic equipment, providing corroborating evidence before any excavation.

4. 4
   Excavation and Visual Confirmation

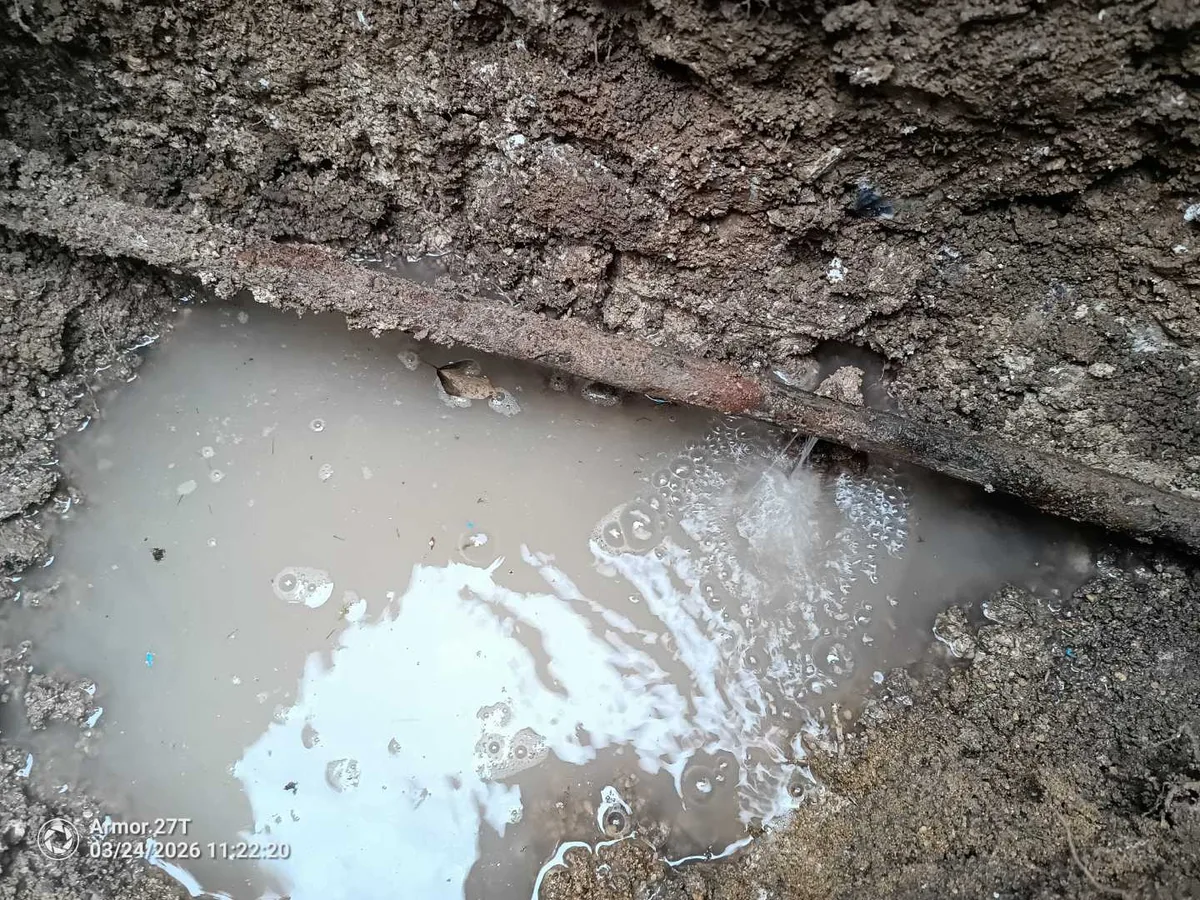

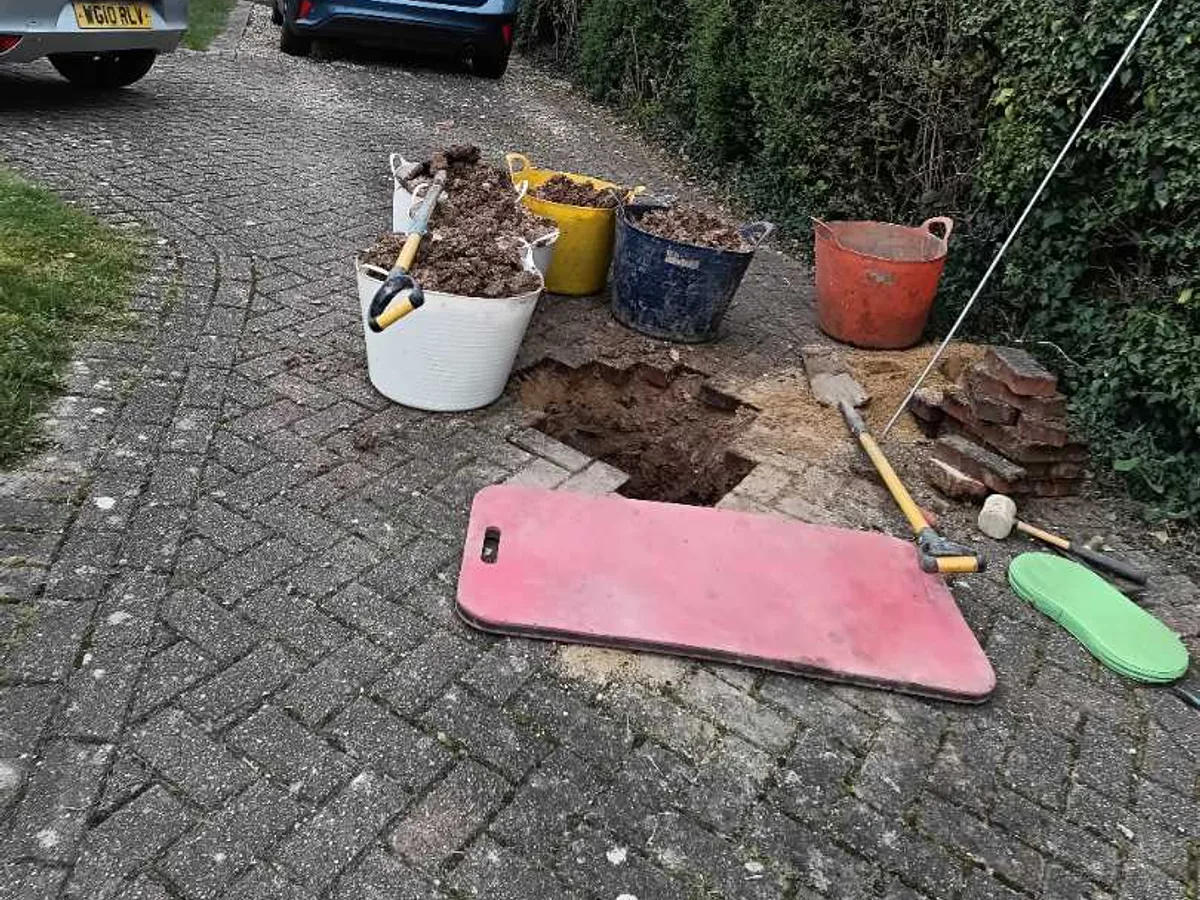

   The block paving was carefully removed and the underlying area excavated. A 20mm metal pipe was exposed, and a visible leak on that pipe was confirmed.

5. 5
   Repair Carried Out

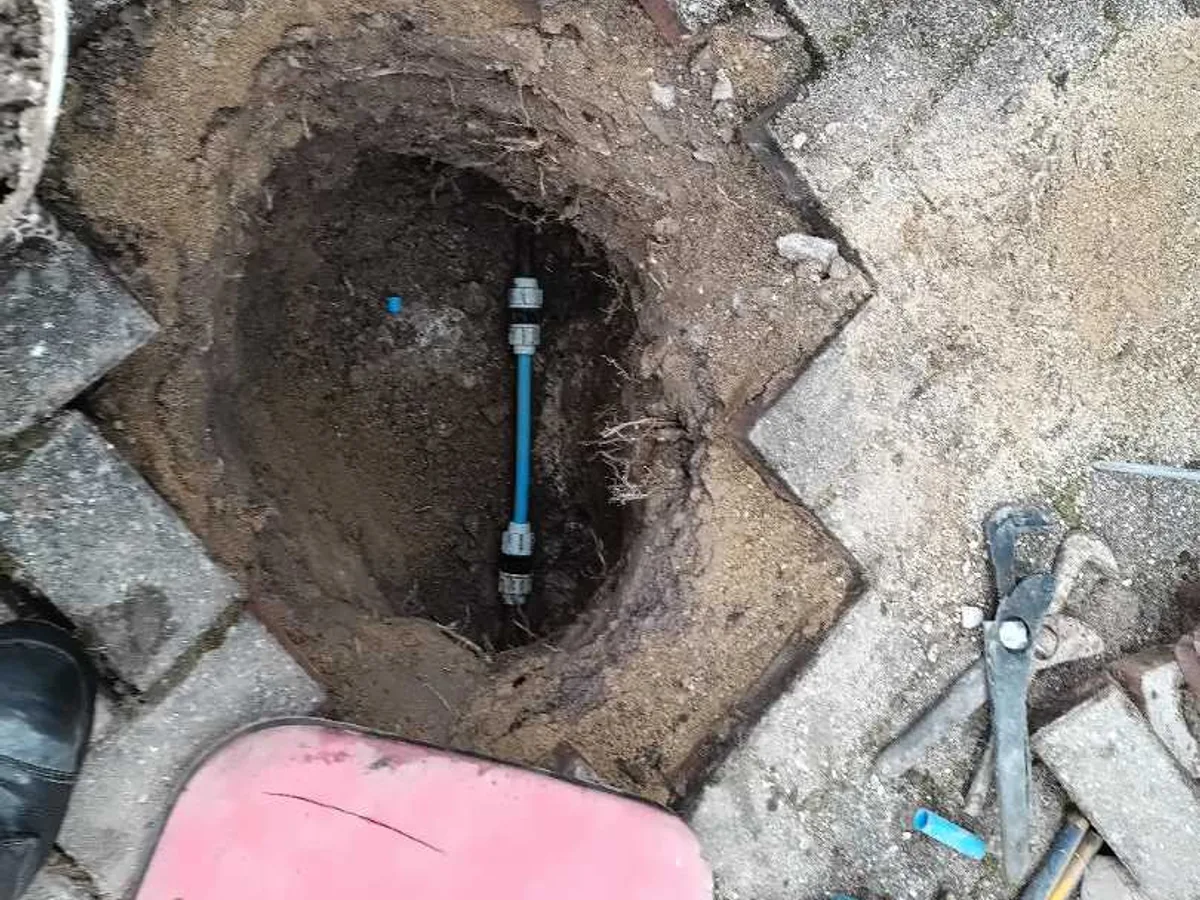

   A repair was completed on the identified leak using 20mm MDPE pipe and two 25mm to 20mm fittings.

6. 6
   Post-Repair Testing

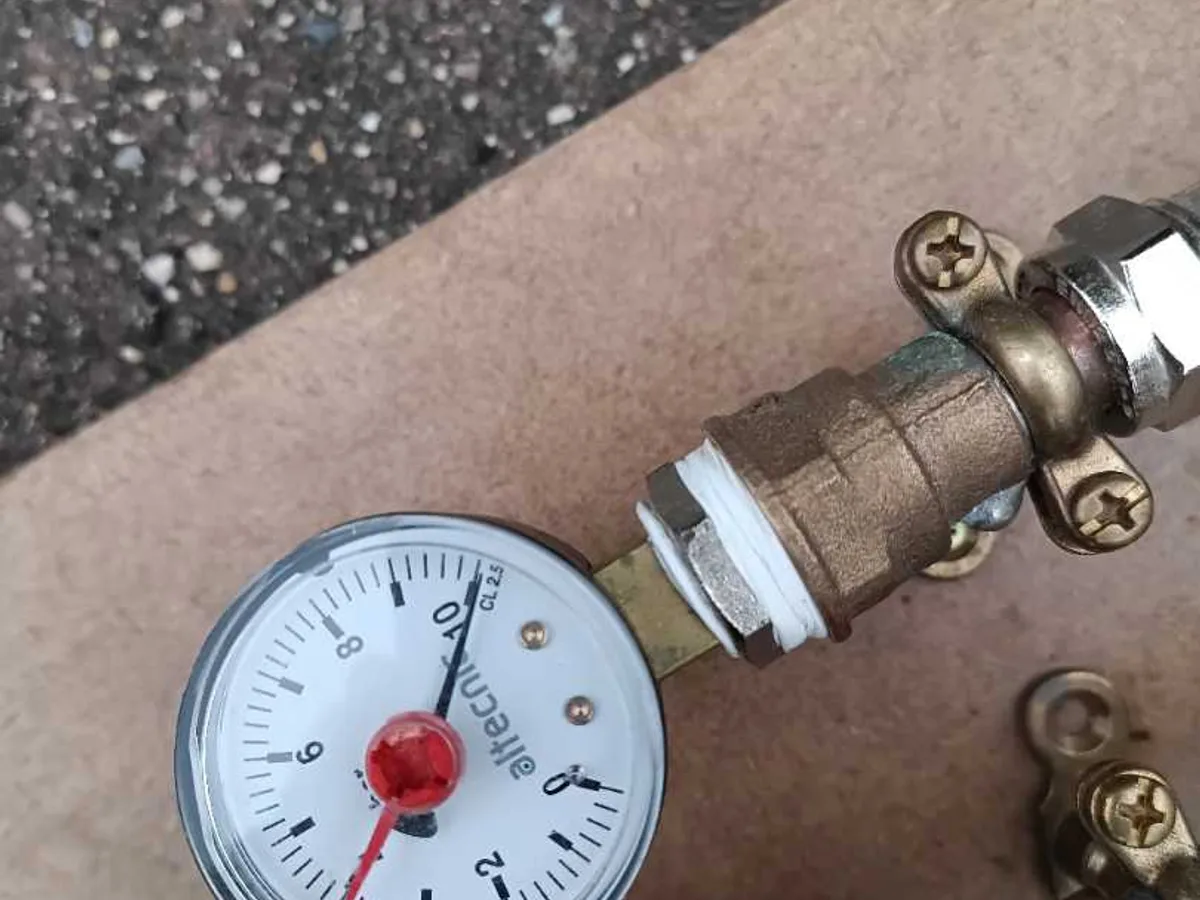

   Following the repair, the pipework was re-tested to confirm the integrity of the system and verify that no further gas escapes were present.

7. 7
   Reinstatement

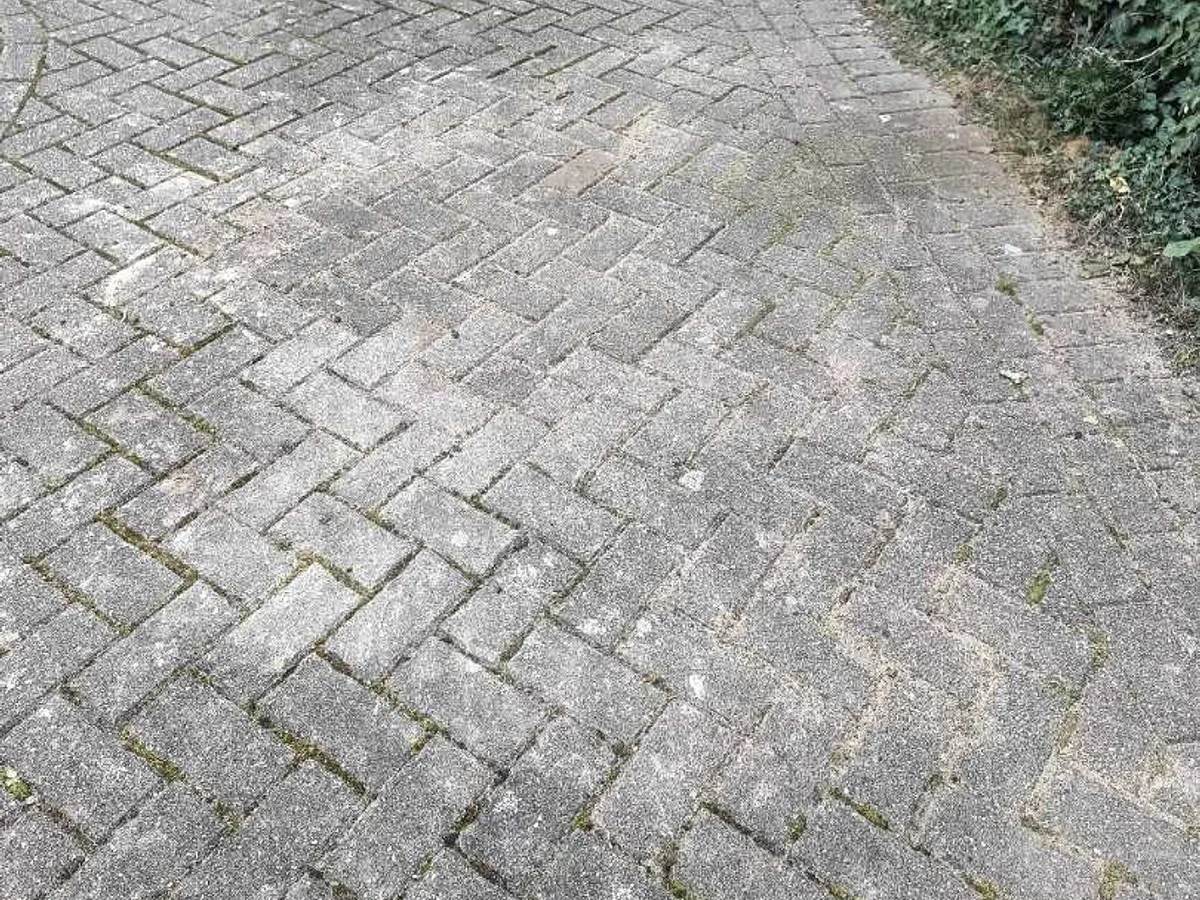

   The excavated area was backfilled and the block paving reinstated to its original condition, leaving the driveway as found.

Result & Outcome

The tracer gas escape was located beneath the middle of the driveway, where a 20mm metal pipe was found to be leaking. Both the acoustic and tracer gas methods had pointed to the same spot, allowing excavation to be targeted precisely rather than speculative. The visible leak on the exposed pipe left no ambiguity about the source.

The repair was completed using 20mm MDPE pipe and two 25mm to 20mm transition fittings, replacing the failed metal pipe section. Post-repair testing confirmed the system was sound with no further escapes present. In water mains leak detection, this kind of confirmed, single-point outcome backed by two independent detection methods gives confidence that the repair addresses the actual source rather than a symptom of a wider problem.

With the block paving lifted for excavation and then reinstated on completion, disruption to the driveway was kept to the minimum area necessary. The property in HP14 was left with pipework restored to a serviceable condition and the surface returned to its original state.
