Hot Water System Leak Detection in Hythe

Symptoms

At a property in SO45, damp walls and wet floorboards were found upon arrival, pointing to an active leak somewhere within the building. The extent of the moisture and its precise origin were not immediately clear, requiring a systematic investigation across multiple areas of the property.

The situation involved both the cold and hot water systems, adding complexity to what was a hot water leak detection job. With visible dampness present but no obvious source, the investigation needed to work through the plumbing methodically — from the water meter and stop valve through to the loft, kitchen floor, and wall cavities.

Methods Used

The investigation began at the water meter and internal stop valve to establish whether the leak was before or after the meter. With the leak confirmed as downstream, attention moved to the loft, where the storage tank and ball valve were inspected.

After issues in the loft were addressed and a pressure test confirmed no fault on the cold-water pipe, the focus shifted to the kitchen area, where dampness in the wall pointed to the hot water pipework.

For a hot water leak detection job of this nature — with moisture visible at the surface but the source concealed behind structure — sectional isolation and pressure testing were essential to narrow down the system before any physical opening-up work began. Once the kitchen kickboard was removed and the wet wall identified, bricks were taken out to expose the pipe and confirm the source.

Investigation Process

1. 1
   Initial Assessment

   The engineer arrived to find damp walls and wet floorboards throughout the affected area. Further investigation was required to determine where the water was coming from.

2. 2
   Water Meter and Stop Valve Check

   The internal stop valve was closed and the water meter was checked — no movement was observed. When the valve was reopened, the meter began moving, confirming the leak was located somewhere after the internal stop valve.

3. 3
   Loft Inspection

   An inspection of the loft was carried out, where water was found dripping inside the storage tank and the ball valve near the loft tank was also dripping. The ball valve was replaced.

4. 4

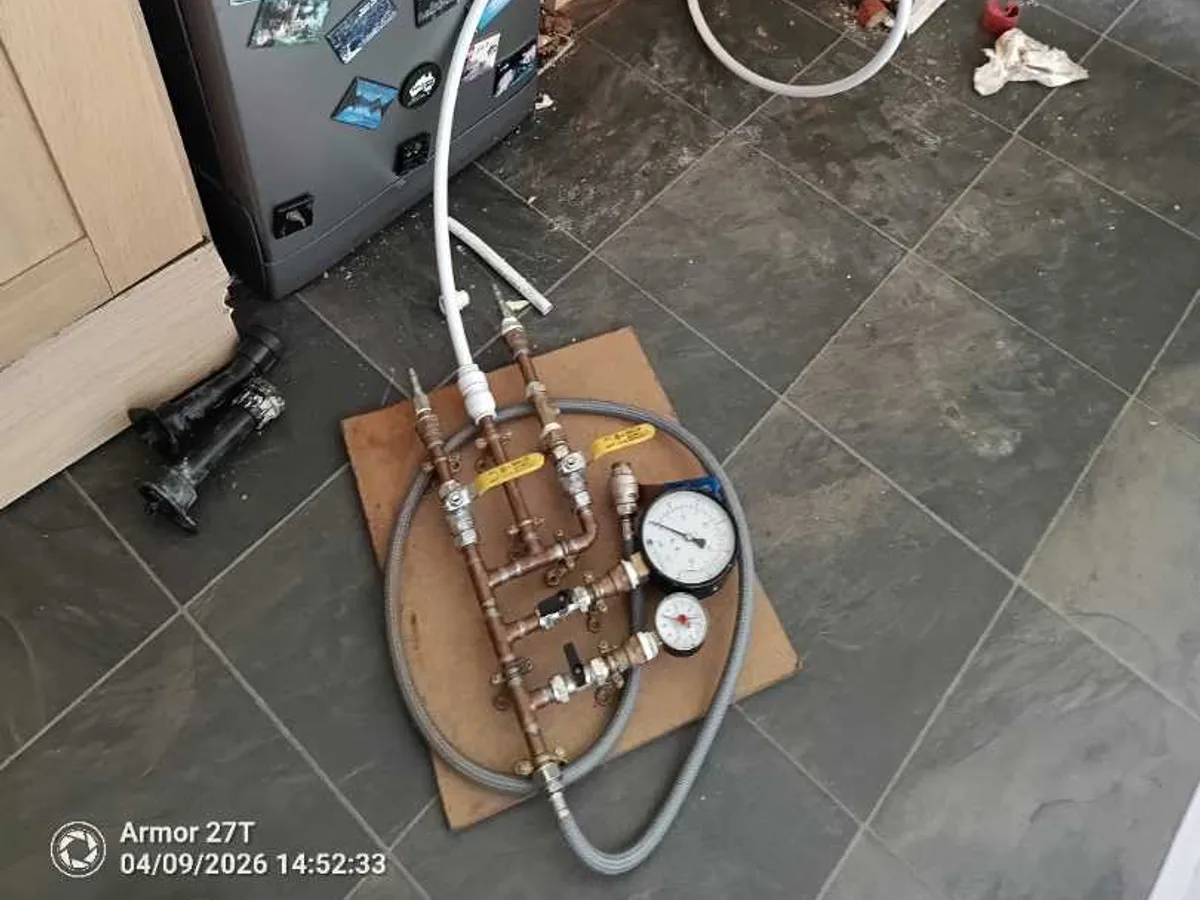

   Cold-Water Pressure Test

   A pressure test was conducted on the cold-water pipe following the ball valve replacement, confirming no leaks were present on that section. The loft tank system was also checked and found to be leak-free.

5. 5

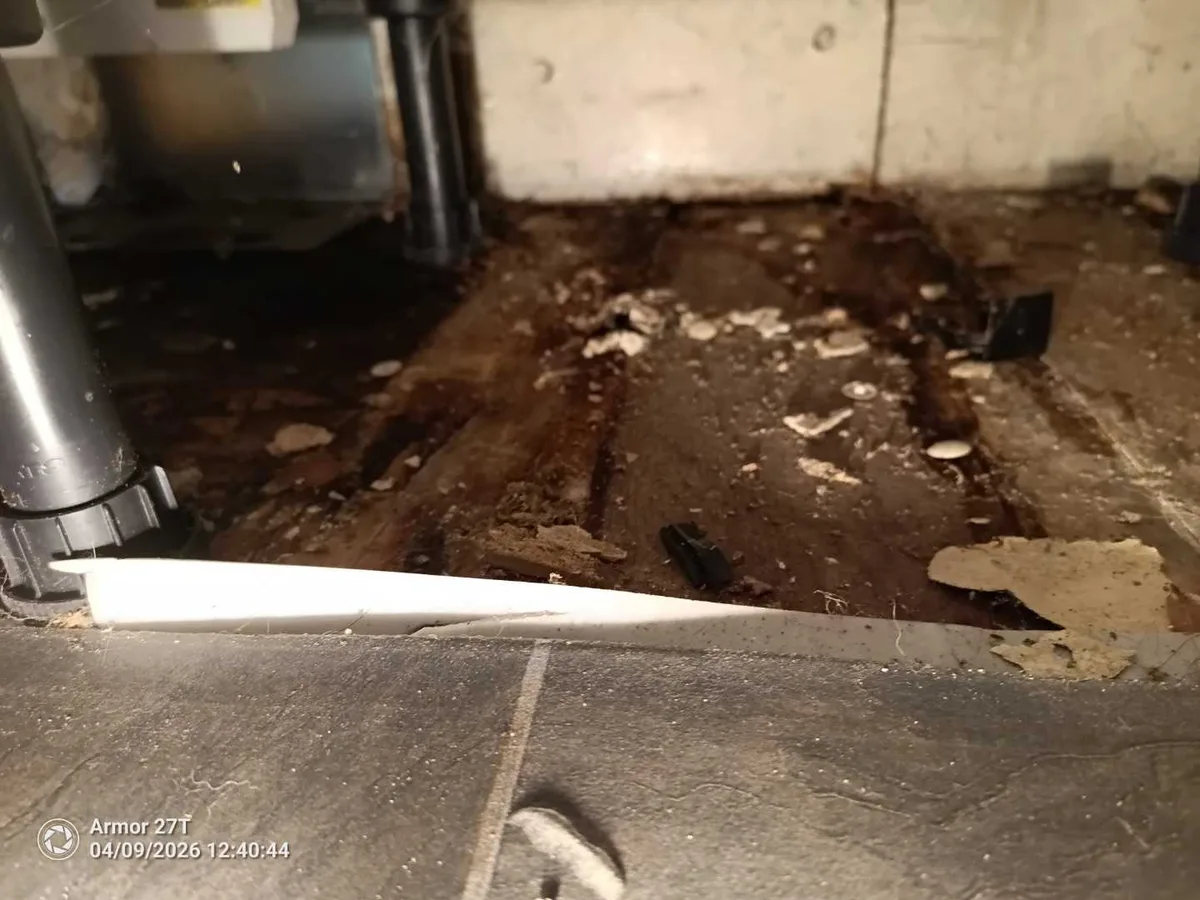

   Kitchen Floor Investigation

   Floorboards beneath the kitchen unit were removed to inspect below the floor, but no leak was found in that area.

6. 6
   Kitchen Wall Inspection

   The kickboard in the kitchen was removed, revealing a wet wall. A leak was identified on the hot-water pipe running inside the brick wall.

7. 7

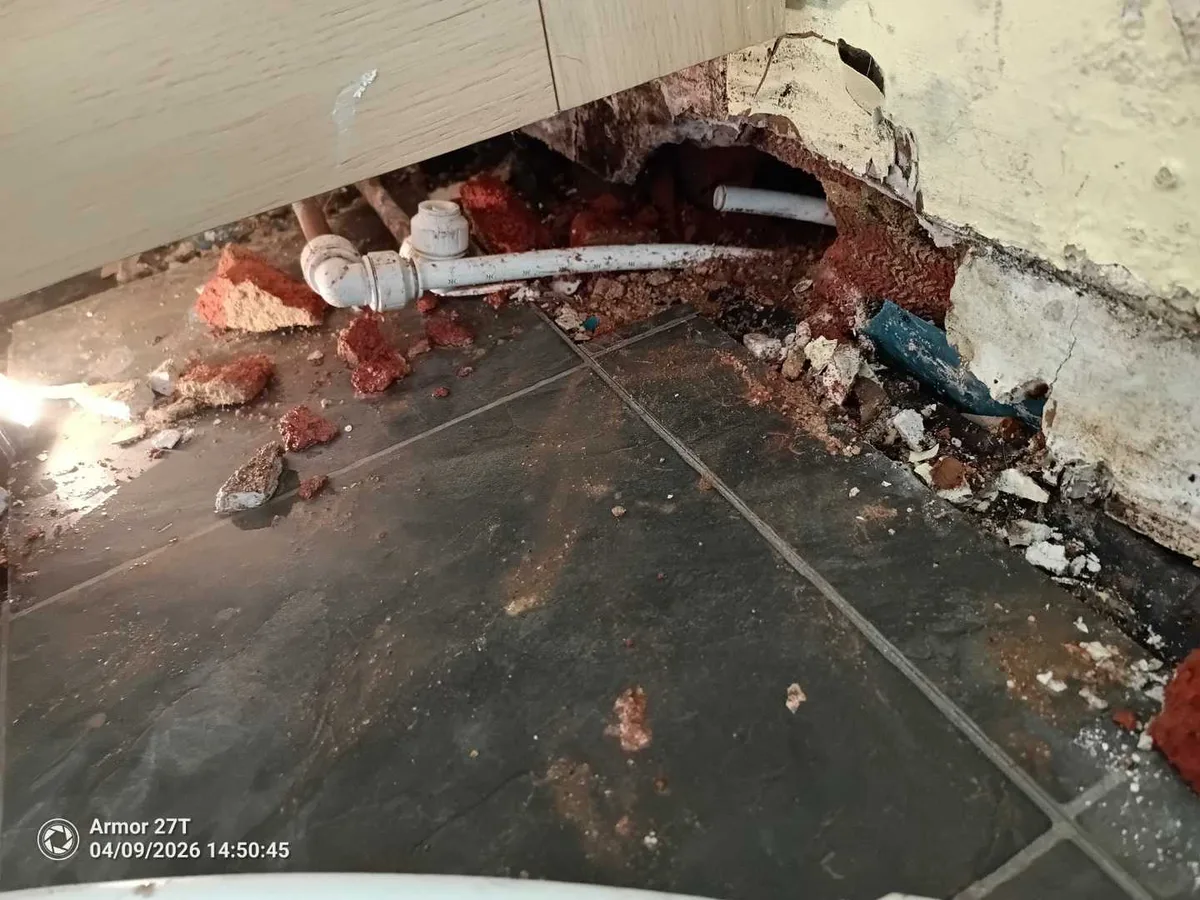

   Brickwork Removed and Pipe Exposed

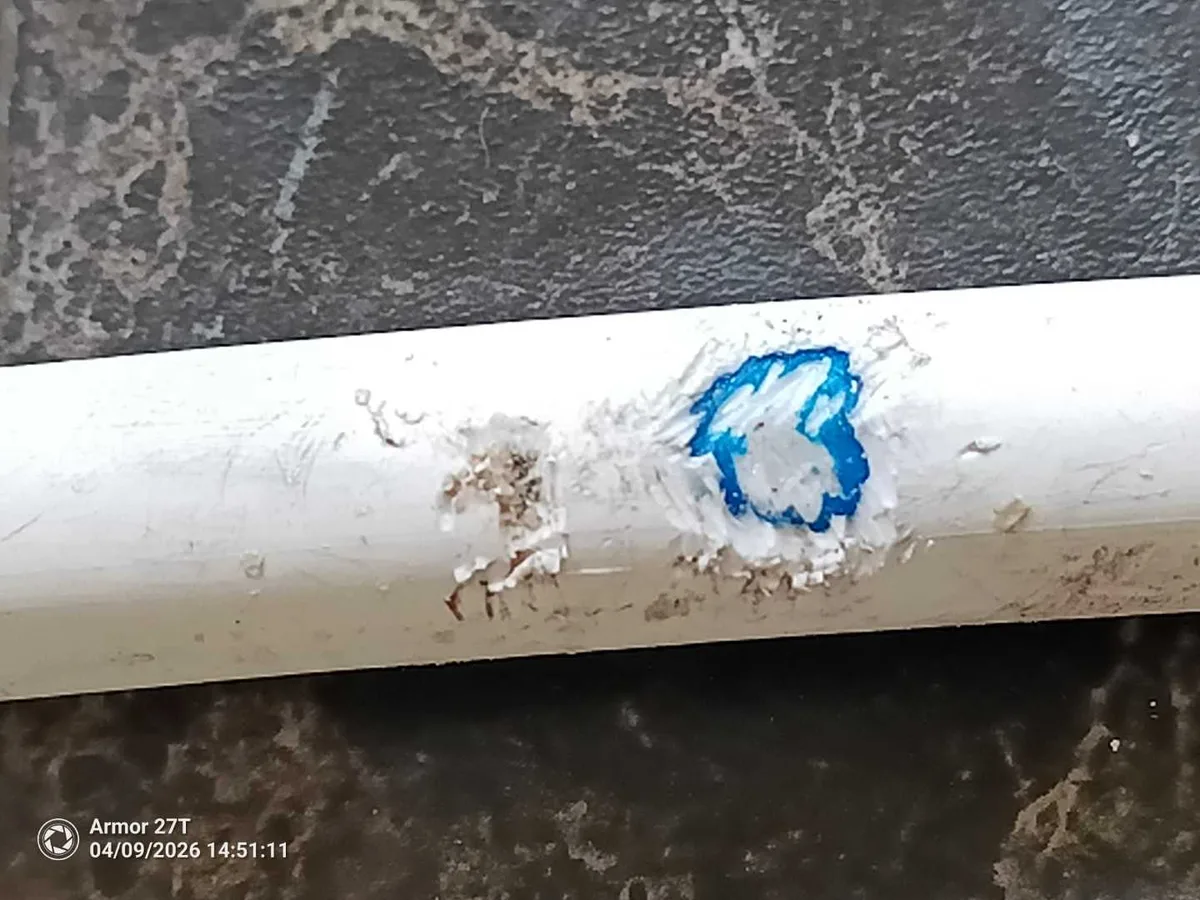

   Bricks were removed to expose the pipework. Evidence of rat damage was found, including scratch marks on the pipe, which had caused the leak.

8. 8

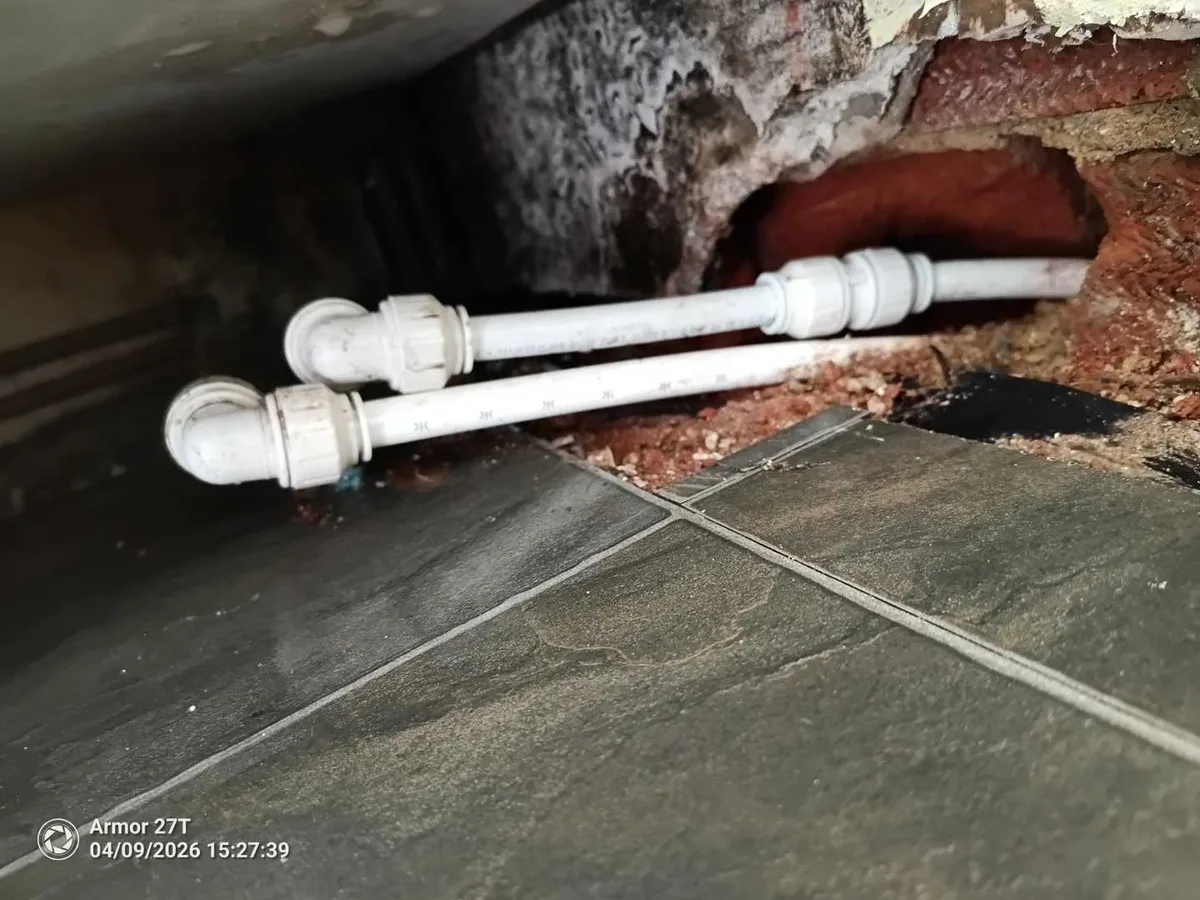

   Pipe Repaired and Re-Tested

   The damaged section of hot-water pipe was repaired using a 15mm pipe, fitting, and stop valve. A re-test was carried out and confirmed no further leaks were present.

Result & Outcome

The leak was traced to a hot-water pipe inside a brick wall in the kitchen area. Rat damage was the cause — scratch marks on the pipe were clearly visible once the brickwork was removed. The damaged section was repaired using a 15mm pipe, fitting, and stop valve, and a pressure test confirmed no further leaks remained anywhere in the system.

For a hot water leak detection job like this, where moisture is visible at the surface but the source is concealed within the building fabric, the layered approach — working from the meter inward and testing each section — proved essential. Without that process, the leak inside the brick wall could easily have been missed while floorboards and tank connections were investigated first.

With the repair completed and both the cold and hot water systems pressure-tested and confirmed leak-free, the property can now be assessed for any remedial drying or repair work to the affected walls and floor areas.
