Drainage Leak Detection in Otford

Symptoms

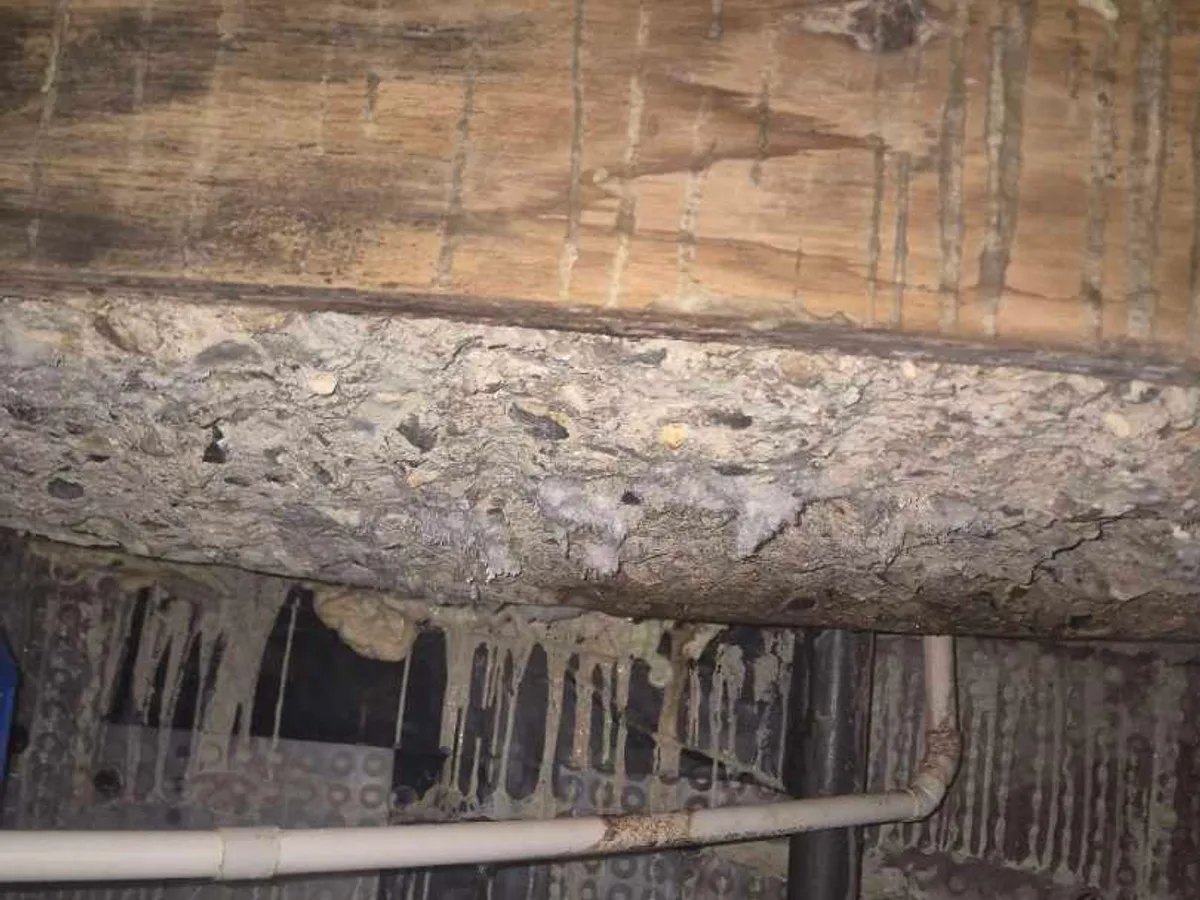

The property in TN13 is a semi-detached house spanning two floors. The occupants had noticed a continuous drip in the basement area, with visible water damage to the utility room flooring directly above.

Elevated moisture readings were confirmed in both the utility room floor and the basement upon arrival, indicating an active and ongoing leak rather than residual dampness from a historical issue.

The source was not immediately apparent. Because the drip appeared to originate from beneath the utility room, the investigation had to account for multiple possible causes — supply pipework, hot water pipework, or the drainage and waste system.

Drainage leak detection was the appropriate service given the symptoms, but all systems needed to be systematically ruled in or out before a definitive source could be confirmed.

The leak was active enough to produce visible dripping in the basement, which meant water had been tracking through the structure for some time. The affected utility room contained a washing machine, adding further complexity to access and investigation.

Methods Used

The investigation followed a systematic process of elimination across all pipework systems. Thermal imaging was applied first to inspect the hot pipework, producing no anomalies.

Pressure testing was then carried out on both hot and cold supply pipework, with no pressure loss detected. Tracer gas testing on the same systems returned no gas readings, effectively ruling out any leak from the pressurised supply side.

With the supply systems cleared, attention moved to the drainage system. An endoscope camera was used to visually inspect beneath the floor, confirming the presence of moisture in that void.

Tracer dye was then introduced into the drainage system — a standard step in drainage leak detection — and its appearance in the basement confirmed that the waste pipework was the source. The leak was traced to the corner of the utility room, requiring removal of the washing machine and excavation of a section of the floor to reach the damaged pipe.

Investigation Process

1. 1
   Arrival and initial observations

   Active dripping was noted in the basement and visible water damage was observed on the utility room flooring. Damp meter readings confirmed elevated moisture in both areas.

2. 2
   Thermal imaging of hot pipework

   Thermal imaging was carried out across the hot pipework. No temperature anomalies were detected, clearing the hot supply system as a potential source.

3. 3
   Pressure testing of hot and cold pipework

   Both hot and cold supply systems were pressure tested. No pressure loss was recorded on either system.

4. 4
   Tracer gas testing of supply pipework

   Tracer gas was introduced into the hot and cold pipework and the surface was monitored for escaping gas. No readings were detected, ruling out the pressurised supply side entirely.

5. 5
   Endoscope inspection beneath the floor

   An endoscope camera was used to inspect the void beneath the utility room floor, visually confirming the presence of moisture in that concealed space.

6. 6
   Tracer dye introduced into drainage system

   Tracer dye was introduced into the waste pipework. Its appearance in the basement confirmed the drainage system as the source of the leak.

7. 7
   Leak traced to utility room corner

   The leak was pinpointed to the corner of the utility room. The washing machine was removed and a section of the floor was excavated to access the damaged waste pipe.

8. 8
   Pipe repair completed

   The damaged section of waste pipe was replaced and a straight coupler was fitted using appropriate adhesive, restoring a watertight connection.

Result & Outcome

The leak was located in the waste pipework at the corner of the utility room, confirmed through tracer dye introduced into the drainage system. This is a precise, method-verified finding — the dye's appearance in the basement established beyond doubt that the drainage system was the source, not the pressurised supply pipework which had been fully cleared by pressure and tracer gas testing.

Access required removal of the washing machine and excavation of a section of the utility room floor. The damaged pipe section was replaced and a straight coupler was installed with adhesive, providing a secure and watertight repair. The drainage leak detection process on this job prevented further structural moisture ingress that would have continued undetected beneath the floor.

The affected areas will now require thorough drying to prevent secondary damage such as mould or further material deterioration. The customer is advised to review their building insurance policy for Trace and Access cover, as this type of investigation and repair work is commonly covered under that provision.
