Water Mains Leak Detection in Oldham

Symptoms

At a property in OL2, there were signs of unexplained water loss within the internal water system. Upon arrival, the engineer closed the internal stopcock and monitored the water meter.

Within just over six minutes, one litre of water had been consumed with no supply running — a clear indicator that water was escaping somewhere within the property's pipework.

This type of hidden loss is a common trigger for internal leak detection. Without visible signs of water damage at the surface, pinpointing the source requires systematic testing rather than assumption.

The scale of the meter movement pointed firmly toward an active leak rather than a minor drip or faulty fitting.

The pipework serving the kitchen area was the focus of concern, as the suspected mains supply route ran through that part of the property. The challenge was confirming the precise location without unnecessary disruption to flooring or fixtures.

Methods Used

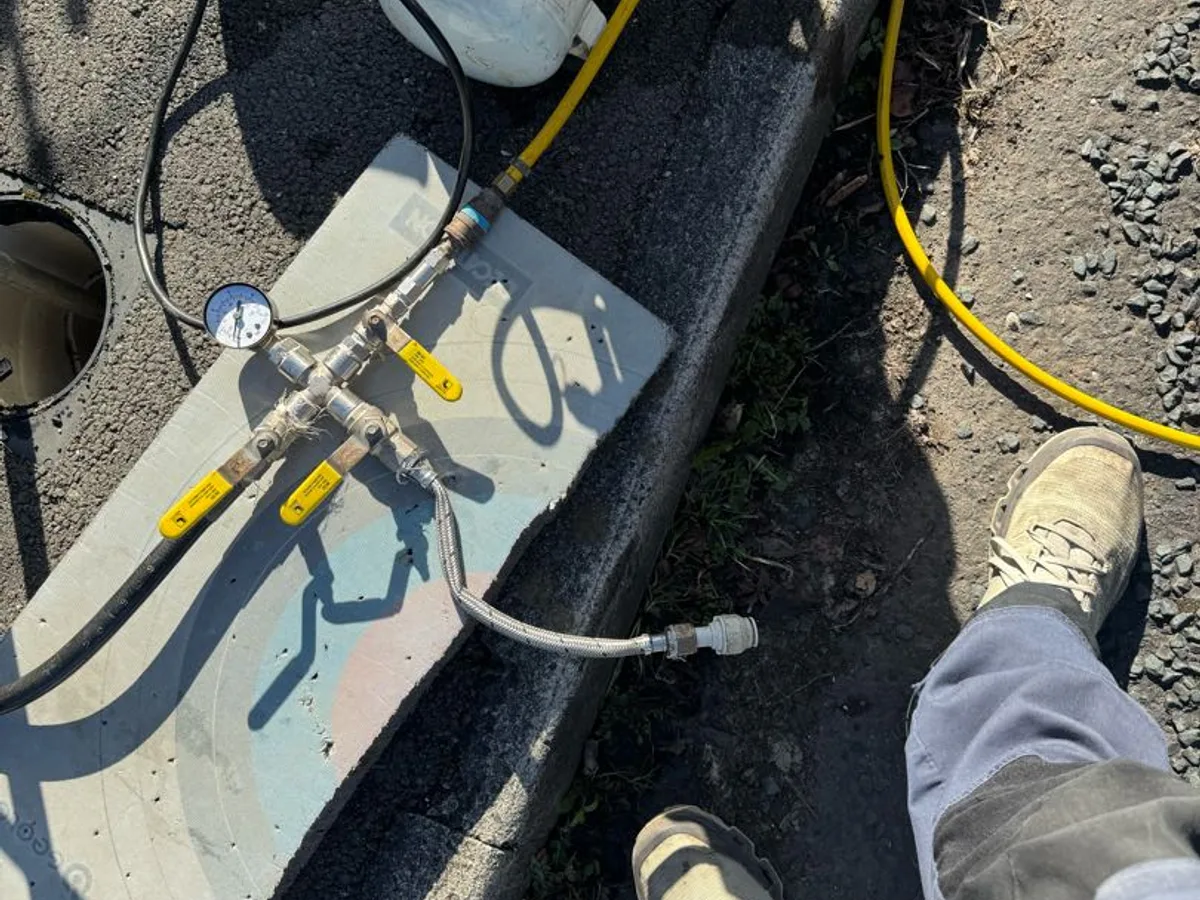

The investigation began with a pressure test across the internal system, which recorded a drop from 3 bar to zero in under two minutes. That rate of loss confirmed an active leak and justified proceeding with tracer gas testing.

Tracer gas was introduced into the pipework, and the suspected route of the mains supply was swept methodically using a calibrated detector. A positive detection was recorded specifically in front of the kitchen sink, with no readings elsewhere in the property.

Acoustic testing was then used to narrow the location further, amplifying leak noise through the floor structure to help pinpoint the source beneath the stopcock area. The combination of tracer gas detection and acoustic results gave a high-confidence location before any floorboards were lifted — which is exactly the standard internal leak detection process for concealed pipework in this type of property.

Investigation Process

1. 1
   Meter Monitoring

   On arrival, the internal stopcock was closed and the water meter observed. One litre of consumption was recorded in just over six minutes, confirming active water loss within the property.

2. 2
   Pressure Test

   A pressure test was carried out across the internal system, showing a drop from 3 bar to zero within two minutes — confirming the presence of a leak and establishing the basis for further investigation.

3. 3
   Tracer Gas Introduction and Sweep

   Tracer gas was introduced into the pipework, and the suspected mains supply route was swept with a specialist detector. A confirmed detection was recorded in front of the kitchen sink, with no readings at any other location.

4. 4

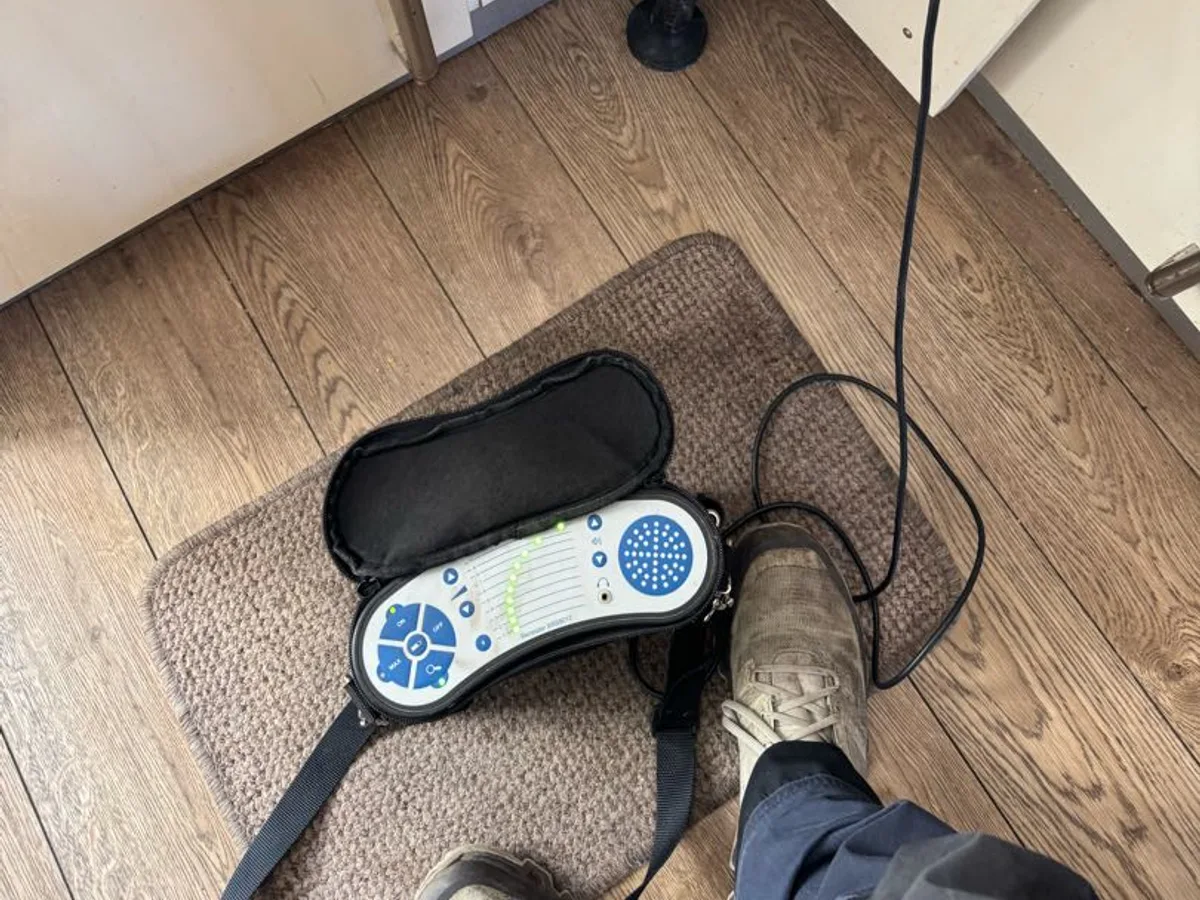

   Acoustic Testing

   Acoustic methods were applied to amplify and isolate leak noise, with combined results pointing specifically to the area beneath the internal stopcock.

5. 5
   Customer Authorisation and Floor Access

   Following customer authorisation to proceed, the washing machine was relocated and the flooring lifted. Floorboards were cut back precisely to expose the affected pipework.

6. 6

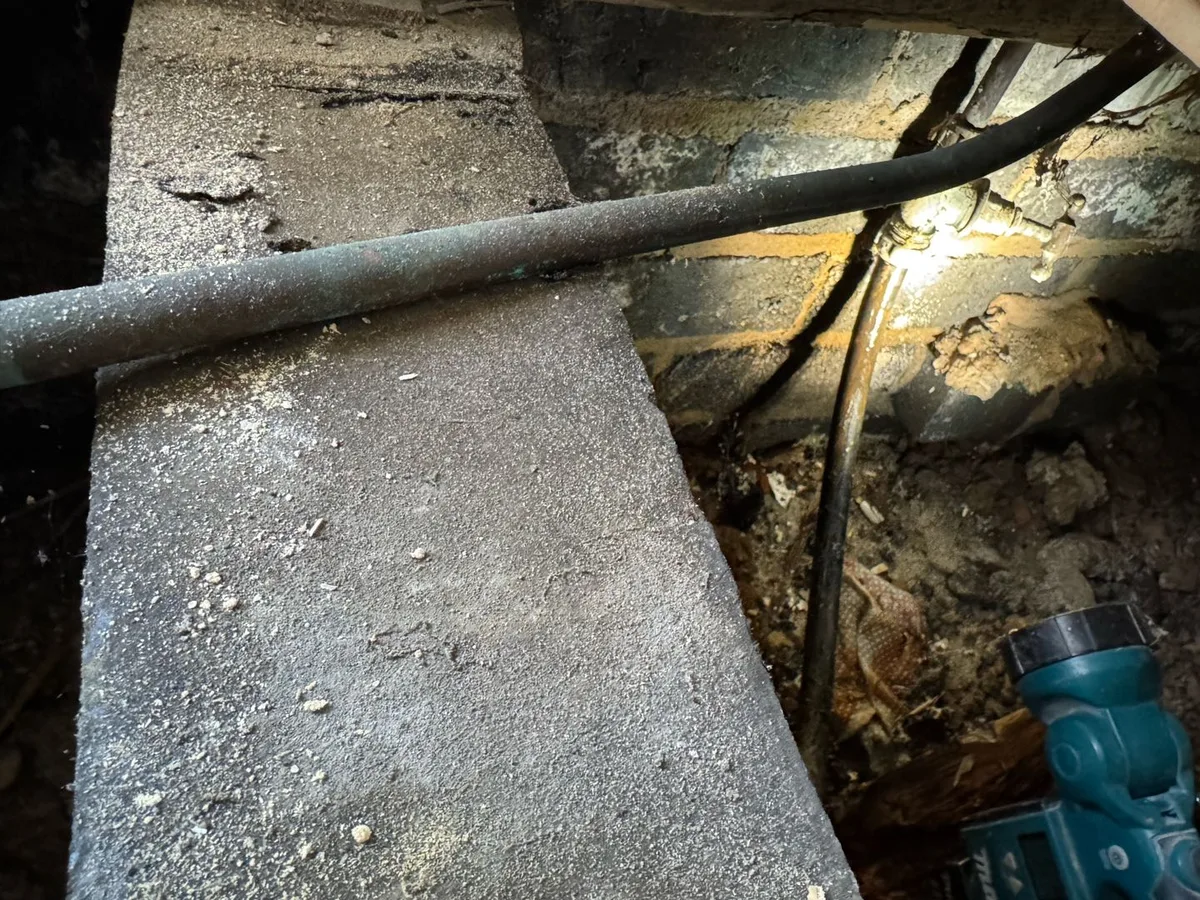

   Visual Identification of Leak

   With the floor open, the damaged section of pipework was visually identified and confirmed as the source of the leak.

7. 7

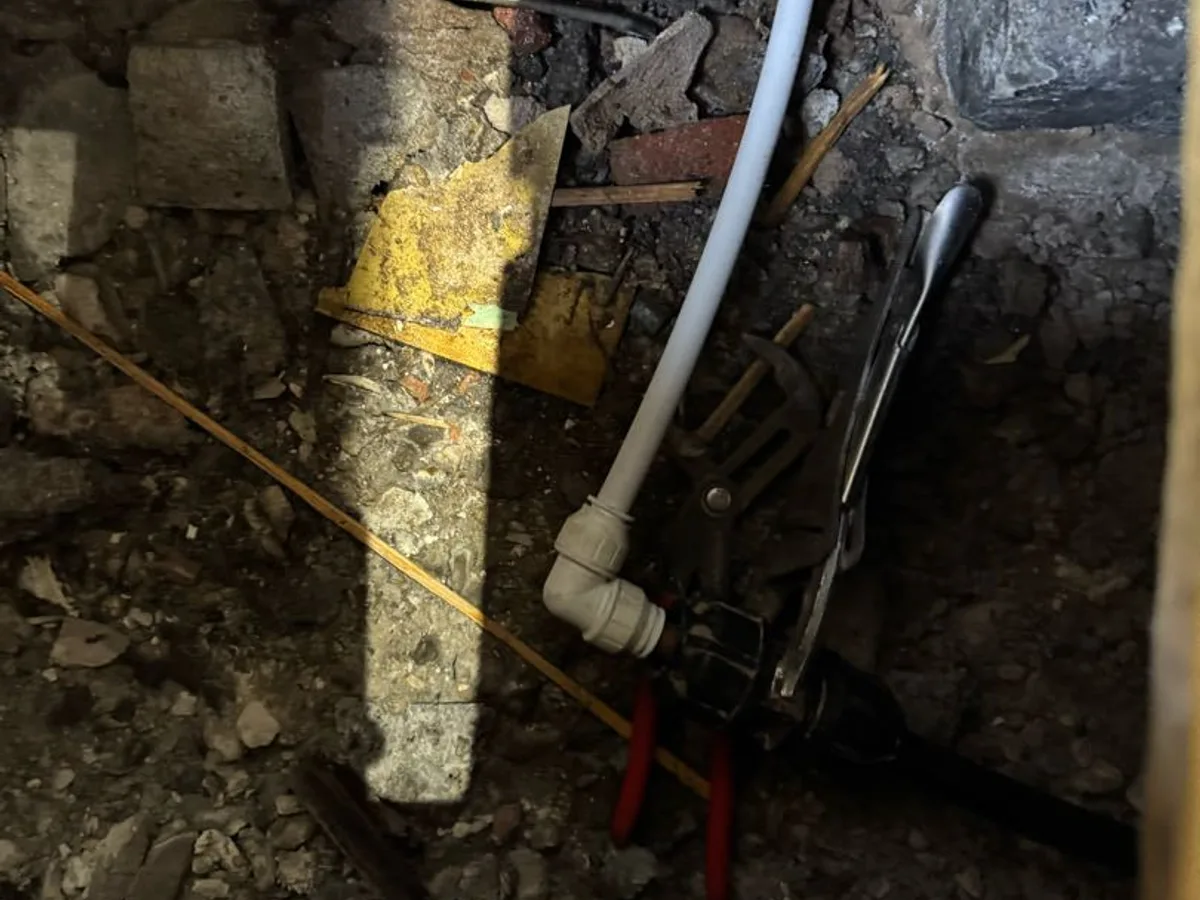

   Repair Carried Out

   The damaged pipe section was removed and replaced using transitional couplings and barrier pipe. The repair was pressure tested at 5 bar for 60 minutes with no pressure drop recorded, confirming a sound repair.

8. 8
   Water Supply Reinstated

   The water supply was turned back on and run through all outlets until clear, with the repair confirmed as holding under normal operating conditions.

Result & Outcome

The leak was located beneath the internal stopcock in the kitchen area, confirmed through a combination of tracer gas detection and acoustic testing before any floorboards were opened. Once the floor was lifted and the pipework exposed, the damaged section was visually identified, removed, and replaced with new barrier pipe and transitional couplings.

The repaired section was pressure tested at 5 bar for 60 minutes with no pressure drop, providing a documented confirmation that the repair was sound. This level of post-repair verification is standard practice in internal leak detection work, ensuring the fix is confirmed rather than assumed.

The water supply was reinstated and run through all outlets until clear. The floorboards have been cut back to allow access and will require refitting by a joiner — a separate recommendation has been made for that work to be completed to restore the kitchen floor to its original condition.
