Central Heating Leak Detection in Bedford

Symptoms

The occupants of a property in MK41 noticed that the living room ceiling had become damp and the paintwork had changed colour — a visible sign that moisture had been accumulating over time. The central heating system was found to be at 0 bar, indicating it had lost pressure, and the system serves 14 radiators throughout the property.

These combined signs pointed clearly to a leak somewhere within the heating pipework.

Because the living room ceiling was affected and the space directly above it is a bedroom, the source of the leak was suspected to be within the first-floor floor construction rather than an exposed pipework run. Pinpointing the exact location required a structured central heating leak detection investigation rather than any speculative opening up of the structure.

The loss of system pressure and the damp ceiling together indicated an active leak that had likely been present for some time, allowing moisture to saturate the ceiling material and cause the visible paint discolouration.

Methods Used

The central heating leak detection process began with thermal imaging of the heating pipework to identify the pipe routes and any areas of heat loss. No thermal anomalies were detected, so the system was drained using an air compressor and a pressure test was carried out.

The test failed, confirming a leak was present within the pipework. Attention then shifted to the damp living room ceiling, where a damp meter recorded elevated readings.

An acoustic inspection of the bedroom floor above identified an anomaly consistent with escaping water. A tracer camera was then used to visually confirm the presence of a wet area beneath the floorboards.

With the leak location established, the carpet, underlay, and floorboards were lifted and cut to expose the affected pipework for repair.

Investigation Process

1. 1
   Thermal Imaging of Pipework

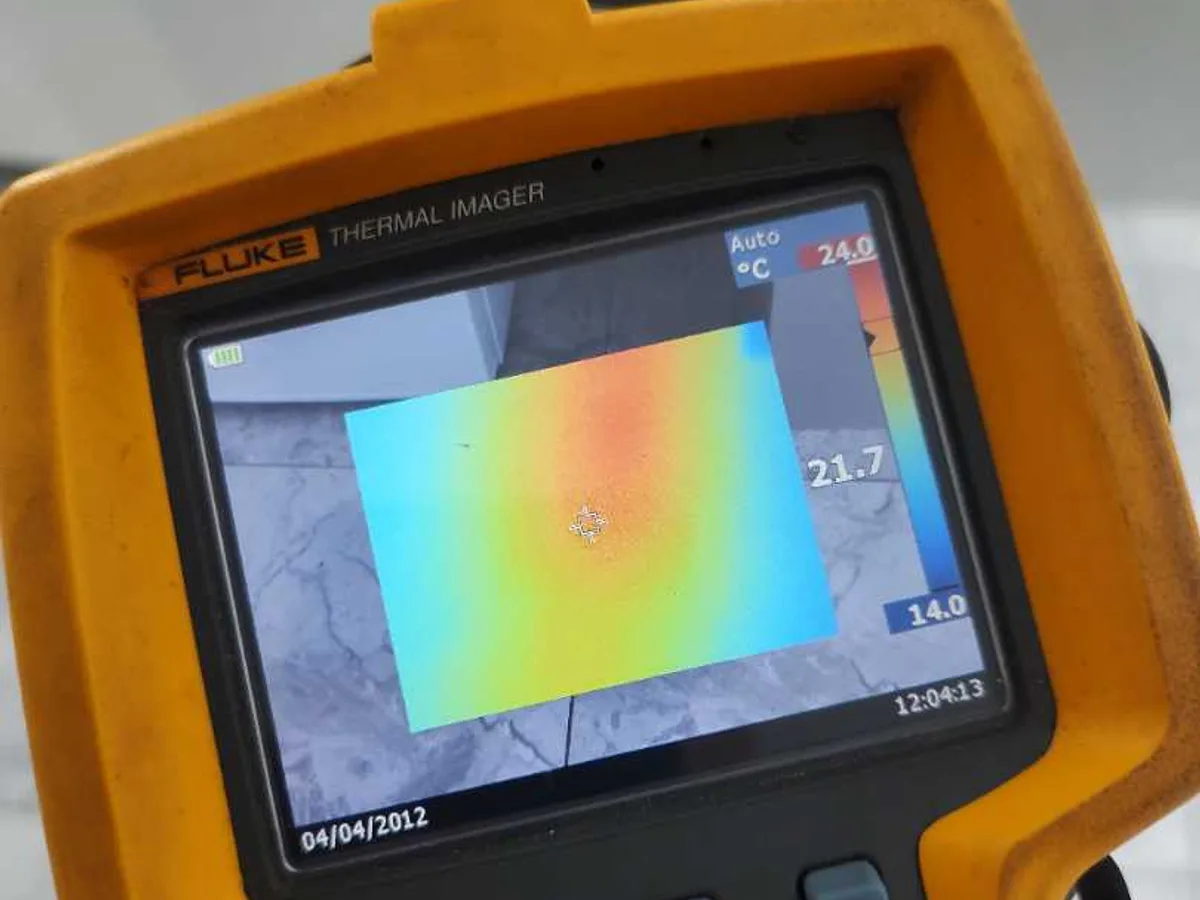

   Thermal imaging was carried out across the heating pipework to identify pipe routes and detect any anomalies. No thermal anomalies were found.

2. 2
   System Drained and Pressure Tested

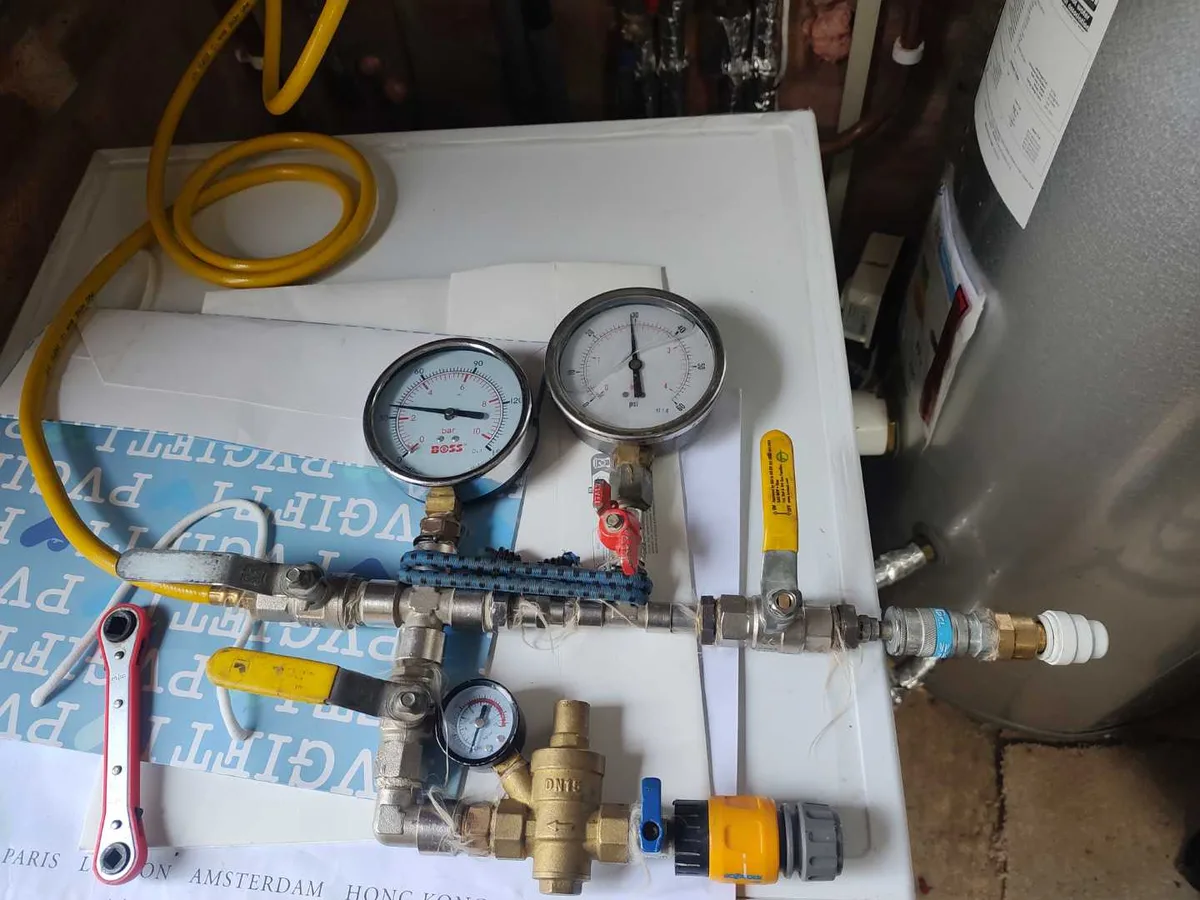

   The heating system was drained using an air compressor and a pressure test was conducted. The test failed, confirming a leak was present within the pipework.

3. 3
   Damp Meter Survey of Living Room Ceiling

   High damp readings were recorded on the living room ceiling, indicating sustained moisture ingress from above.

4. 4
   Acoustic Inspection of Bedroom Floor

   An acoustic inspection was carried out on the bedroom floor directly above the damp ceiling, and an anomaly was detected consistent with a water leak.

5. 5
   Tracer Camera Confirmation

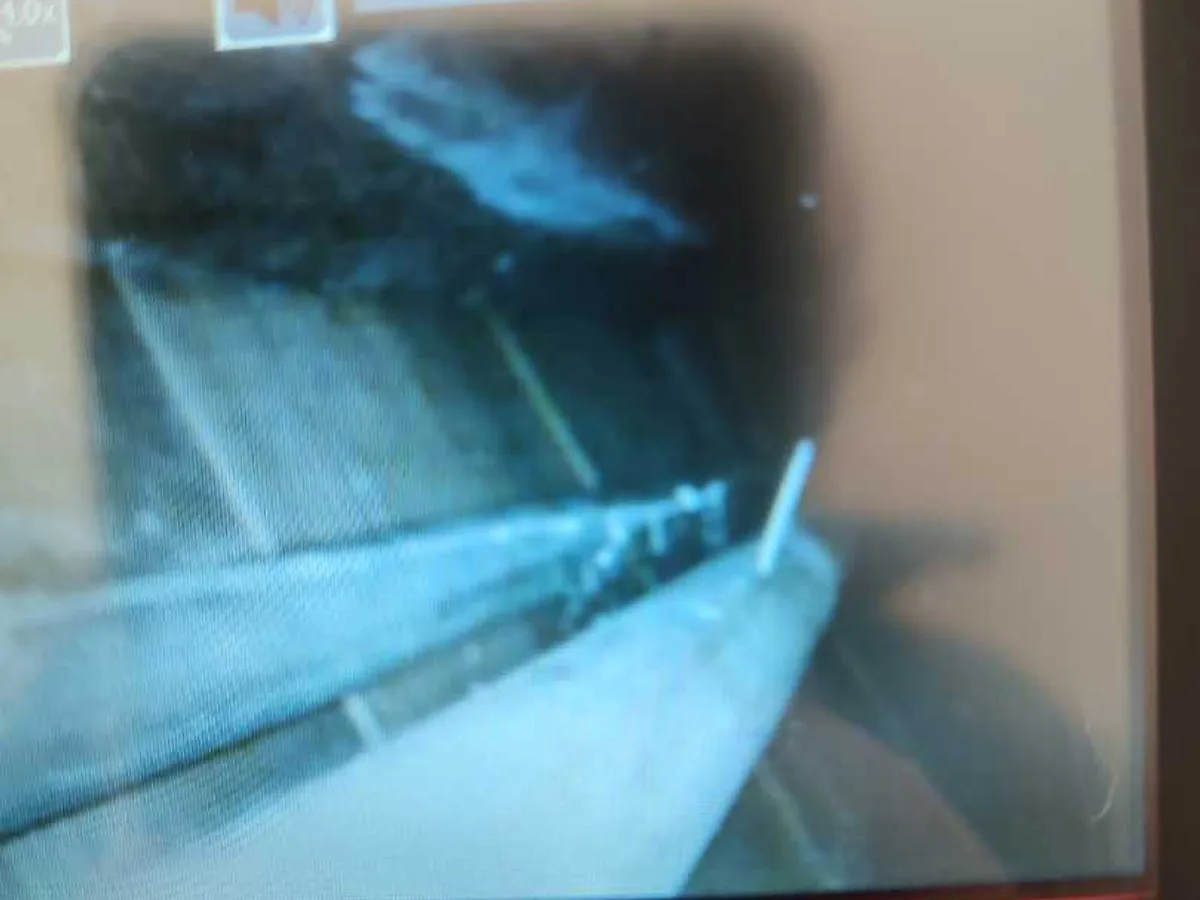

   A tracer camera was deployed beneath the floorboards to visually confirm the presence of a wet area at the location identified acoustically.

6. 6
   Floorboards Lifted and Pipework Exposed

   The carpet, underlay, and floorboards were lifted and cut to access the affected section of pipework beneath the bedroom floor.

7. 7
   Leak Source Identified

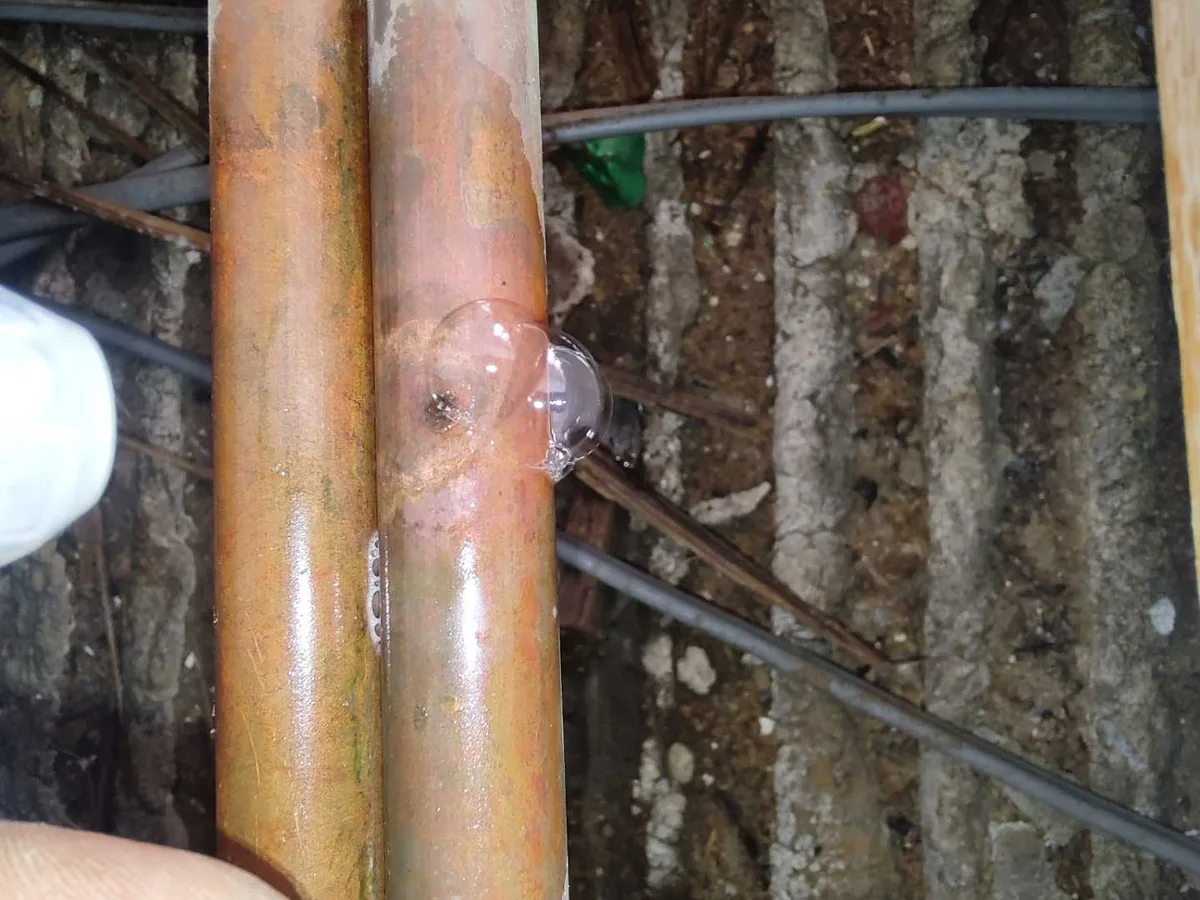

   Multiple nails were found to have penetrated the floorboards and punctured the copper pipe below, causing a pinhole leak.

8. 8
   Damaged Pipework Replaced

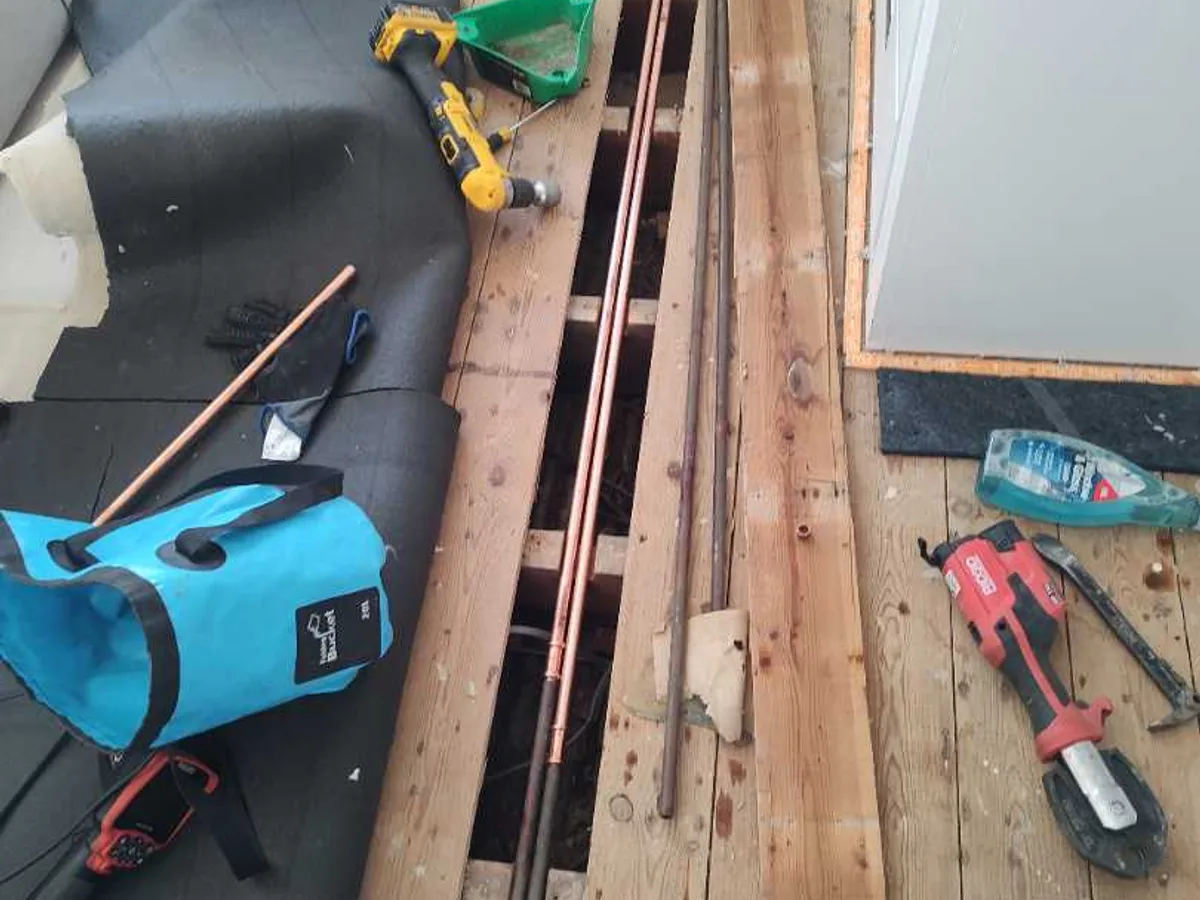

   The damaged section of copper pipe was removed and replaced using two inhibitors, one length of 15 mm copper pipe, and new fittings.

9. 9
   Post-Repair Pressure Test

   The repaired heating pipework was pressure tested at 2 bar for one hour. The system passed, confirming no further leaks were present at the time of testing.

Result & Outcome

The leak was located beneath the bedroom floor at a point where multiple nails driven through the floorboards had pierced the copper heating pipe, creating a pinhole leak. This type of damage is not visible from the surface and would not have been found without a structured central heating leak detection process combining pressure testing, acoustic inspection, and camera investigation.

The damaged section of pipework was cut out and replaced with a new length of 15 mm copper pipe and fittings, with two inhibitors also applied. Following the repair, the system was pressure tested at 2 bar for one hour and passed, confirming the integrity of the repaired pipework at the time of testing.

A report has been prepared for submission to the insurance company. The customer now has a documented record of the leak cause, location, investigation method, and completed repair.
